2-power 2P-LTN156AT20-S01 - displej - 39,6 cm (15.6") - WXGA

When your laptop display cracks, dims, or develops dead pixels, this 2-POWER 2P-LTN156AT20-S01 replacement screen restores crisp visuals for everyday computing. Compatible with a wide range of 15.6-inch notebooks that use a 40-pin LVDS connection, it’s a practical fix for students, office workers, and home users who need a reliable display without replacing the whole machine.

Key specifications

• Screen size: 15.6 inches (39.6 cm) diagonal
• Resolution: WXGA (1366 x 768 pixels), 16:9 aspect ratio
• Panel type: TN (Twisted Nematic) with LED backlight
• Surface: Glossy finish

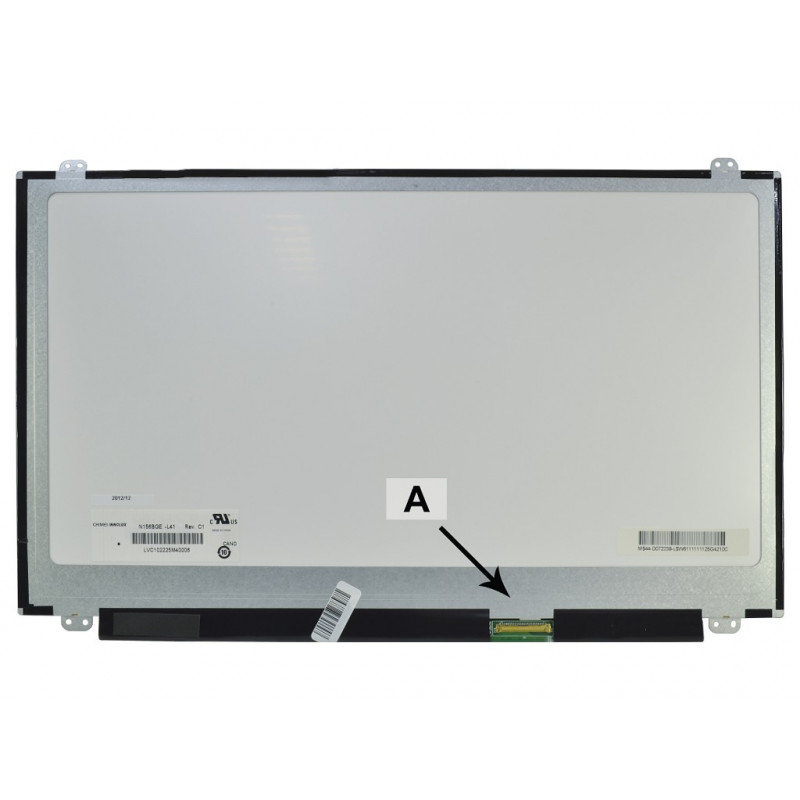

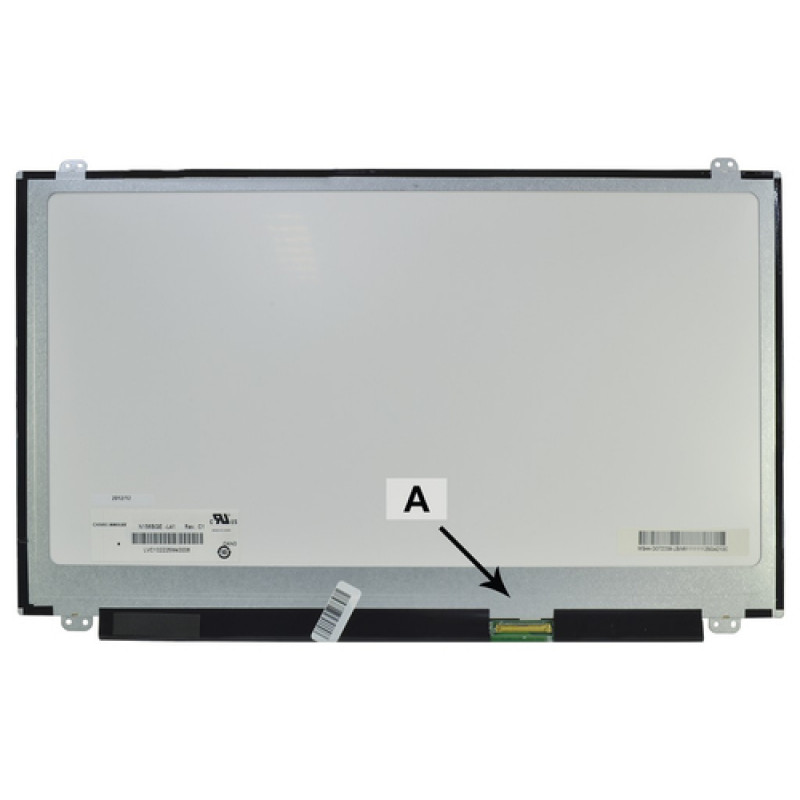

• Connector: 40-pin LVDS, positioned bottom left (viewed from back)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² typical
• Contrast ratio: 400:1 typical
• Response time: 8 ms typical
• Viewing angles: 45° left/right, 20° up, 40° down
• Condition: New
• Compatibility: Universal replacement for 15.6" WXGA 40-pin LVDS LED screens

Why choose it

This panel is built to match the original Samsung LTN156AT20 specifications, ensuring consistent colour and brightness. The LED backlight delivers energy-efficient operation, while the glossy coating enhances perceived contrast for sharper text and images. Installation is straightforward for technicians familiar with laptop screen replacement, and the standard 40-pin LVDS interface ensures broad compatibility with many popular laptop models.

Ideal use cases

• Replacing a damaged or faulty 15.6" WXGA laptop screen
• Upgrading from a dim or low-quality panel to restore original clarity
• Refurbishing used laptops for resale or donation
• DIY repair projects for cost-conscious users

Good to know

Before ordering, verify your laptop’s screen size, resolution, connector type (40-pin LVDS), and backlight type (LED). This screen is not compatible with 30-pin or eDP connections. Handle the panel by its edges to avoid fingerprints or pressure damage, and test before final assembly. The product includes only the LCD panel; cables, brackets, and tools are not included.
