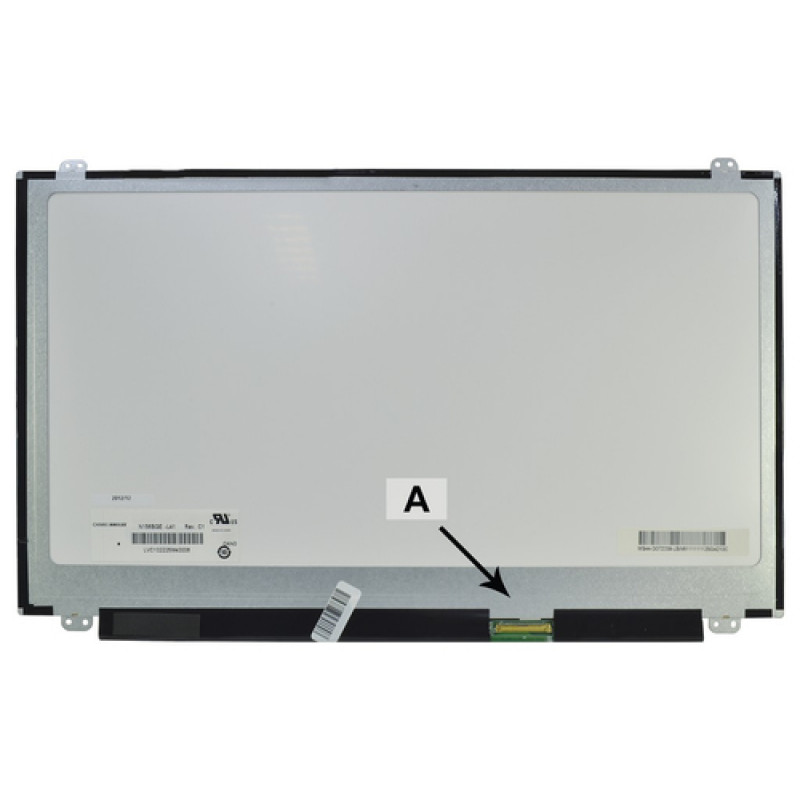

2-power 2P-LTN156AT30-201 - displej - 39,6 cm (15,6") - WXGA

Replace a failing laptop display with the 2-POWER 2P-LTN156AT30-201, a 15.6-inch WXGA panel that mirrors the original Samsung LTN156AT30 specifications without the OEM price tag. Unlike generic aftermarket screens with mismatched connectors or dull backlights, this unit uses a 40-pin LVDS interface positioned bottom-left and a glossy TN surface that preserves the crisp, vibrant look of the original. It is built for technicians and DIY upgraders who need a dependable, drop-in replacement for a wide range of laptops.

Highlights

• Native 1366 x 768 (WXGA HD) resolution with 16:9 aspect ratio
• LED backlight delivers 220 cd/m² brightness for clear indoor viewing
• 40-pin LVDS connector on the bottom left simplifies installation
• Glossy TN panel with 500:1 contrast and 8 ms response time
• Compatible with many laptops using 15.6" WXGA 40-pin LVDS panels

In daily use

Whether you are repairing a notebook for a client or upgrading your own machine, this screen offers a straightforward swap. The TN technology provides fast pixel response, making it suitable for everyday productivity, web browsing, and video playback. The glossy finish enhances perceived contrast and color saturation, though it may reflect ambient light in bright environments. With a typical power draw of just 4.5 W, it helps maintain battery efficiency. The panel's dimensions (359.3 x 209.5 x 3.2 mm) and side-bracket mounting align with standard 15.6-inch laptop chassis, reducing the risk of fitment issues.

Full specifications

• Display Size: 15.6 inches (39.6 cm)
• Native Resolution: 1366 x 768 (WXGA HD)
• Aspect Ratio: 16:9
• Backlight Technology: LED
• Display Technology: TFT Active Matrix LCD
• Surface Finish: Glossy
• Connector Type: 40-pin LVDS

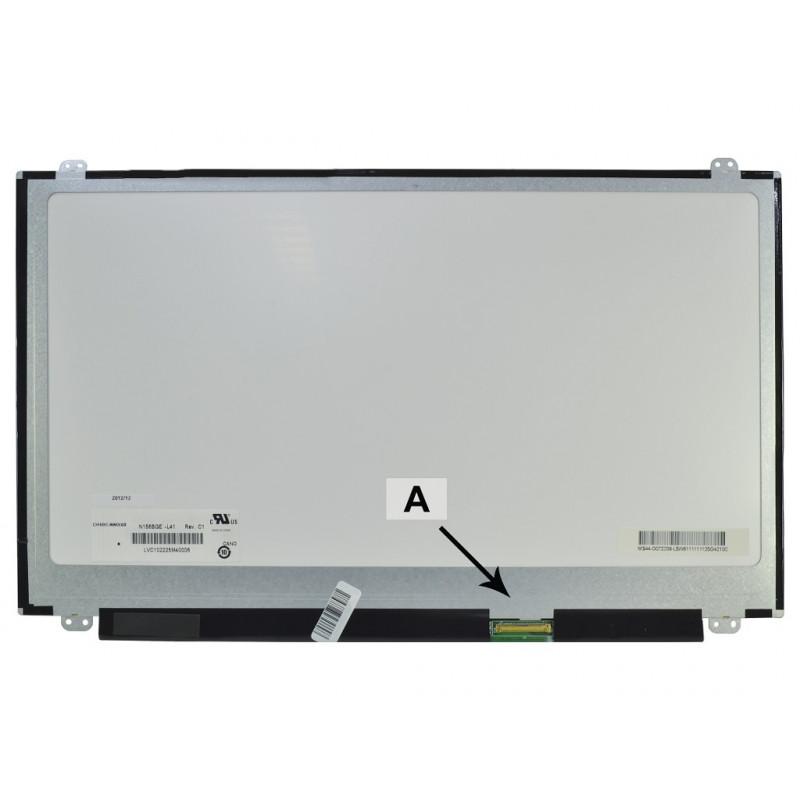

• Connector Position: Bottom Left (when facing the back of the panel)
• Refresh Rate: 60 Hz
• Brightness (Typical): 220 cd/m² (nits)
• Contrast Ratio (Typical): 500:1
• Response Time (Typical): 8 ms
• Panel Type: TN (Twisted Nematic)
• Color Support: 262,144 colors (6-bit)
• Viewing Angle (H/V): 45°/45°/20°/40° (Left/Right/Up/Down)
• Power Consumption (Max): 4.5 W
• Panel Dimensions (WxHxD): 359.3 x 209.5 x 3.2 mm
• Mounting Type: Side Brackets
• Condition: New
• Compatibility: Universal for laptops requiring 15.6" WXGA 40-pin LVDS panels (e.g., Samsung LTN156AT30 compatible)

Final note

This 2-POWER panel offers a cost-effective, reliable alternative to original screens, ensuring your laptop returns to full functionality with minimal hassle.
