2-power 2P-N156BGE-L41REV.C3 - 39,6 cm (15,6") - WXGA

When your laptop screen cracks or dims, this 2-POWER 15.6-inch WXGA panel restores a bright, sharp display. It's a direct replacement for the N156BGE-L41 Rev.C3, fitting many notebooks with a 40-pin LVDS connector on the bottom right. The glossy LED-backlit surface delivers vivid colours and clear text, making it ideal for office work, web browsing, and video streaming.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA, HD Ready)
• Panel type: TFT-LCD with LED backlight
• Aspect ratio: 16:9 widescreen
• Surface finish: Glossy

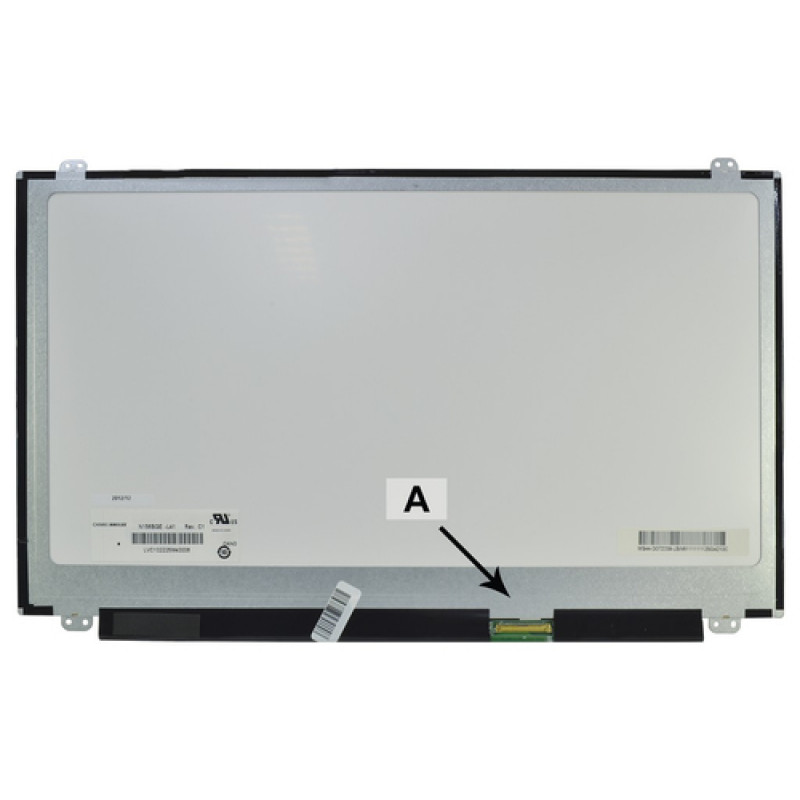

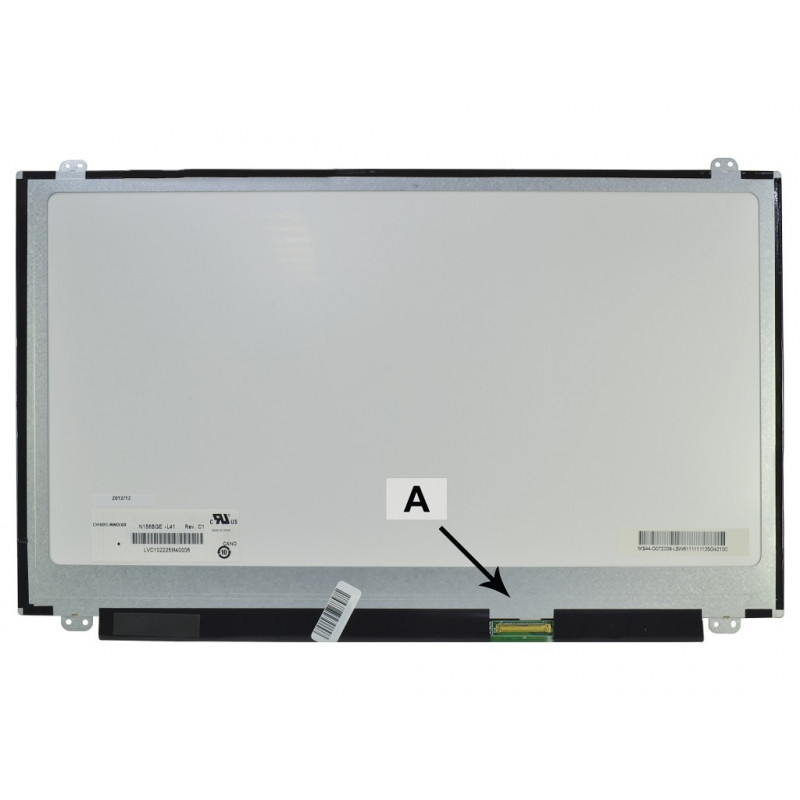

• Connector: 40-pin LVDS, bottom right position
• Brightness: 220 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Refresh rate: 60 Hz
• Colour support: 262,144 colours (6-bit)
• Pixel density: ~100 PPI
• Backlight life: 10,000 hours
• Mounting: Side brackets

Why choose it

This panel matches the original specifications, ensuring compatibility and consistent performance. The LED backlight is energy-efficient and long-lasting, while the glossy finish enhances colour saturation for a more vibrant viewing experience. Installation is straightforward for technicians familiar with laptop disassembly.

Ideal use cases

• Replacing a damaged or faulty laptop screen
• Upgrading from a lower-resolution or dimmer panel
• Refurbishing used notebooks for resale
• DIY repair projects

Good to know

Always verify your laptop's exact panel model before ordering. This screen is designed for models that originally used the N156BGE-L41 Rev.C3 or compatible panels with the same connector and mounting. Handle with care during installation to avoid damaging the delicate LVDS connector or the glass surface.
