2-power 2P-N156HCA-EBA.REVC1 - 39,6 cm (15,6")

This 15.6-inch display panel stands out from generic replacements by combining a crisp Full HD resolution with an IPS-grade viewing experience and a practical matte finish. The 2-Power 2P-N156HCA-EBA.REVC1 delivers accurate colours and wide viewing angles, making it a dependable upgrade for laptops that originally shipped with a 30-pin eDP connection.

Highlights

• 15.6-inch (39.6 cm) Full HD 1920 x 1080 resolution for sharp, detailed visuals
• IPS technology with 85° horizontal and vertical viewing angles for consistent image quality from any position
• Matte anti-glare surface reduces reflections and eye strain in bright environments
• LED backlight with 250 cd/m² brightness and 45% NTSC colour gamut for vibrant, true-to-life colours
• Standard 30-pin eDP connector ensures broad compatibility with popular laptop models
• Premium A+ grade panel with 700:1 contrast ratio and 25 ms response time for smooth everyday use

In daily use

Whether you are editing documents, streaming video, or browsing the web, this panel offers a comfortable viewing experience. The matte coating keeps glare at bay, while the 16:9 aspect ratio is ideal for both productivity and entertainment. With a 60 Hz refresh rate and 262K colour depth, it handles typical laptop tasks without compromise.

Full specifications

• Brand: 2-Power
• Model: 2P-N156HCA-EBA.REVC1
• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching)
• Surface finish: Matte (Anti-Glare)
• Backlight type: LED

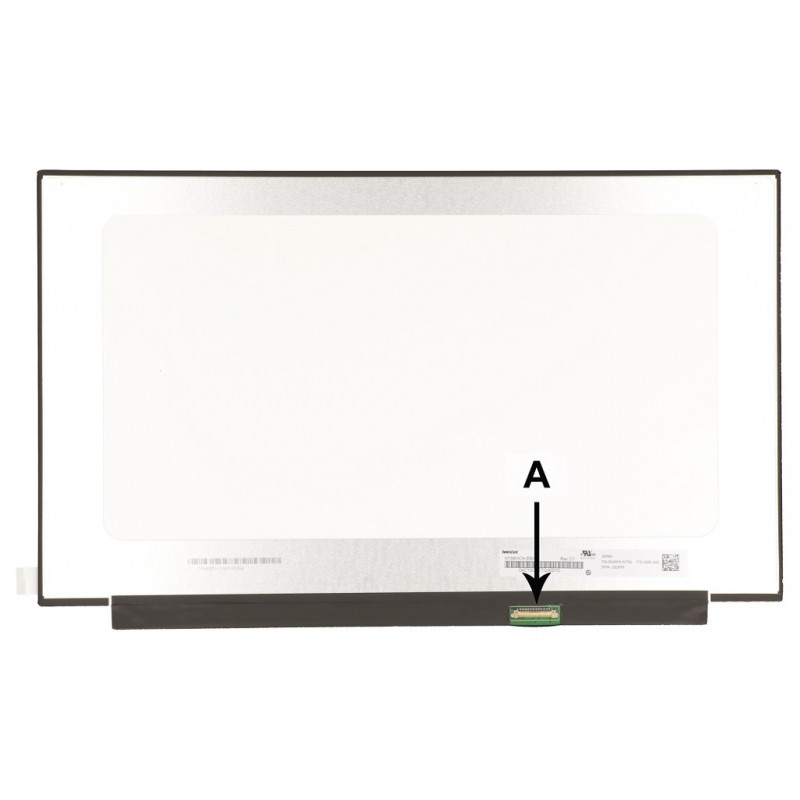

• Connector type: 30 pin eDP (Embedded DisplayPort)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 250 cd/m² (nits)
• Color gamut: 45% NTSC
• Viewing angle (H/V): 85°/85°
• Technology: a-Si TFT-LCD
• Grade: A+ (Premium Grade)
• Response time: ~25 ms (Grey-to-Grey)
• Display colours: 262K (6-bit)
• Contrast ratio: 700:1
• Voltage: 3.3V
• Compatibility: Universal for laptops requiring 15.6" Full HD 30-pin eDP display

Final note

When replacing a laptop screen, precision matters. The 2-Power 2P-N156HCA-EBA.REVC1 is engineered to meet or exceed original specifications, ensuring a seamless fit and reliable performance. Always verify your laptop's connector type and mounting dimensions before ordering.
