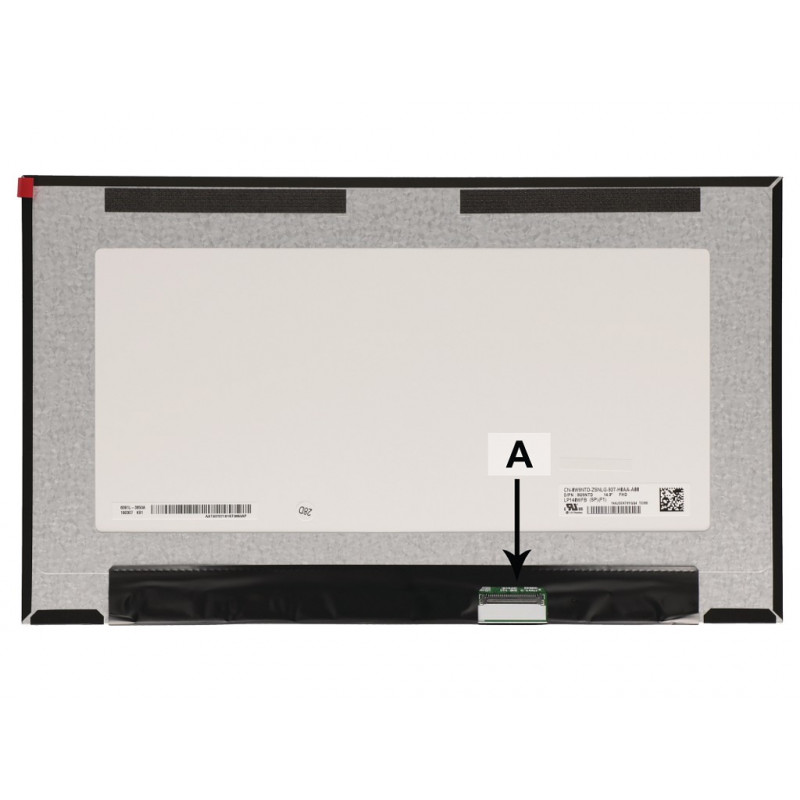

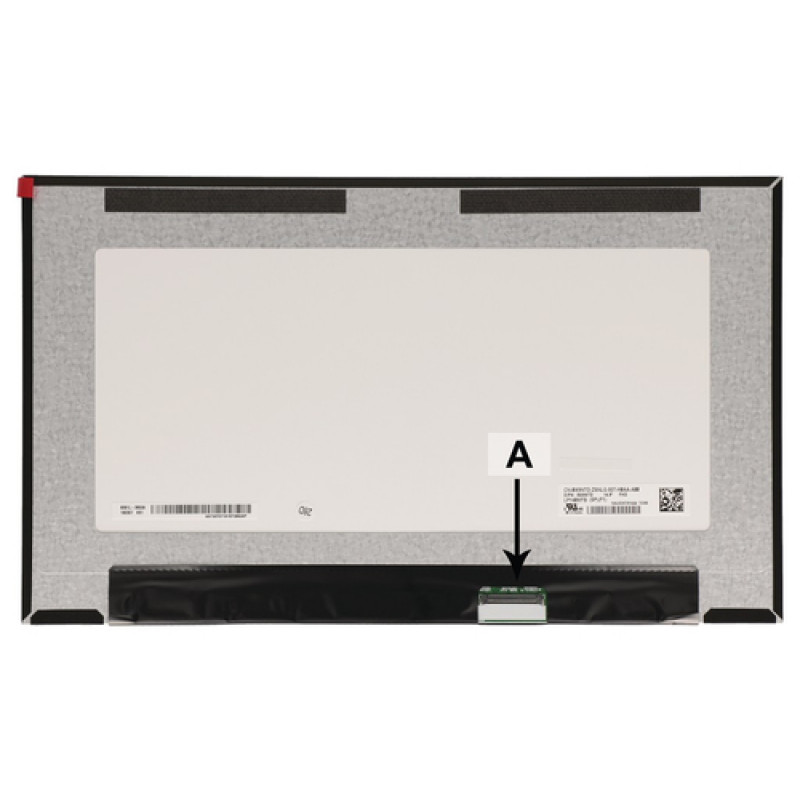

2-power 2P-NV140FHM-T02 - 35,6 cm (14") - dotyková obrazovka

When a field technician cracks their laptop screen on a service call, the 2-POWER 2P-NV140FHM-T02 gets the device back in action the same day. This 14-inch panel is a direct replacement for the Innolux NV140FHM-T02, offering the same 1920 x 1080 resolution, IPS technology, and 10-point touch capability as the original. Installation is straightforward thanks to the standard 30-pin eDP connector, and the anti-glare surface keeps reflections at bay even under bright workshop lighting.

Key specifications

• Display diagonal: 35.6 cm (14 inches)
• Native resolution: 1920 x 1080 pixels (Full HD)
• Panel type: IPS (In-Plane Switching)
• Touchscreen: Yes (10-point capacitive)
• Backlight: WLED (White LED)
• Aspect ratio: 16:9
• Surface treatment: Anti-glare (matte)
• Connector: 30-pin eDP (Embedded DisplayPort)
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Viewing angles: 85° horizontal / 85° vertical (typical)
• Colour gamut: 45% NTSC (typical)
• Contrast ratio: 700:1 (typical)

Why choose it

This panel matches the original Innolux NV140FHM-T02 specification exactly, so there are no surprises with colour accuracy or touch response. The IPS technology delivers consistent colours from wide viewing angles, making it suitable for collaborative work or presentations. The anti-glare coating reduces eye strain during long sessions, and the 250-nit brightness is adequate for indoor use in offices, schools, or repair shops.

Ideal use cases

• Replacing a damaged or faulty screen in laptops that originally shipped with the Innolux NV140FHM-T02
• Upgrading a non-touch laptop to a touch-enabled display (if the system supports it)
• Refurbishing corporate laptops for resale or redeployment
• DIY repair projects for tech-savvy users

Good to know

The panel is a bare LCD module without a mounting frame or bezel; reuse the existing brackets and adhesive from the original screen. The eDP connector is standard, but verify the cable length and position before ordering. Handle the panel by its edges and avoid touching the surface to prevent damage to the touch digitizer. This product is a third-party replacement and is not manufactured by Innolux, but it is designed to be fully compatible with the NV140FHM-T02.
