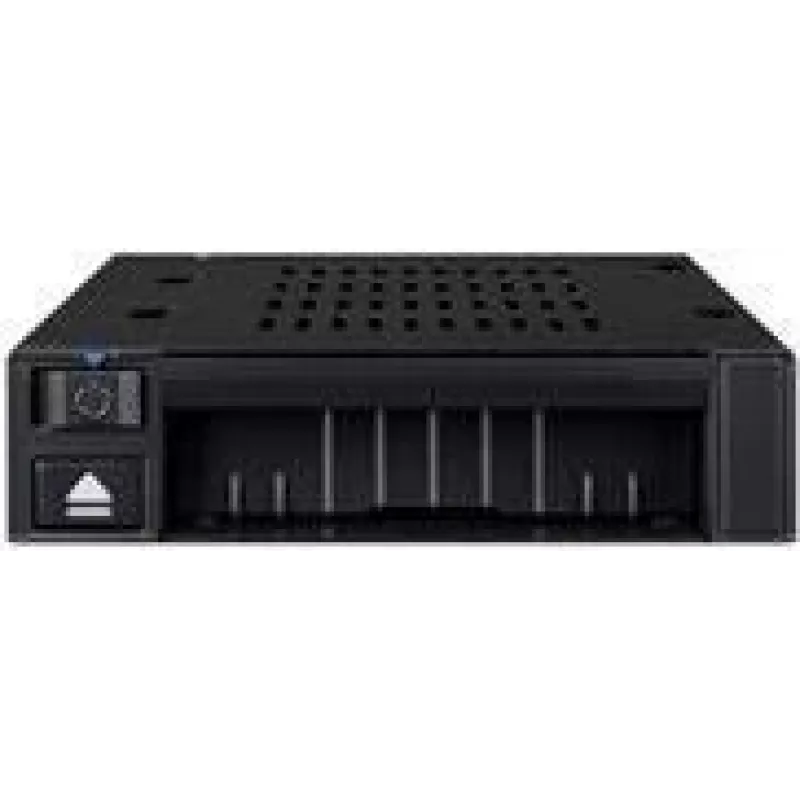

3,5-palcový adaptér šachty pre 2,5-palcové U.2-NVMe (PCIe 4.0) - icy dock MB021VP-B

The icy dock MB021VP-B is a 3.5" drive bay adapter designed to accept a single 2.5" U.2 NVMe SSD and provide a PCIe 4.0 connection interface. It allows installation of a U.2 NVMe drive into a standard 3.5" bay, securing the drive mechanically and aligning the U.2 connector for a direct PCIe 4.0 link. The adapter is intended for desktops, workstations, or servers that lack native U.2 bays but support PCIe 4.0 NVMe devices through appropriate cabling or host interfaces.

Advantages

The adapter offers a simple mechanical solution for integrating a 2.5" U.2 NVMe SSD into a 3.5" bay while preserving proper connector alignment for PCIe 4.0 performance. It provides a stable mounting point to reduce drive movement and potential connector strain, helping maintain reliable electrical contact. The design focuses on compatibility with standard 3.5" drive bays and on facilitating installation of high-speed NVMe storage in systems without native U.2 support.

Suitable for

• Upgrading a desktop or workstation to add a 2.5" U.2 NVMe SSD where only 3.5" bays are available
• Integrating high-speed PCIe 4.0 NVMe storage into servers lacking U.2 mounting points
• Enclosures or chassis retrofits that require mechanical adaptation from 3.5" bays to 2.5" U.2 drives

Key specifications

• Form factor adapter: fits into a standard 3.5" drive bay and accepts one 2.5" U.2 NVMe SSD
• Interface compatibility: designed for U.2 NVMe drives with PCIe 4.0 signal path support when used with appropriate system cabling and host support
• Mounting: secure mechanical mounting to reduce movement and align the U.2 connector
• Intended systems: desktop PCs, workstations, and servers without native U.2 bays

How to use

Install the 2.5" U.2 NVMe SSD into the adaptor and secure it according to the adapter's mounting points. Slide the adapter into an available 3.5" drive bay and fasten it to the chassis using the bay's screws. Connect the system-side U.2/PCIe cabling or host adapter to provide a PCIe 4.0 link between the drive and motherboard or host controller, ensuring the host supports NVMe over PCIe 4.0. After installation, verify that the drive is detected in the system firmware or operating system and, if required, initialize and format the drive before use.

Recommendations

For optimal performance, use the adapter in systems with host support for PCIe 4.0 and NVMe drives. Ensure cabling and host connectors are compatible with U.2 NVMe devices. Secure mounting and correct connector seating reduce the risk of intermittent connections; check that chassis drive rails or screws are tightened appropriately and that the system firmware recognizes NVMe devices before deploying the drive for critical workloads.
