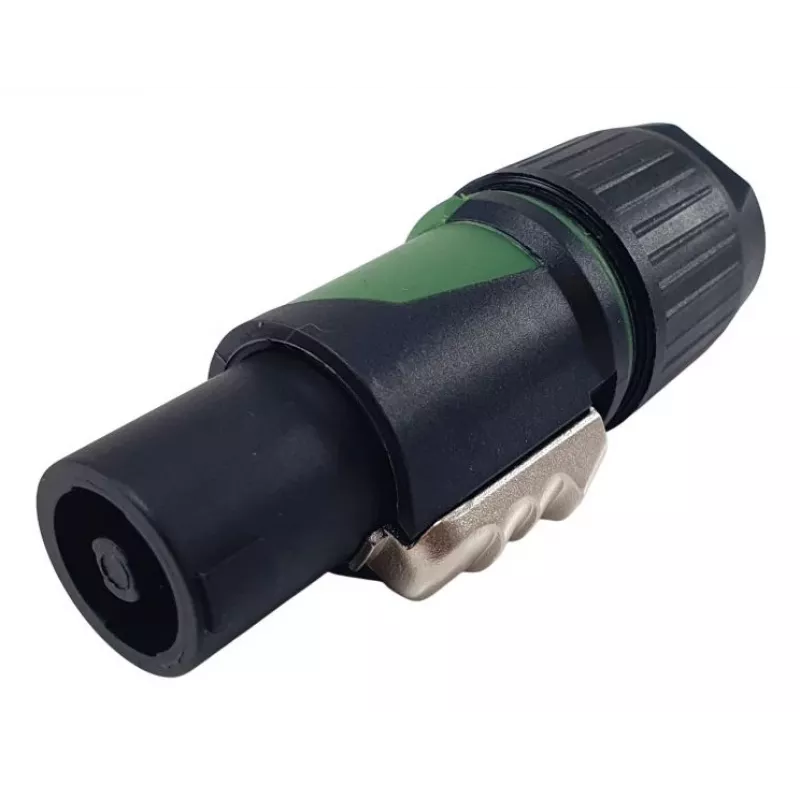

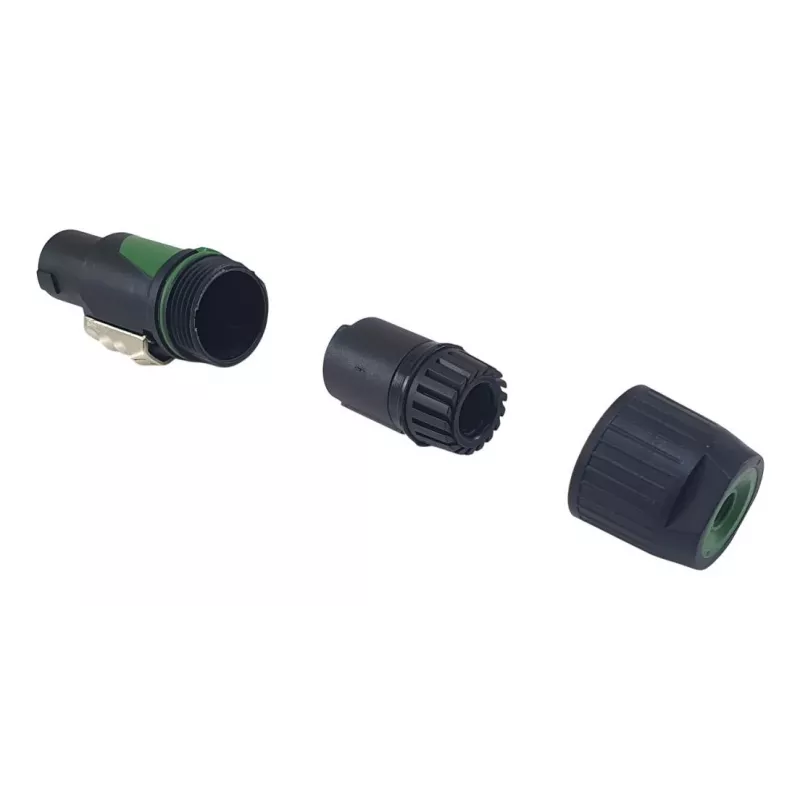

4-pólový speakON káblový konektor EQUIP 4-pólový samica, čierny, 22,5×22,5 mm, 30 g

The EQUIP 4‑Pole speakON cable connector is a female black connector designed for professional audio cabling. It provides a secure, high-power connection between amplifiers and speakers, suitable for live sound, PA systems, stage monitors and fixed installations. The compact housing measures 22.5 × 22.5 mm and the connector weighs approximately 30 g. CE and RoHS certifications ensure compliance with common safety and environmental standards.

Advantages

This 4‑pole speakON connector offers reliable signal transmission with a twist‑lock mechanism that prevents accidental disconnection. The screw‑terminal assembly enables quick, dependable wiring, and the chuck‑type strain relief supports cable diameters from 6 to 12 mm for strong mechanical retention. Constructed from metal and plastic components in a robust housing, the connector is suitable for repeated use in touring and installation environments.

Suitable for

• High-power speaker connections in live sound and PA systems
• Stage monitors and amplifier outputs
• Audio installation and rental equipment
• Replacement or building of speakON cable terminations

Key specifications

• Connector type: 4‑pole female speakON
• Mounting/format: straight inline cable connector
• Materials: metal and plastic housing
• Cable diameter compatibility: 6–12 mm with chuck‑type strain relief
• Locking: twist‑lock mechanism
• Termination: screw‑terminal assembly
• Dimensions: 22.5 × 22.5 mm
• Weight: approx. 30 g
• Color: black (also available in green as a variant)
• Certifications: CE, RoHS

How to use

Strip the cable to the appropriate length, open the screw‑terminal assembly and insert the conductors into the corresponding pole terminals. Tighten the screws to secure the conductors and verify mechanical retention with the chuck‑type strain relief. Assemble the housing and engage the twist‑lock function to ensure a secure connection to the mating speakON connector. Check polarity and perform an audio test at low volume before full operation.

Recommendations

Use this EQUIP 4‑Pole speakON connector in professional audio setups where secure, vibration‑resistant speaker connections are required. Choose an appropriate cable diameter within the specified 6–12 mm range, ensure correct wiring of the four poles for intended bridged or bi‑amp configurations, and periodically inspect screw terminals and strain relief for wear or loosening.
