ABB AF80-40-00-13 4-pólový stýkač, cievka 100-250 V AC/DC, 80 A (AC-3) 1SBL397201R1300

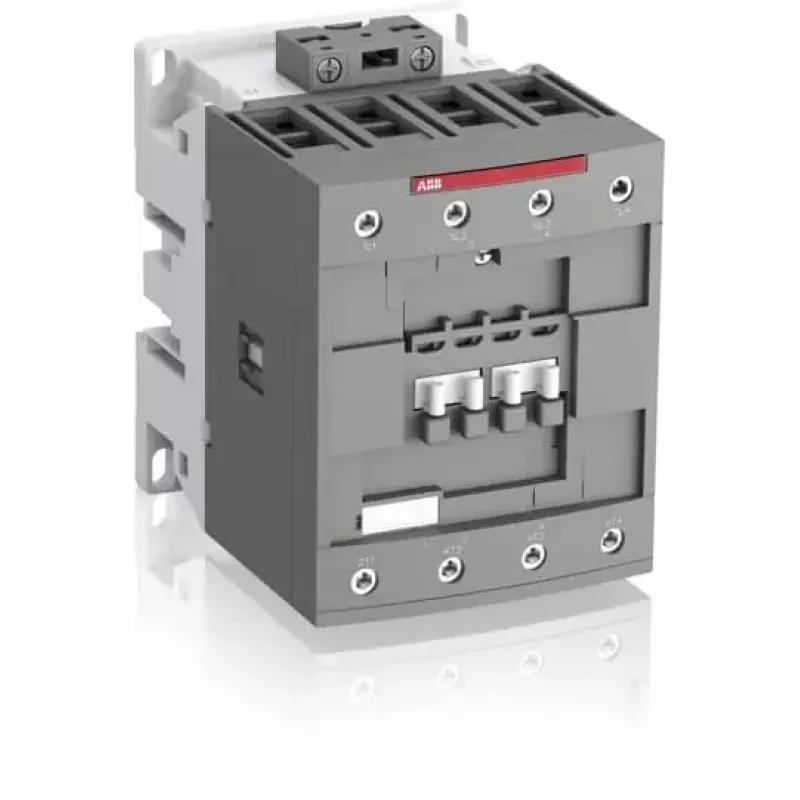

Controlling large electrical loads such as motors up to 37 kW demands a contactor that combines high switching capacity with reliable coil operation across a wide voltage range. The ABB AF80-40-00-13 meets this need with a 4-pole design, 80 A AC-3 rating, and an electronically controlled coil that accepts 100-250 V AC/DC without reconfiguration.

Who is it for

Panel builders and maintenance engineers who need a robust contactor for motor starting, lighting control, or power distribution in industrial environments. Its wide control voltage range simplifies inventory and wiring, while the compact frame suits DIN rail or screw mounting.

Main features

• 4 main poles, normally open (NO), with 1 built-in auxiliary NC contact.
• Control circuit: 100-250 V AC/DC, 50/60 Hz, electronically controlled for stable operation even with voltage fluctuations.
• Rated operational current: 80 A (AC-3, 400 V) for motor loads; 125 A (AC-1, 690 V, 40°C) for resistive loads.
• High electrical durability: 1.5 million cycles (AC-3) and 10 million mechanical cycles.
• Rated insulation voltage 1000 V, impulse withstand 8 kV for safe operation in industrial networks.
• Compact dimensions: 90 mm wide, 125.5 mm high, 116 mm deep; IP20 protection.
• Operating temperature range: -40 to +70 °C, suitable for harsh environments.

Specifications

• Product type: Contactor
• Number of poles: 4
• Main contact configuration: 4 NO
• Auxiliary contact configuration: 1 NC
• Control circuit voltage: 100-250 V AC/DC
• Control circuit frequency: 50/60 Hz
• Rated operational current (AC-1): 125 A (690 V, 40°C)
• Rated operational current (AC-3): 80 A (400 V)
• Rated operational power (AC-3): 37 kW (400 V)
• Rated operational voltage: 690 V AC / 220 V DC
• Rated insulation voltage (Ui): 1000 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Mounting type: DIN rail / screw mounting
• Terminal type: screw terminals
• Operating temperature range: -40 to +70 °C
• Degree of protection: IP20
• Electrical durability (AC-3): 1.5 million cycles
• Mechanical durability: 10 million cycles
• Standards: IEC 60947-1, IEC 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1

Tips

Verify the coil voltage range before ordering: this contactor accepts 100-250 V AC/DC, covering most industrial control voltages. For motor applications, ensure the AC-3 current rating matches your motor's full-load current. Mount on a DIN rail or with screws, and leave adequate clearance for heat dissipation at high currents.
