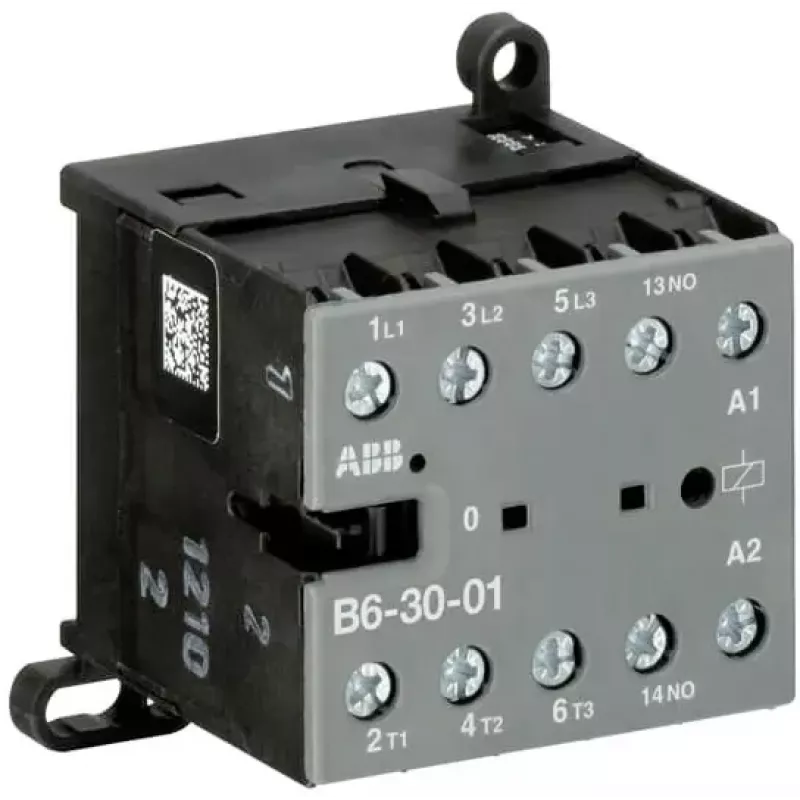

ABB B6-30-01 Mini stýkač 220-240V AC 3NO+1NC 6A GJL1211001R8010

Mini contactor with 3 NO main poles and 1 NC auxiliary contact, rated for 6 A at 400 V AC-3 and 20 A at AC-1. Controls motors up to 3 kW at 400 V with a 220-240 V AC coil. Mounts on 35 mm DIN rail or with screws.

Advantages

Compact design saves panel space. Screw terminals ensure secure connections. High mechanical durability of 10 million cycles and electrical durability of 0.5 million cycles for long service life.

Suitable for

• Motor starting and stopping in industrial control panels
• Switching resistive loads up to 20 A
• Applications requiring a built-in NC auxiliary contact for interlocking or signaling

Key specifications

• Rated operational current AC-3: 6 A at 400 V
• Rated operational current AC-1: 20 A at 400 V
• Control voltage: 220-240 V AC, 50/60 Hz
• Main circuit rated voltage: 690 V AC
• Number of poles: 3 NO main contacts + 1 NC auxiliary contact
• Mounting: DIN rail 35 mm or screw mounting
• Degree of protection: IP20
• Operating temperature: -25 to +55 °C

Recommendations

Ensure coil voltage matches control circuit. Use appropriate overload relay for motor protection. Install in enclosure with adequate ventilation.
