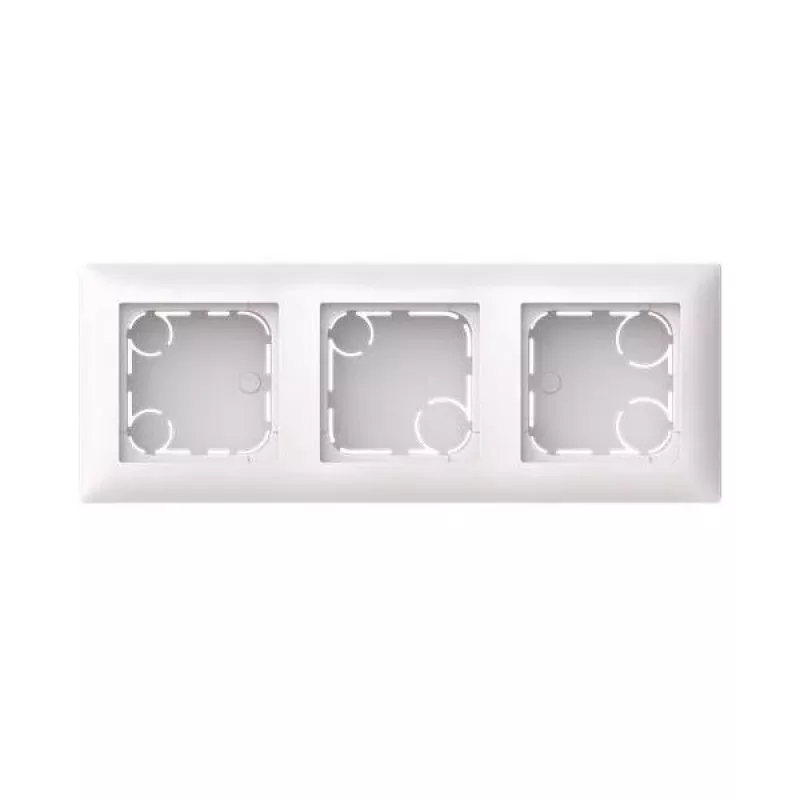

ABB Busch-balance SI nástenné puzdro, 3-násobné, plochý dizajn, štúdiová biela 2TKA00005516

When installing electrical accessories on walls where flush-mounted boxes are not available, a surface-mounted housing provides a clean and secure enclosure. The ABB Busch-balance SI 3-gang surface-mounted housing offers a flat, low-profile solution for mounting compatible inserts from the Busch-balance SI series.

Who is it for

Electricians and installers who need a reliable surface-mounted enclosure for three modular inserts in residential or commercial settings. It suits projects where wall chasing is impractical or where existing surface wiring requires a neat finish.

Main features

• 3-gang configuration for multiple inserts
• Flat design for a discreet appearance
• Compatible with Busch-balance SI inserts
• Surface-mounted installation with screw fastening
• Pre-punched knock-outs for cable entry
• Halogen-free thermoplastic material
• Matt surface finish in studio white

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 3
• Design series: Busch-balance SI
• Mounting type: Surface-mounted
• Colour: Studio white
• Material: Thermoplastic
• Halogen-free: Yes
• Surface finish: Matt
• Type of fastening: Screw fastening
• Cable entry: Pre-punched knock-outs
• Housing height: 80 mm
• Housing width: 222 mm
• Housing depth: 47 mm
• Impact resistance: IK05
• UV resistance: Yes
• Operating temperature range: -5 to +45 °C

Tips

Ensure the mounting surface is flat and stable. Use appropriate screws for the wall material and align the housing level before final tightening. For multiple housings side by side, maintain consistent spacing for a uniform look.
