ABB napájacie puzdro so zbernicami 165mm CZE230

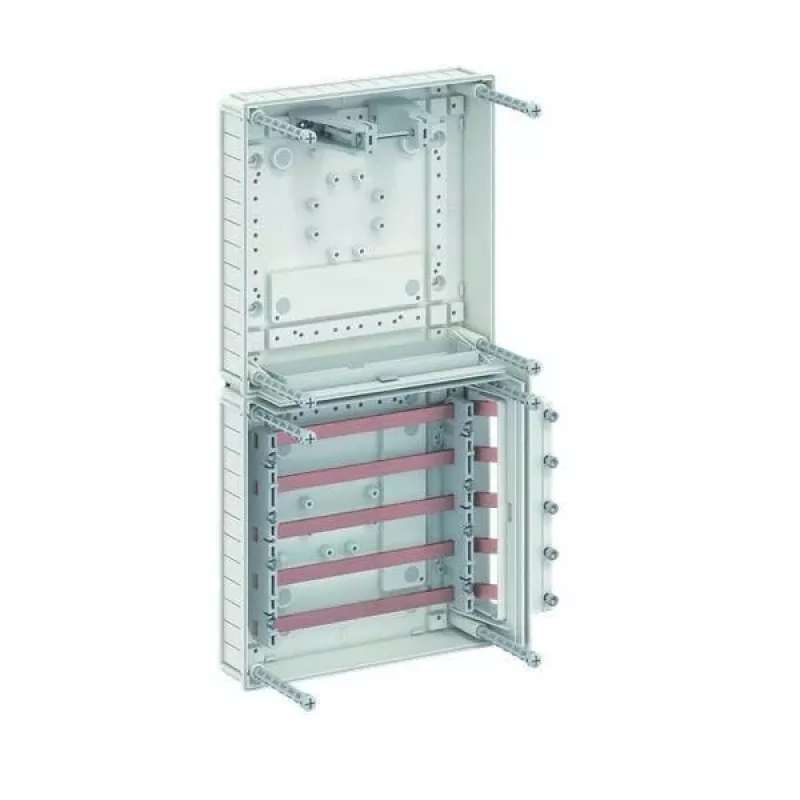

The ABB Feed-in Housing with Busbars 165mm CZE230 is a modular component designed for the TwinLine G series cabinets. It provides a reliable and efficient connection for incoming cables to the busbar system, ensuring safe and organized power distribution in industrial and commercial applications.

Advantages

This feed-in housing offers a compact and robust solution for main distribution boards. The integrated 5-pole busbar system with 165mm spacing allows for high current capacity up to 250A. The powder-coated steel enclosure provides durability and protection, while the IP44 rating ensures resistance to dust and splashing water. Easy installation as an internal module within TwinLine G cabinets saves space and simplifies maintenance.

Suitable for

• Main distribution boards in industrial facilities
• Commercial building power distribution
• Integration into ABB TwinLine G cabinet systems
• Applications requiring a 3-phase + Neutral + PE busbar system

Key specifications

• Product Type: Feed-in housing with busbars
• Busbar System: 5-pole, 165mm spacing
• Rated Current: Up to 250 A
• Rated Voltage: Up to 690 V AC
• Enclosure Material: Steel sheet, powder-coated
• Color: RAL 7035 (Light Grey)
• Protection Degree: IP44
• Mounting: Internal module for TwinLine G cabinets
• Standards: DIN EN 61439-1, DIN EN 61439-2

Recommendations

For optimal performance, ensure compatibility with ABB TwinLine G series cabinets. Use appropriate cable entries via cabinet top or bottom. Follow installation guidelines for busbar systems to maintain safety and compliance.
