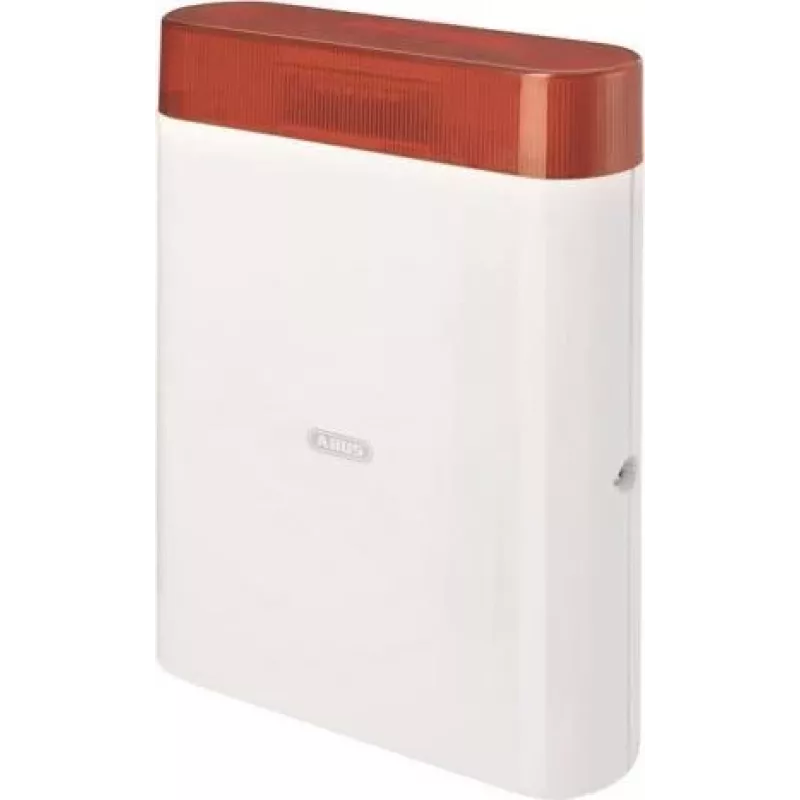

ABUS Security-Center AZSG10001 káblová vonkajšia siréna červená

The ABUS Security-Center AZSG10001 is a robust wired outdoor siren designed to provide reliable alarm signaling for 12V DC security systems. With a piercing 110 dB sound pressure level and a bright red strobe light flashing at 1 Hz, it effectively deters intruders and alerts occupants. The siren is housed in a UV-resistant polycarbonate enclosure rated IP44, ensuring durability against weather conditions. It features tamper protection for both wall and cover, and operates in temperatures from -25°C to +60°C. The 4-wire connection allows easy integration with compatible alarm control panels.

Advantages

High deterrent effect with loud siren and visible strobe; weatherproof and tamper-resistant design; universal compatibility with 12V DC alarm systems.

Suitable for

• Outdoor installation on walls of residential or commercial buildings
• Integration with wired alarm control panels
• Areas requiring visible and audible alarm signaling

Key specifications

• Sound Pressure Level: 110 dB (at 1m)
• Strobe Light: Yes, Red, 1 Hz
• Power Supply: 12 V DC
• Current Consumption: Max. 250 mA (siren and flash each)
• Housing Material: UV-resistant Polycarbonate
• IP Rating: IP44
• Tamper Protection: Wall and Cover
• Operating Temperature: -25°C to +60°C
• Connection: Wired (4-wire)
• Sounder Technology: Piezoelectric
• Mounting: Wall Mount
• Alarm Duration: Adjustable via control panel
• Cable Entry: Rear/Bottom

Recommendations

For optimal performance, pair with a compatible 12V DC alarm control panel. Ensure proper wiring and mounting according to the installation manual.
