ABUS Security-Center Secoris 8x reléový modul AZMO60000

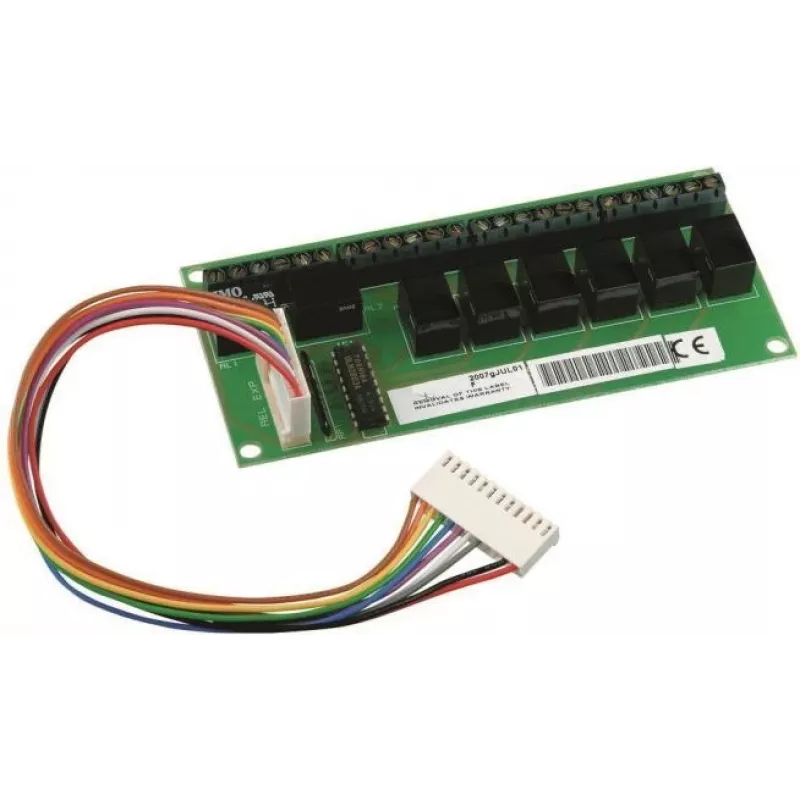

The ABUS Security-Center Secoris 8x Relay Module AZMO60000 is an expansion board designed to enhance the functionality of ABUS Secoris alarm control panels. It adds eight powerful relay switching outputs, allowing seamless control of external devices such as lighting, gates, sirens, and access control systems. The module converts open-collector/drain transistor outputs into reliable relay outputs, activated by predefined events like alarms or faults.

Advantages

This relay module expands your alarm system with eight potential-free changeover contacts (NO/NC), each capable of switching up to 30 V DC or 24 V AC at 1 A. It integrates directly via the ABUS Secoris bus, drawing power from the control panel, and supports operating temperatures from -10°C to +55°C with up to 95% relative humidity (non-condensing). The compact PCB design allows internal mounting within the control panel housing.

Suitable for

• Professional alarm systems in offices and commercial properties
• Controlling external devices like lighting, gates, sirens, and access control
• Expanding ABUS Secoris alarm control panels

Key specifications

• Product Type: Relay Module / Expansion Board
• Number of Relay Outputs: 8
• Relay Contact Type: Potential-free changeover contacts (NO/NC)
• Max. Switching Voltage (DC): 30 V DC
• Max. Switching Voltage (AC): 24 V AC
• Max. Switching Current: 1 A
• Connection Interface: ABUS Secoris Bus
• Power Supply: Via ABUS Secoris Bus from control panel
• Operating Temperature Range: -10°C to +55°C
• Operating Humidity: Max. 95% RH (non-condensing)
• Mounting Type: Internal (e.g., within control panel housing)
• Material: Printed Circuit Board (PCB) with electronic components

Recommendations

For optimal performance, use this relay module exclusively with ABUS Secoris alarm control panels. Ensure proper mounting and avoid exposure to condensing humidity. This module is ideal for professional security installations requiring reliable switching of external devices.
