PRÍSLUŠENSTVO projekčná plátno nástenný vypínač hore/dole 80901405

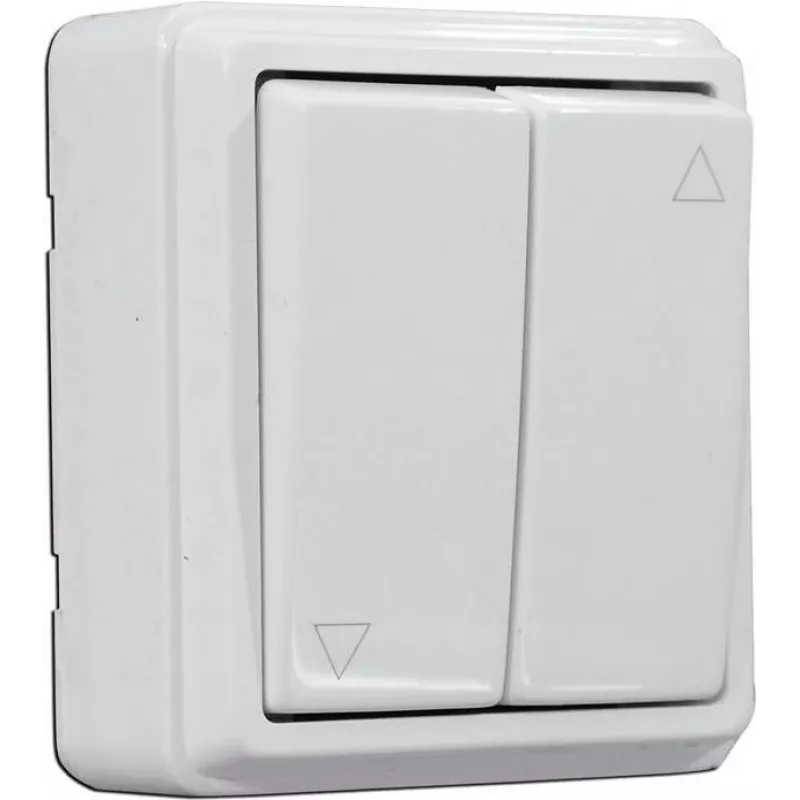

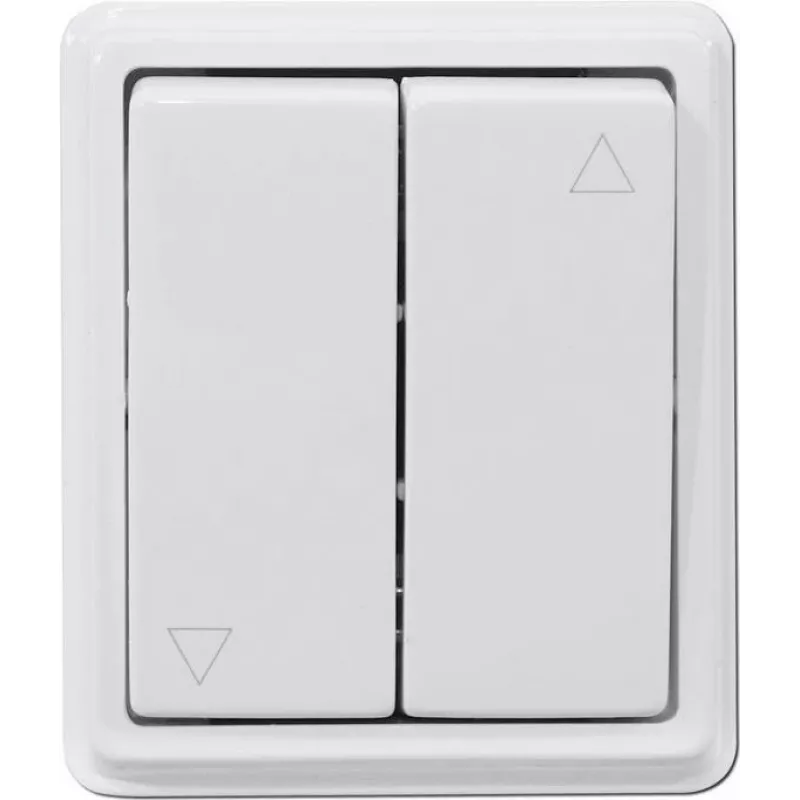

Projection screen wall switch for motorized screens with up, down, and stop control functions. The rocker switch allows direct manual operation of the screen motor from a flush-mounted wall box.

Advantages

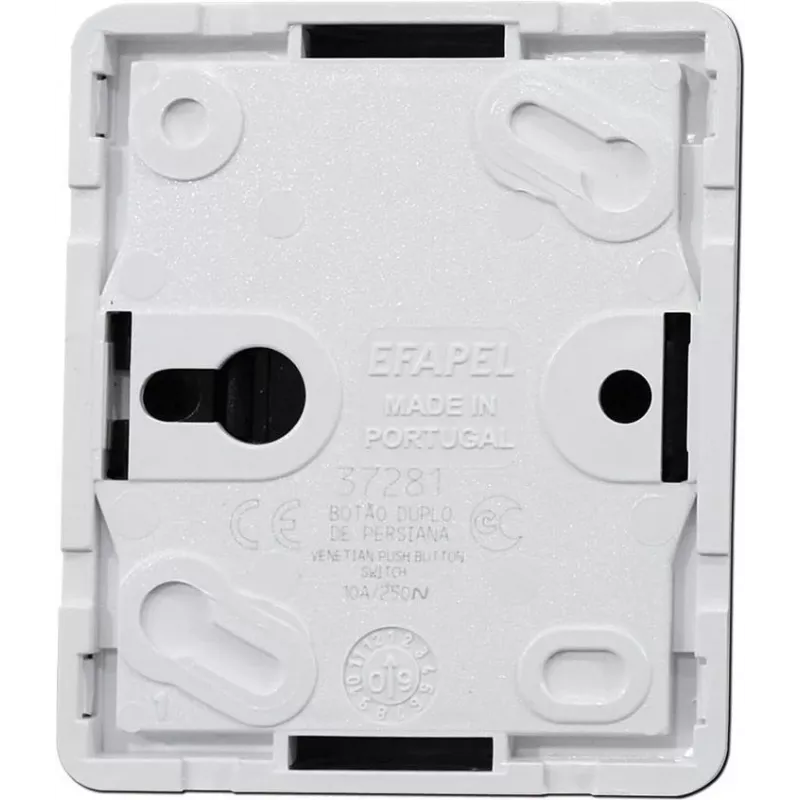

Simple and reliable control for motorized projection screens. The switch is designed for standard wall boxes and is easy to install with a 4-wire connection.

Suitable for

• Motorized projection screens
• Flush-mounted installation in standard wall boxes

Key specifications

• Control functions: Up, Down, Stop
• Switch type: Rocker switch
• Operating voltage: 230V AC
• Frequency: 50 Hz
• Max. load current: 3 A
• Housing material: ABS plastic
• Colour: White

Recommendations

Use this switch for convenient manual control of your projection screen. Ensure the screen motor is compatible with 230V AC and the current does not exceed 3 A.
