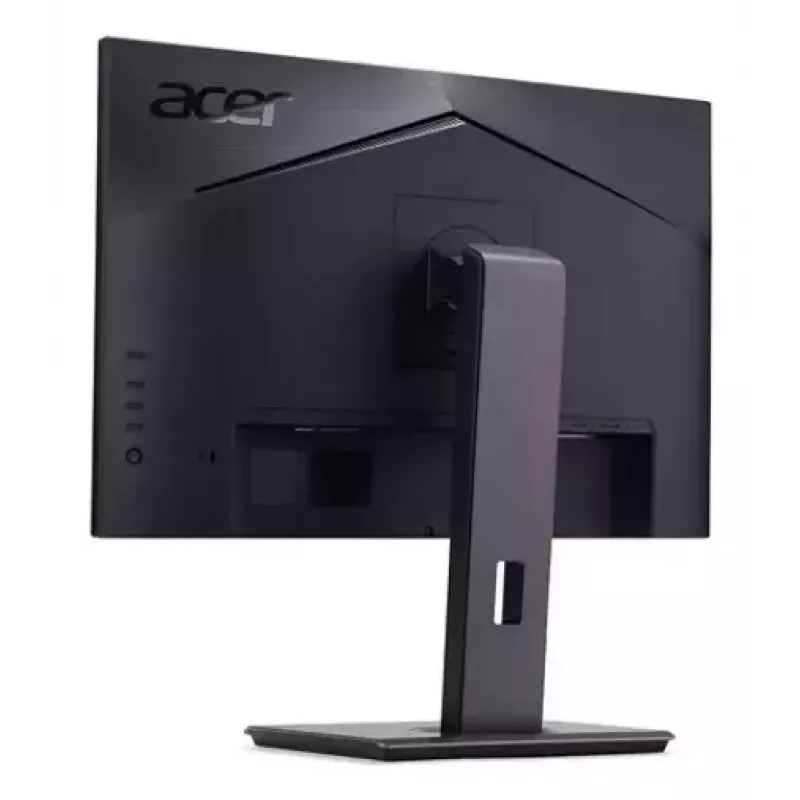

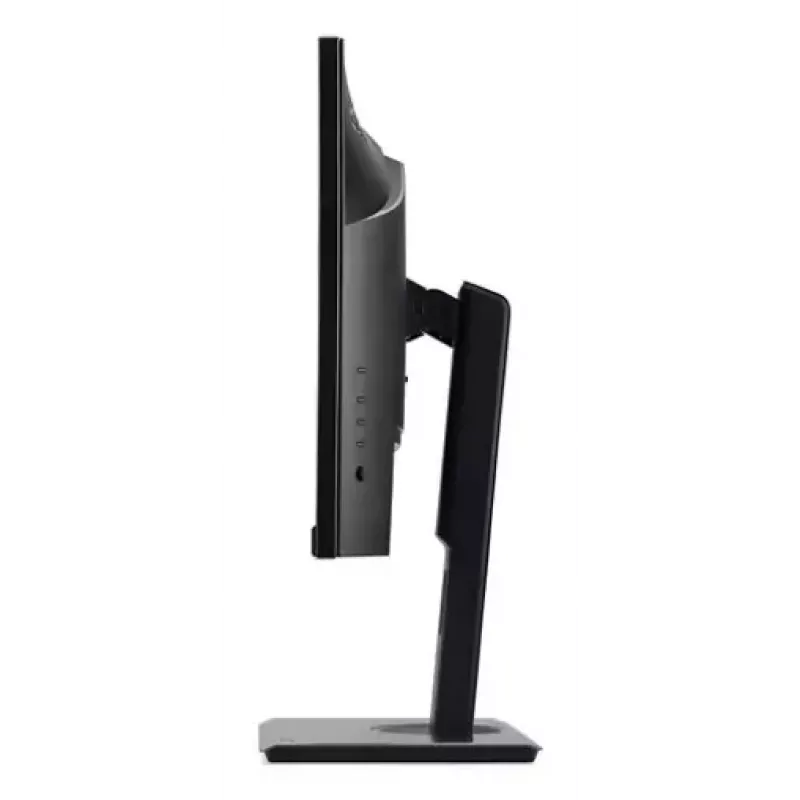

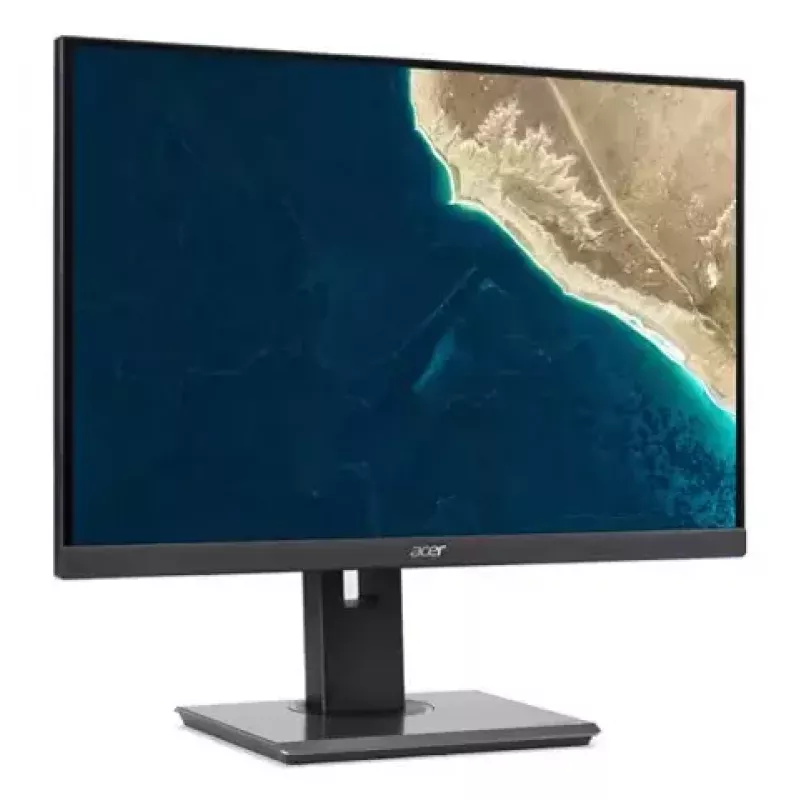

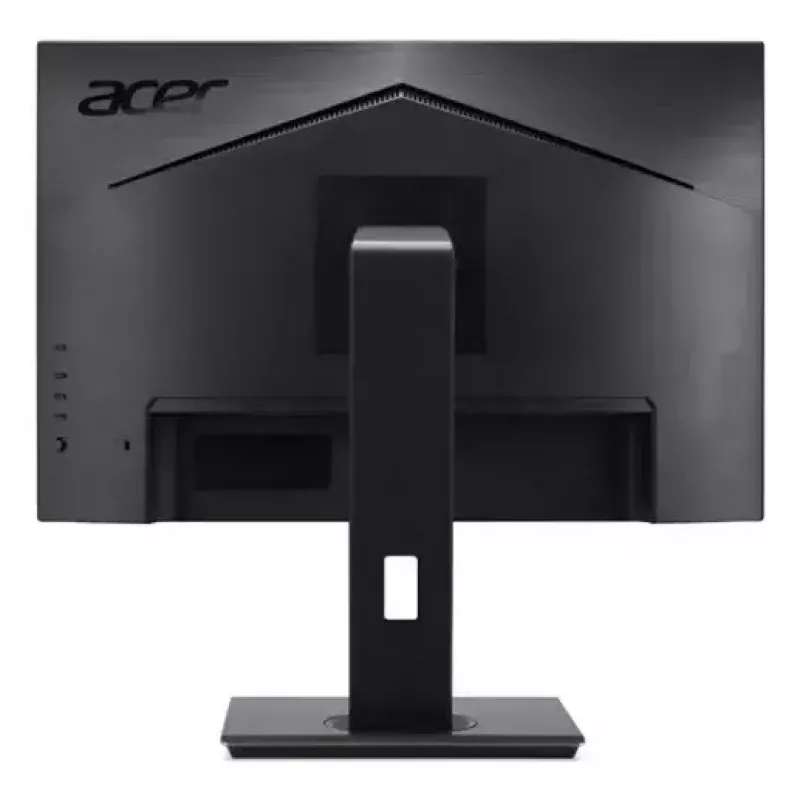

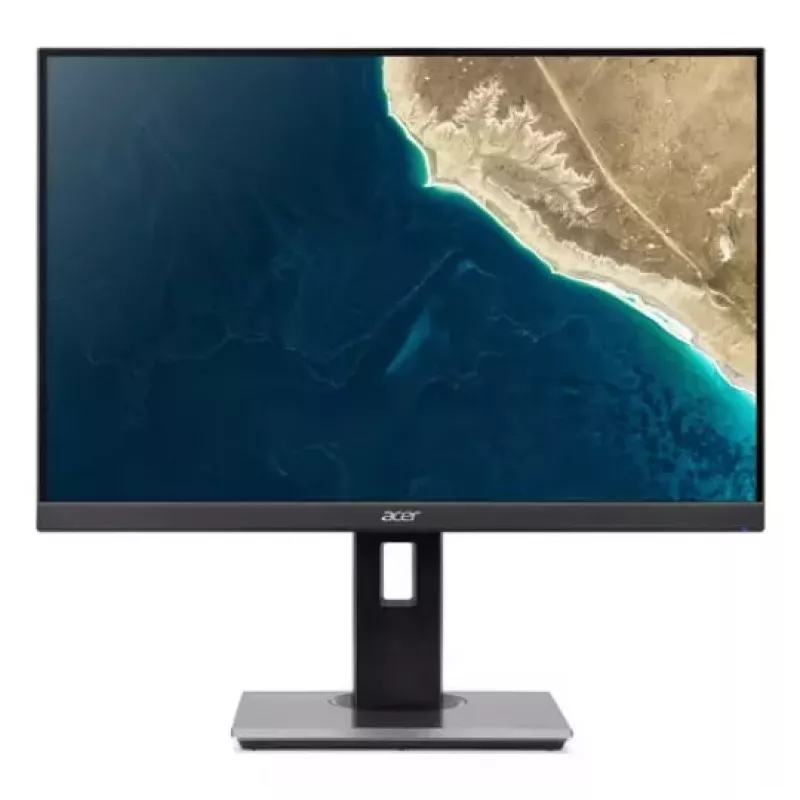

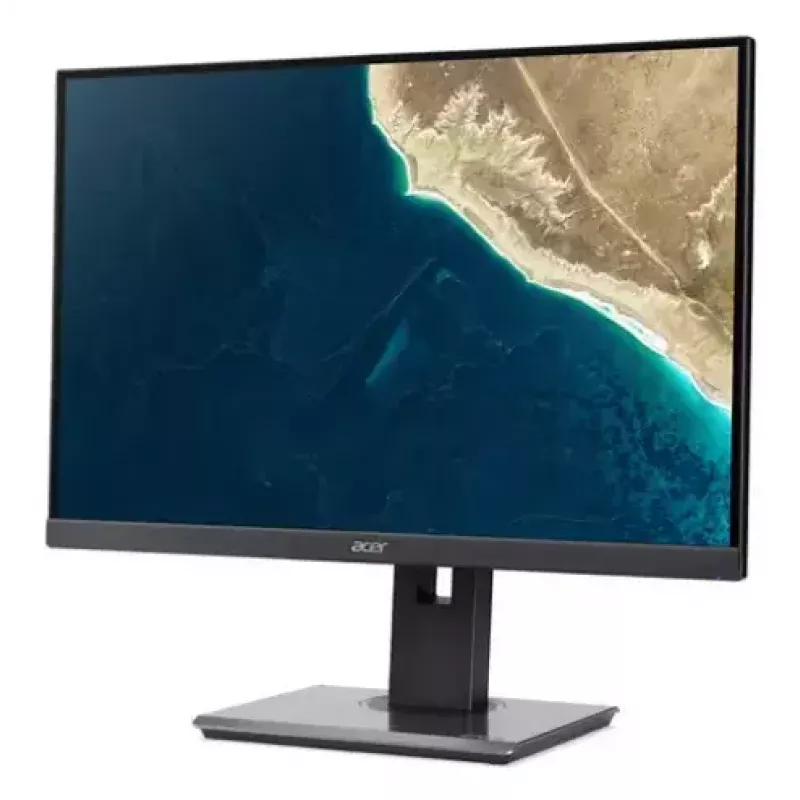

Acer Vero B7 B247W E5 monitor 24" WUXGA 1920 x 1200

The Acer Vero B7 B247W E5 24" WUXGA 1920 x 1200 is a 24-inch IPS monitor with a WUXGA resolution of 1920 x 1200 pixels and a native 16:10 aspect ratio. It delivers a typical brightness of 300 cd/m² and a typical contrast ratio of 1500:1, combined with a 4 ms response time and 178° horizontal and vertical viewing angles to provide clear, consistent image quality across the screen. The display is flat, finished in black, and features integrated speakers, VESA mounting compatibility and height adjustment for ergonomic positioning.

Advantages

The IPS panel ensures accurate color reproduction and wide viewing angles useful for collaborative work or multi-monitor setups. The 16:10 aspect ratio and 1920 x 1200 resolution offer added vertical space compared with standard 16:9 displays, making the monitor suitable for document editing and productivity tasks. Built-in speakers reduce the need for external audio devices, and VESA mounting plus height adjustment support flexible installation and ergonomic placement.

Suitable for

• Office productivity and document editing
• Web development and coding where extra vertical space is beneficial
• General multimedia consumption and video conferencing
• Multi-monitor workstations and collaborative setups

Key specifications

• Display diagonal: 24 inches
• Resolution: 1920 x 1200 (WUXGA)
• Panel type: IPS
• Aspect ratio: 16:10
• Response time: 4 ms
• Typical brightness: 300 cd/m²
• Typical contrast ratio: 1500:1
• Pixel pitch: 0.27 x 0.27 mm
• Viewing angles: 178° horizontal / 178° vertical
• Screen shape: Flat
• Built-in speakers: Yes
• VESA mounting: Yes
• Color: Black

How to use

Place the monitor on a stable desk surface or attach it to a compatible VESA mount. Connect the monitor to your computer using the appropriate video cable supported by your system. Adjust the height to align the top of the screen at or slightly below eye level and tilt the panel to reduce glare. Use the on-screen display (OSD) controls to configure brightness, contrast, color presets and input selection. Connect external audio devices if higher-quality sound is required, otherwise use the built-in speakers for basic audio.

Recommendations

For extended use, set the height and tilt for neutral neck posture, enable a comfortable screen brightness relative to ambient light, and use the 16:10 resolution to increase vertical workspace for document and code windows. If mounting on an arm, verify VESA pattern compatibility and that the arm supports the monitor weight.
