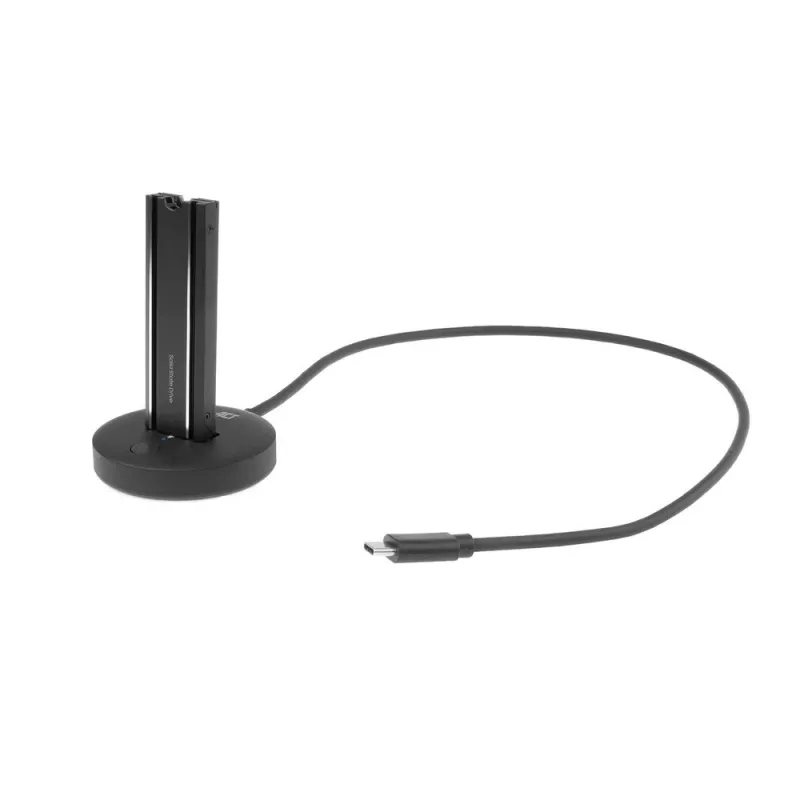

ACT M.2 NVMe/PCIe SSD dokovacia stanica USB-C 3.2 Gen2 čierna

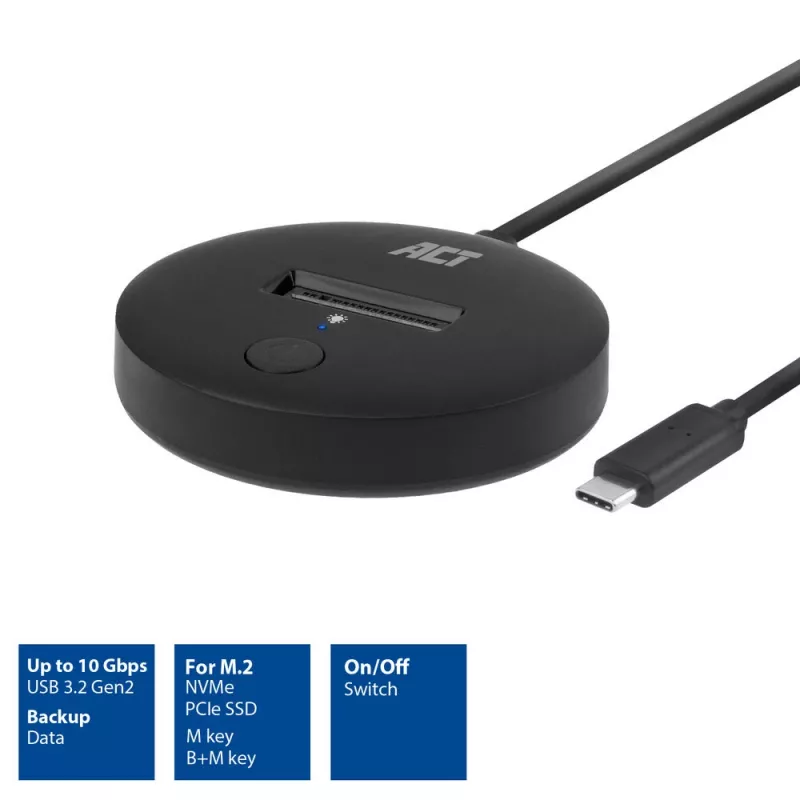

The ACT AC1501 M.2 SSD Docking Station is a compact USB-C 3.2 Gen2 solution for connecting a single M.2 NVMe/PCIe SSD to a computer. It supports drives with M key and B+M key, including models fitted with a heatsink, and provides data transfer up to 10 Gbps. The dock is USB powered and includes a status LED and an on/off switch for simple operation.

Advantages

The docking station supports USB 3.2 Gen2 and UASP for optimized transfer speeds up to 10 Gbps, enabling fast backups and file transfers. Its compact plastic housing (approx. 60 x 60 x 15 mm) and USB bus power make it portable and easy to use without an external power adapter. Compatibility with both M and B+M keyed M.2 NVMe/PCIe SSDs, including drives with heatsinks, adds flexibility for different SSD models.

Suitable for

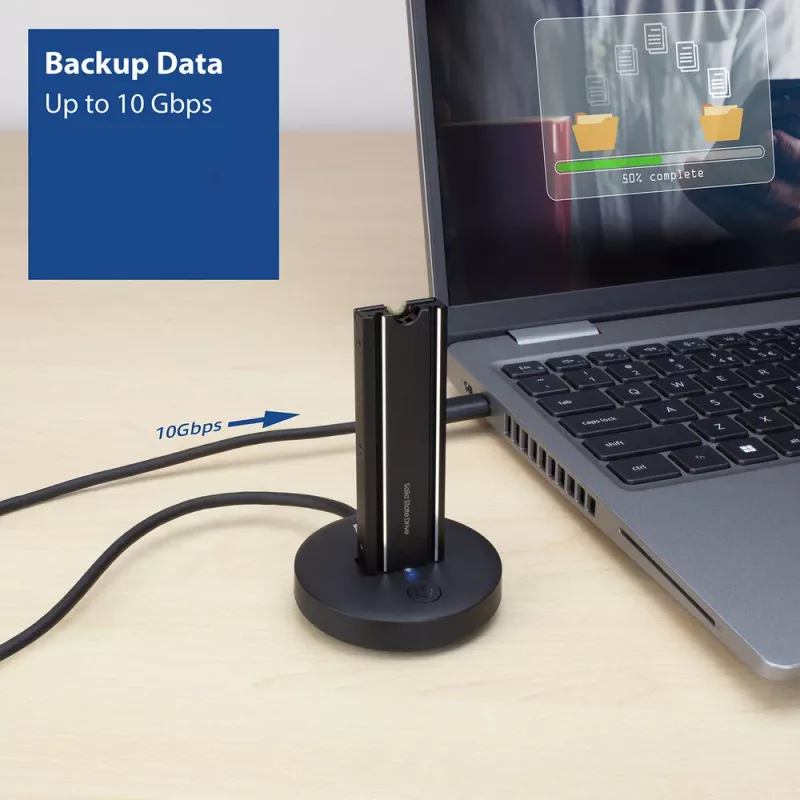

• Quick backups and file transfers between an M.2 NVMe/PCIe SSD and a PC or laptop
• Data recovery or cloning tasks with a single M.2 SSD
• Temporary access to an M.2 SSD for diagnostics or content transfer

Key specifications

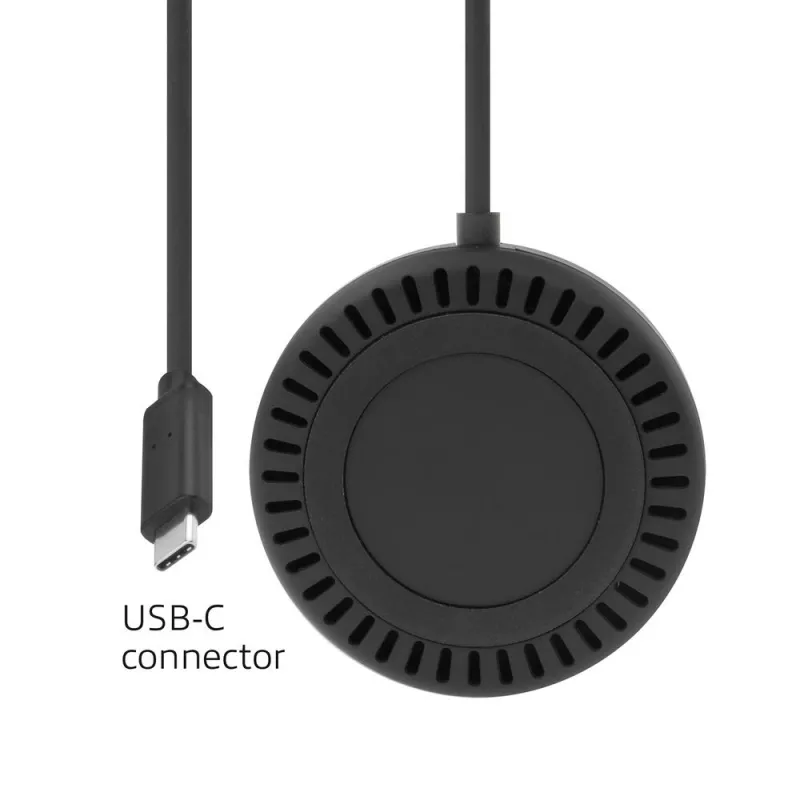

• Interface: USB-C 3.2 Gen2 (10 Gbps)

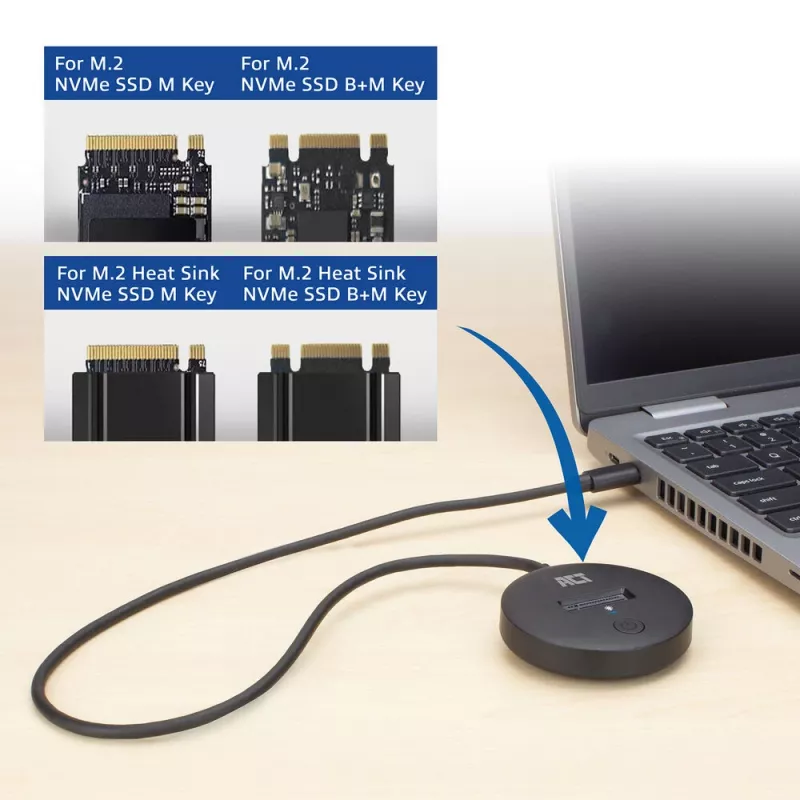

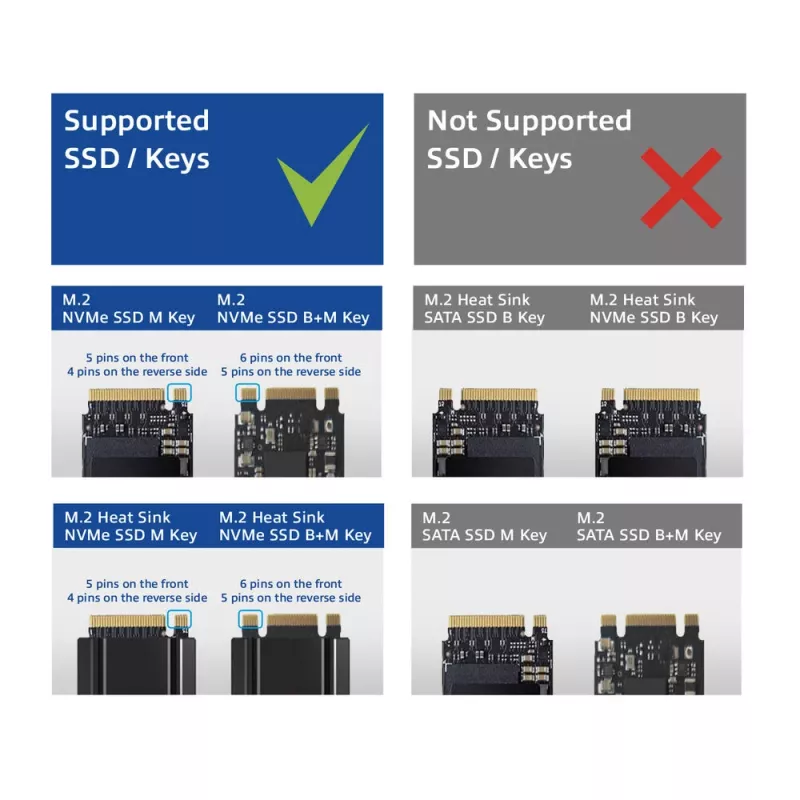

• Supported SSD type: M.2 NVMe/PCIe (M key and B+M key)
• Number of drives: 1
• Power: USB bus powered (no external PSU required)
• Indicators and controls: status LED, on/off switch
• Material and color: plastic, black

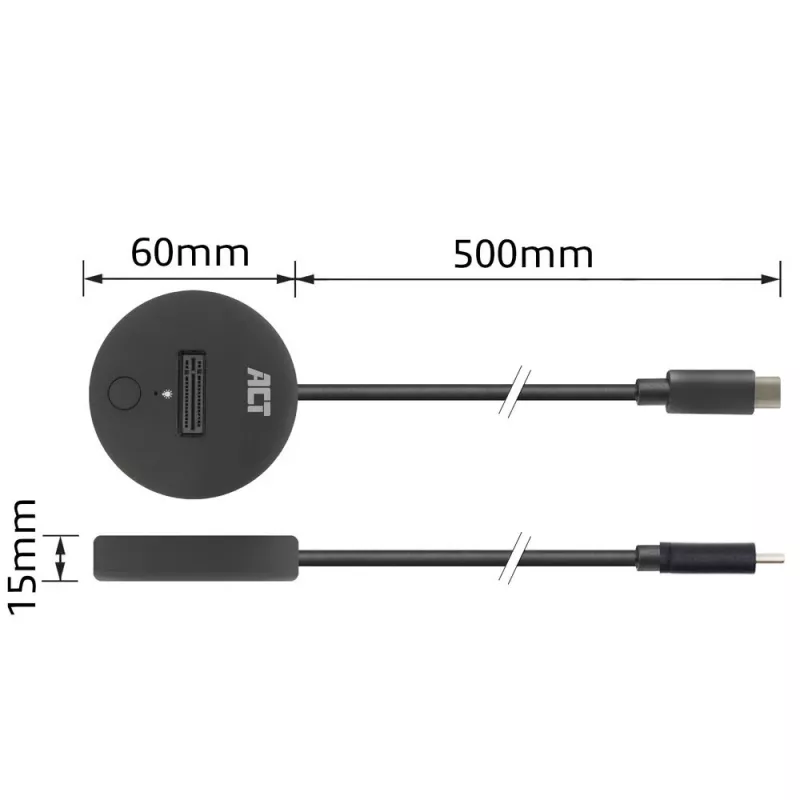

• Approximate dimensions: 60 x 60 x 15 mm
• MPN / EAN: AC1501 / 8716065527209

How to use

Insert a compatible M.2 NVMe/PCIe SSD (M key or B+M key) into the dock according to the slot orientation, secure it if required, and connect the dock to your computer or laptop using a USB-C cable. Power is supplied via the USB connection; use the on/off switch to activate the dock and observe the LED for drive status. Transfer files using your operating system’s file manager or backup software; the dock supports UASP for improved performance when supported by the host.

Recommendations

For reliable cooling and sustained performance during large transfers, allow airflow around SSDs with heatsinks and avoid covering the docking station. Use a USB-C 3.2 Gen2 cable for full 10 Gbps throughput and ensure your host port supports USB 3.2 Gen2 for optimal speeds.
