Adaptér mini DisplayPort VGA DeLOCK 65130

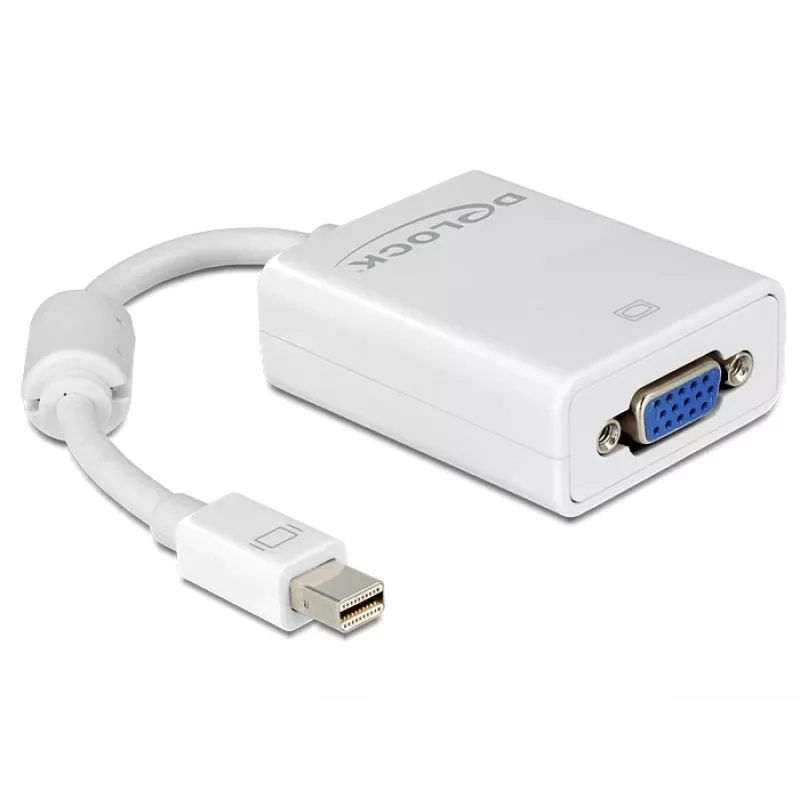

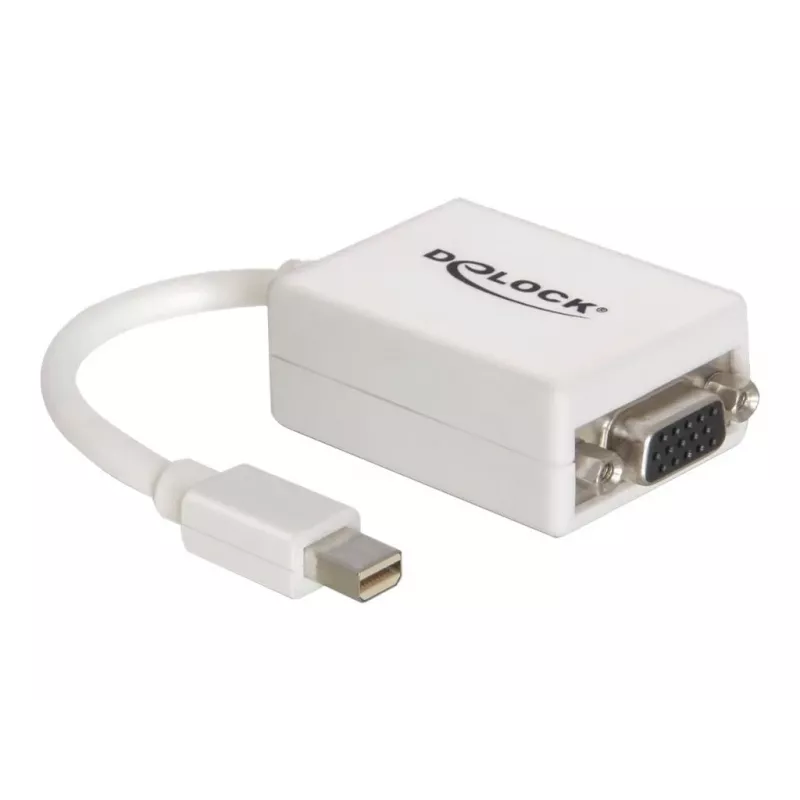

This Delock mini DisplayPort to VGA adapter allows connection of a VGA device such as a monitor to a MacBook, MacBook Pro or MacBook Air. The adapter has a 20‑pin mini DisplayPort male connector and a 15‑pin VGA female socket with screw nuts for secure fastening. The cable length between connectors is 18 cm.

Advantages

The adapter follows the mini DisplayPort 1.1a standard and supports high resolutions up to 1080p. It provides a transfer rate up to 5.4 Gbps and a bandwidth of 225 MHz (2.25 Gbps per channel). The device also supports standby detection and can automatically enter sleep mode when required.

Key specifications

• Connection: mini DisplayPort 20‑pin male to VGA 15‑pin female
• VGA port with screw nuts for secure mounting
• Standard: mini DisplayPort 1.1a
• Maximum resolution: up to 1080p
• Maximum transfer rate: up to 5.4 Gbps
• Bandwidth: 225 MHz / 2.25 Gbps per channel
• Vertical frequency range: 162 MHz
• Standby detection with automatic sleep
• Cable length: 18 cm (with connectors)

How to use

Connect the mini DisplayPort male plug to the MacBook mini DisplayPort output and attach the VGA cable from your monitor to the VGA female socket, tightening the screw nuts to secure the connection. Power on both devices and select the external display in the Mac display settings if necessary. The adapter supports automatic standby detection and will enter sleep mode according to the connected devices' signals.

Recommendations

For optimal image quality, use a VGA cable and monitor that support the adapter's maximum resolution (1080p) and ensure screw nuts are tightened to prevent loose connections. Avoid excessive bending of the 18 cm cable to prolong the adapter's lifespan.
