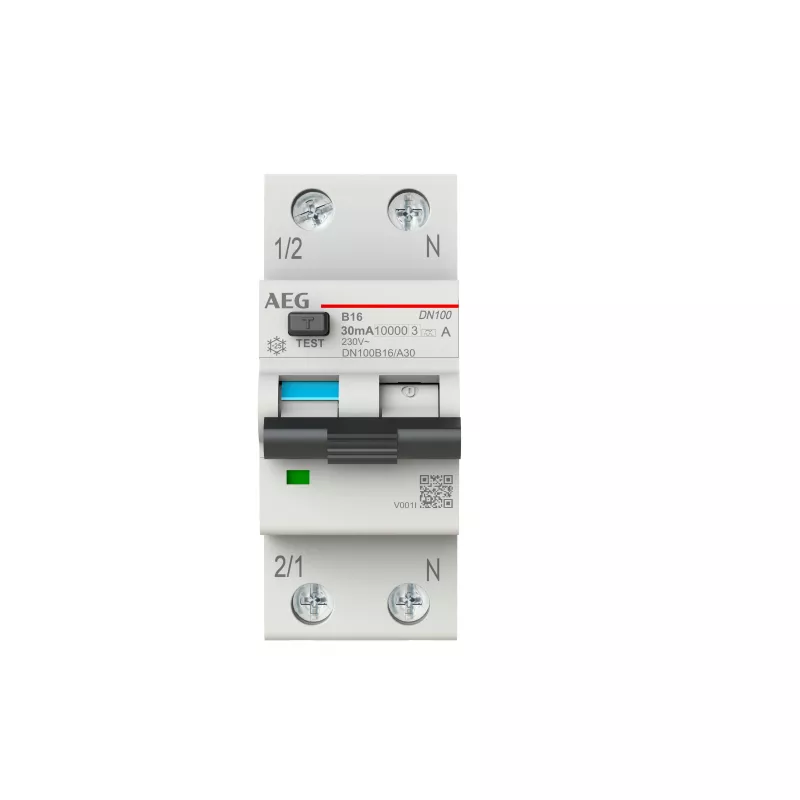

AEG RCBO DN100B16/A30 1P+N Typ A B 16A 30mA 10kA (2CSR975131R1165)

The AEG RCBO DN100B16/A30 is a high-quality residual current circuit breaker with overcurrent protection (RCBO) designed for reliable protection of electrical circuits. It combines the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) in a single compact unit, saving space in distribution boards. This device is ideal for protecting against overloads, short circuits, and earth faults, ensuring safety for both people and equipment.

Advantages

Combined overcurrent and residual current protection in one module saves installation space and reduces wiring complexity. The Type A residual current detection ensures reliable tripping for pulsating DC fault currents, making it suitable for modern electronic loads. With a high short-circuit breaking capacity of 10 kA, it provides robust protection in residential and commercial installations. The B tripping characteristic allows for fast response to short circuits while accommodating moderate inrush currents.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control systems
• Circuits with electronic devices such as computers, LED lighting, and variable frequency drives

Key specifications

• Product Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Number of Poles: 1P+N (1-pole protected + Neutral)
• Rated Current (In): 16 A
• Rated Residual Current (IΔn): 30 mA
• Tripping Characteristic: B
• Residual Current Type: A
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Degree of Protection: IP20
• Operating Temperature Range: -25 to +55 °C
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Terminal Type: Screw Terminals
• Max. Terminal Capacity (Rigid): 35 mm²
• Max. Terminal Capacity (Flexible): 25 mm²
• Standard Compliance: IEC/EN 61009-1
• Module Width: 2 Modules (35 mm)

Recommendations

For optimal protection, ensure that the RCBO is installed by a qualified electrician and that the rated current and residual current settings match the circuit requirements. Regular testing of the RCD function is recommended to ensure continued safety.
