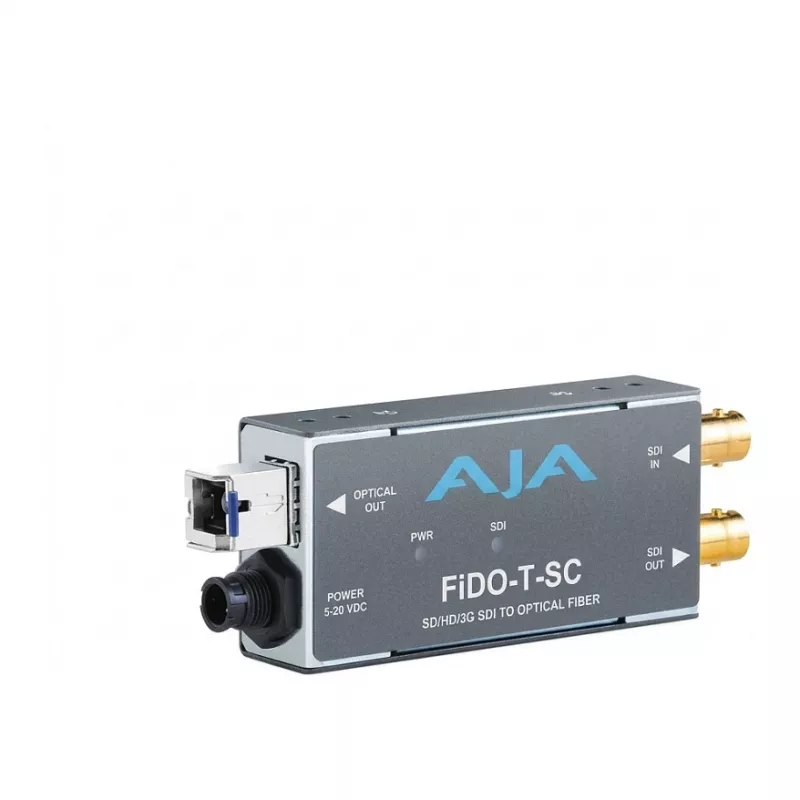

AJA FiDO-T-SC 3G-SDI na optické vlákno konvertor SC single-mode

The AJA FiDO-T-SC is a compact, standalone 3G-SDI to fiber optic converter that transmits SDI signals over single-mode fiber via an SC connector. Ideal for broadcast, production, and ProAV environments, it supports SDI data rates up to 3 Gb and extends transmission distances up to 10 km (6.2 miles).

Advantages

Reliable signal conversion with re-clocking on the SDI input ensures pristine video quality over long distances. The compact form factor and low power consumption (3W typical) make it easy to deploy in space-constrained setups. Embedded SDI audio pass-through maintains full audio integrity.

Suitable for

• Broadcast studios and production trucks
• Live event video distribution
• Security and surveillance systems
• Digital signage and ProAV installations

Key specifications

• Conversion Type: 3G-SDI to Fiber Optic
• SDI Input: 1x BNC (3G-SDI, HD-SDI, SD-SDI)
• Fiber Output: 1x SC Single-Mode
• Supported SDI Formats: SMPTE 259M, 292M, 424M
• SDI Data Rates: 270 Mb, 1.5 Gb, 3 Gb
• Fiber Type: Single-Mode
• Fiber Connector: SC
• Max Fiber Cable Length: Up to 10 km (6.2 miles)
• Re-clocking: Yes, on SDI input
• Power Supply: +5VDC (via DWP-U-R1 universal power supply)
• Power Consumption: 3W (typical)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 10-90% non-condensing
• Form Factor: Compact, standalone
• LED Indicators: Power, SDI Lock, Fiber Lock
• Audio Support: Embedded SDI audio pass-through
• Video Standards: Supports 525i, 625i, 720p, 1080i, 1080p (up to 60fps)
• Compliance: RoHS, WEEE

Recommendations

For optimal performance, use with single-mode fiber cables and the AJA DWP-U-R1 power supply. Ideal for extending SDI signals in broadcast and ProAV workflows.
