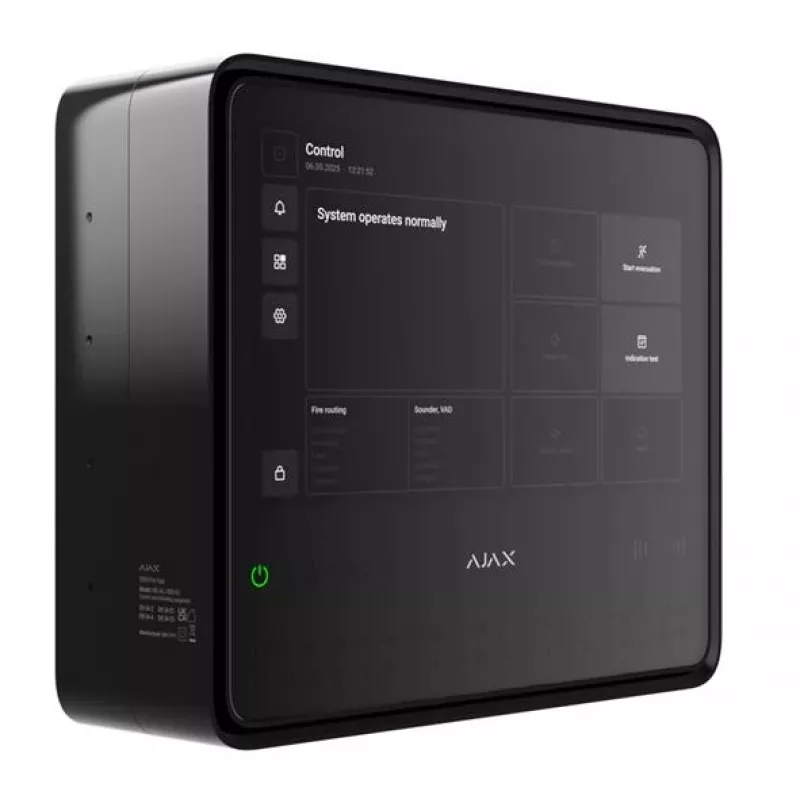

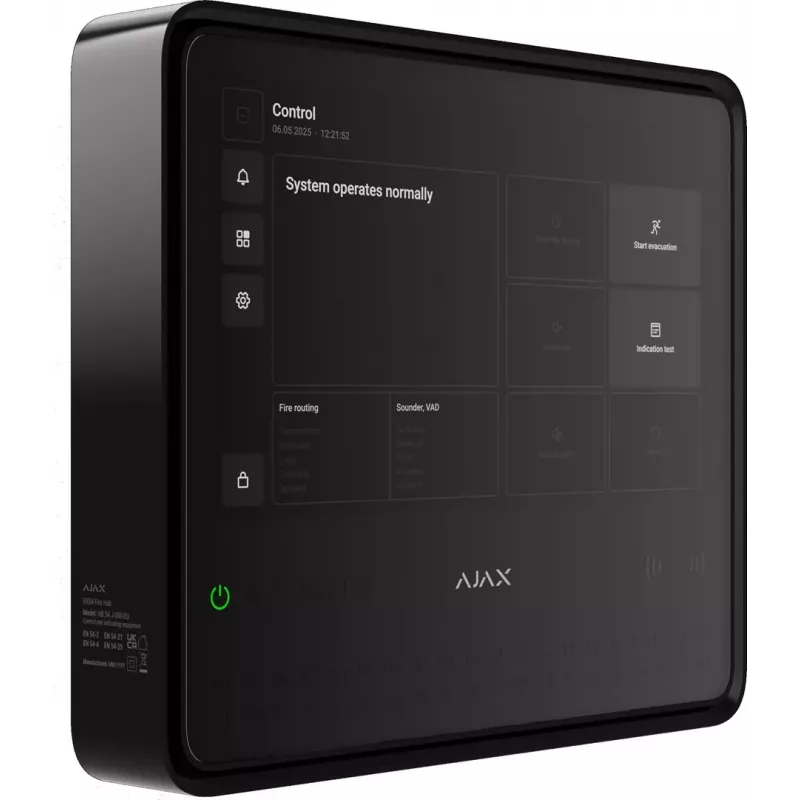

AJAX EN54 Fire Hub Jeweller - čierny

The AJAX EN54 Fire Hub Jeweller is a central control panel designed for security and fire alarm systems. It complies with EN54 standards, ensuring reliable fire detection and alarm management. This black hub supports up to 200 wireless devices and provides multiple communication channels for robust connectivity.

Advantages

EN54 certified for fire safety compliance; supports up to 200 devices and 100 cameras; dual SIM slots for cellular backup; built-in backup battery with up to 15 hours of offline operation; tamper protection against opening and dismounting.

Suitable for

• Residential and commercial fire alarm systems
• Integration with AJAX security devices
• Installations requiring EN54 compliance

Key specifications

• Product Type: Central Control Panel for Security & Fire Systems
• Color: Black
• Communication Channels: 2x 4G (LTE), 2x 2G (GSM), Ethernet, Wi-Fi
• Wireless Technology: Jeweller (868.0-868.6 MHz)
• Max. Connected Devices: Up to 200
• Max. Users: Up to 200
• Max. Rooms: Up to 50
• Max. Security Groups: Up to 25
• Max. ReX Range Extenders: Up to 5
• Video Surveillance Support: Up to 100 cameras/DVRs
• Power Supply: 110-240 V AC, 50/60 Hz
• Backup Battery: Built-in 3 Ah Li-Ion (up to 15 hours offline)
• Operating Temperature: −10°C to +40°C
• Operating Humidity: Up to 75%
• Protection Class: IP20
• Tamper Protection: Yes (against opening, dismounting)
• EN54 Compliance: EN 54-2:2008, EN 54-4:2008
• Operating System: OS Malevich
• SIM Card Slots: 2 (Micro-SIM)

Recommendations

For optimal performance, use with AJAX Jeweller compatible devices. Ensure proper installation by a certified technician. Regularly test the system and maintain backup battery health.
