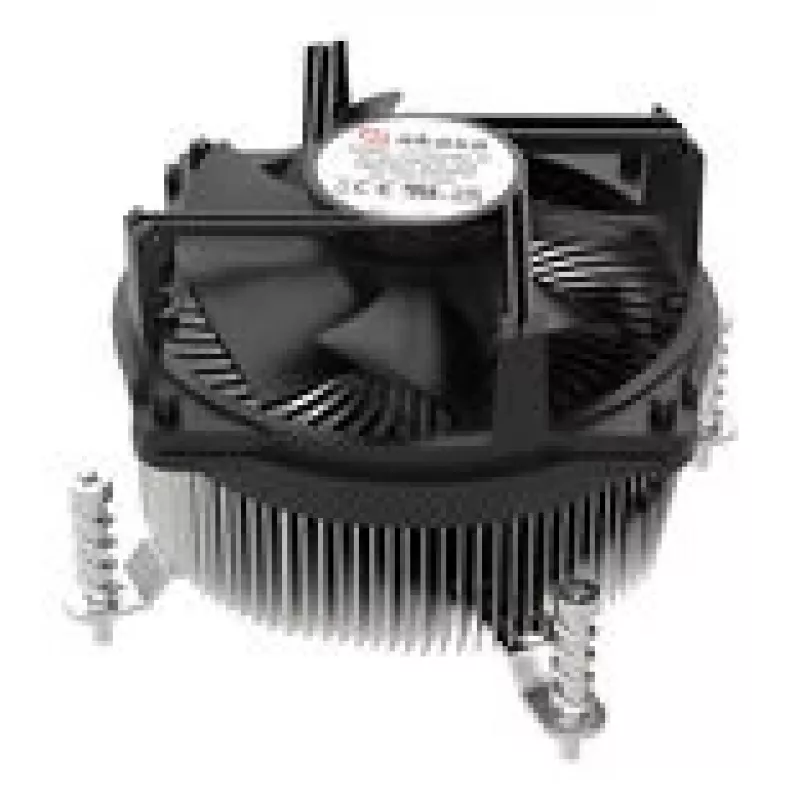

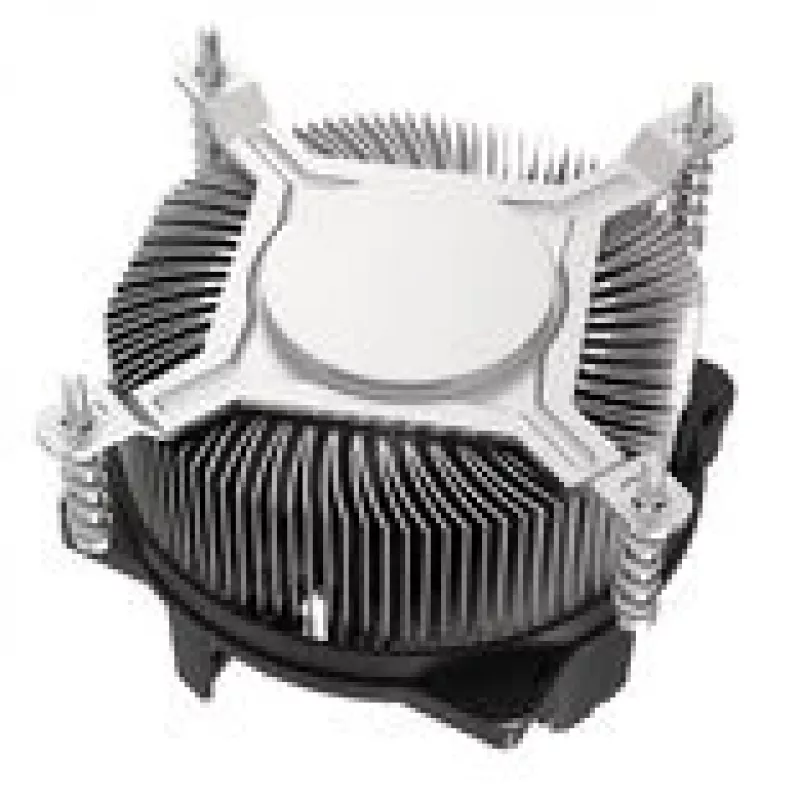

Akasa AK-CC6620BP01 nízkoprofilový CPU chladič, Intel socket 1700 a 1851 - 90mm

The Akasa AK-CC6620BP01 is a low profile CPU cooler designed for Intel LGA1700 and LGA1851 sockets. With a height of only 29 mm, it is ideal for space-constrained builds such as HTPCs, mini-ITX systems, and slim chassis. The cooler features a 90mm PWM fan with hydro dynamic bearing, delivering efficient cooling with low noise levels.

Advantages

Ultra-low profile design (29 mm) ensures compatibility with compact cases. The PWM fan allows precise speed control from 600 to 3000 RPM, balancing performance and acoustics. Pre-applied thermal paste simplifies installation. Hydro dynamic bearing extends fan lifespan up to 50,000 hours.

Suitable for

• Intel LGA1700 and LGA1851 processors
• Small form factor (SFF) builds
• Home theater PCs (HTPCs)
• Office and embedded systems

Key specifications

• Socket Compatibility: Intel LGA1700, LGA1851
• Cooler Type: Low Profile Air Cooler
• Heatsink Material: Aluminum fins with copper core
• Fan Dimensions: 90 x 90 x 15 mm
• Fan Speed: 600 - 3000 RPM (PWM)
• Max Airflow: 40.5 CFM
• Max Static Pressure: 2.21 mm H2O
• Noise Level: 17.0 - 30.5 dB(A)
• Bearing Type: Hydro Dynamic Bearing (HDB)
• Fan Connector: 4-pin PWM
• TDP Compatibility: Up to 65W
• Thermal Paste: Pre-applied
• Rated Voltage: 12V DC
• Current: 0.15A
• Power Consumption: 1.8W
• Fan Life Expectancy: 50,000 hours
• Overall Height: 29 mm

Recommendations

For best performance, ensure your case has adequate airflow. This cooler is not recommended for CPUs with TDP exceeding 65W.
