Aktívny video konvertor InLine 17161I 3840x2160 HDMI na DisplayPort

Active signal conversion: Reliably connects HDMI signal sources to DisplayPort receivers via integrated converter.
Compatibility with UHD 4K60Hz: Supports high-resolution monitors and professional applications with up to 60 Hz refresh rate.
Includes USB power supply: Separate 5V/500mA supply via USB-C on HDMI side, adapter to USB-A included.
Rugged workmanship: High-quality materials, gold-plated contacts and durable sheathing for long-lasting use.
Versatile use: Ideal for workstations, conference rooms and digital signage in professional IT environments.

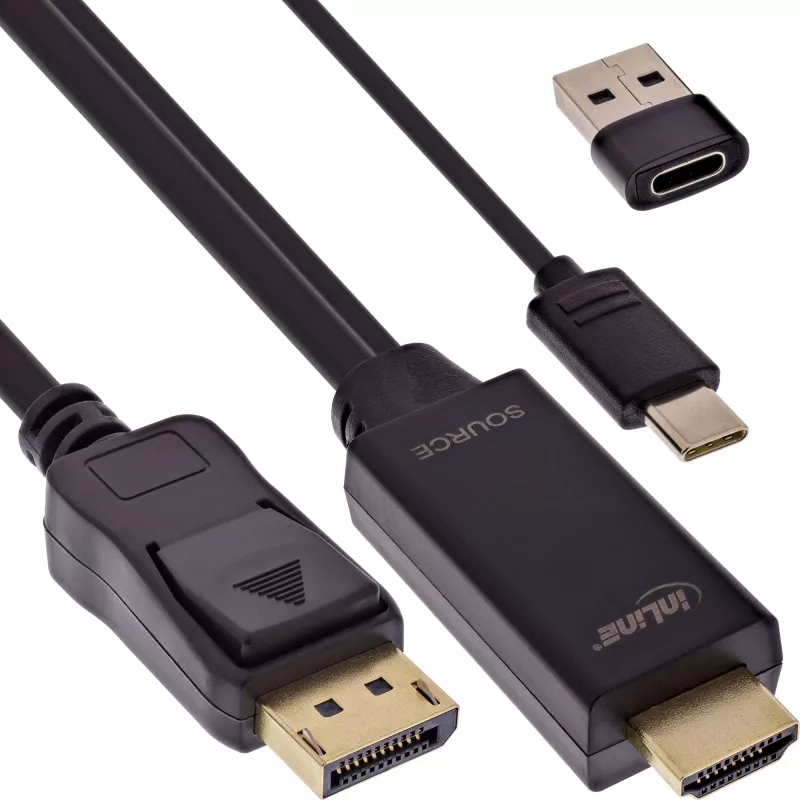

The InLine® HDMI to DisplayPort converter cable enables a reliable connection from HDMI signal sources such as PCs or notebooks to monitors with a DisplayPort input. The integrated active chipset converts the HDMI signal electronically so that even high-resolution content in 4K at 60 Hz can be transmitted smoothly and in great detail. An additional voltage of 5V/500mA is required on the HDMI side for the power supply. A short USB cable (USB-C with adapter to USB-A) is included for this purpose, which can be flexibly connected to USB ports. The cable is particularly suitable for use in professional environments such as system houses, offices or industrial facilities where HDMI outputs need to be combined with modern DisplayPort displays. Thanks to its robust workmanship and gold-plated contacts, stable signal transmission is guaranteed even during prolonged use. The different cable lengths offer maximum flexibility for different installation requirements.

HDMI plug to DisplayPort plug
Supports display resolutions up to UHD 3840x2160 @60Hz
USB cable: 0.3m length, USB-C plug incl. USB-A adapter
Colour: black

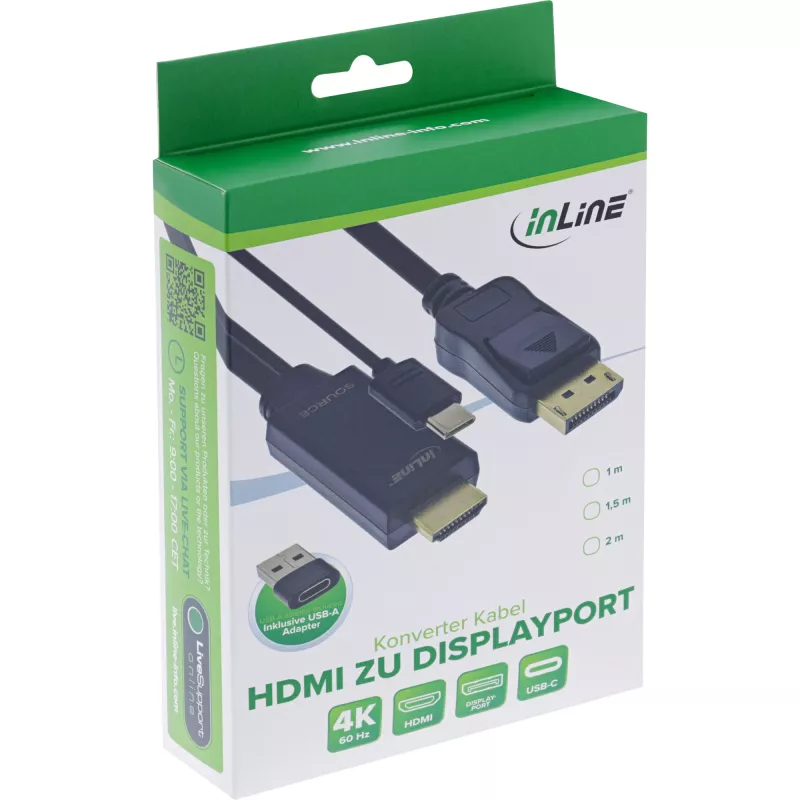

Packaging: resealable PE bag with EAN code

InLine 17161I. Cable length: 1 m, Product colour: Black, Converter type: Active video converter. Compliance certificates: RoHS, TÜV mark. Weight: 74 g, Width: 22 mm, Depth: 1000 mm. Package width: 120 mm, Package depth: 200 mm, Package height: 40 mm. Dimensions (WxDxH): 22 x 1000 x 13 mm

How to use

Connect the HDMI plug of the InLine 17161I to the HDMI output of your source device, and connect the DisplayPort plug to the DisplayPort input of your monitor. Provide external USB power (5 V / 500 mA) to the converter on the HDMI side if the source device does not supply sufficient power. After connections are made and the power is applied, set the display input on the monitor to the DisplayPort source and configure the resolution in the source device's graphics settings as needed.

Recommendations

Use a stable 5 V / 500 mA USB power supply for reliable operation. For best results at 3840 x 2160 @30fps, ensure cables and connected devices support the required bandwidth and set the source device to the matching output resolution and refresh rate.
