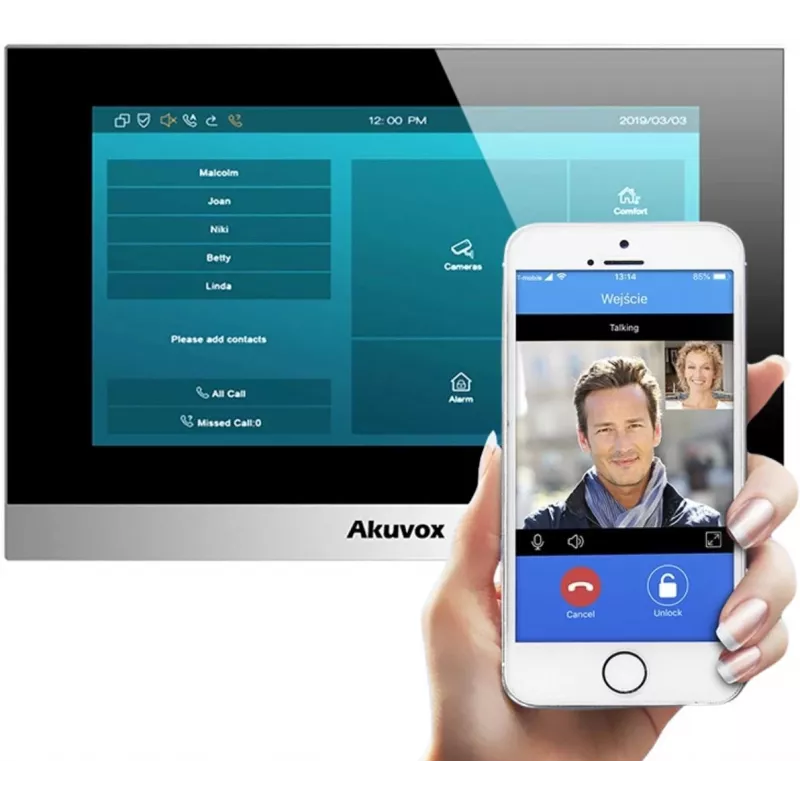

AKUVOX C313W-2 Monitor videodomofónu 7" dotykový displej Android 6.0 PoE

The AKUVOX C313W-2 is a high-performance video door phone monitor designed for modern residential and commercial access control systems. Featuring a 7-inch TFT LCD capacitive touch screen with 1024x600 resolution, this monitor delivers clear and responsive visual communication. Powered by Android 6.0 and a quad-core Cortex-A35 processor, it offers smooth operation and reliable performance. The device supports SIP 2.0 for seamless integration with VoIP systems and includes built-in Wi-Fi (802.11 b/g/n) and Ethernet for flexible networking. With PoE (IEEE 802.3af) support, installation is simplified by combining power and data over a single cable. The C313W-2 also features a 2W speaker, microphone, 8 alarm inputs, and 1 relay output, making it suitable for advanced security setups.

Advantages

This monitor combines a large touch screen with Android OS, providing an intuitive user interface and the ability to run compatible apps. PoE support reduces cabling complexity, while the robust audio and video codecs ensure clear communication. The device's compact wall-mountable design fits seamlessly into any environment.

Suitable for

• Residential video door phone systems
• Office and commercial access control
• Integration with SIP-based intercom networks
• Security systems requiring alarm inputs and relay control

Key specifications

• Display: 7 inch TFT LCD Capacitive Touch Screen, 1024x600
• Operating System: Android 6.0
• Processor: Quad-core Cortex-A35
• Memory: 1GB DDR3 RAM, 8GB eMMC storage
• Network: 1x 10/100Mbps RJ45, Wi-Fi 802.11 b/g/n
• Power: 12V DC or PoE (IEEE 802.3af)
• Audio: G.711a/u, G.722, G.729 codecs; 2W speaker, microphone
• Video: H.264 codec
• I/O: 8 alarm inputs, 1 relay output
• Mounting: Wall-mounted (surface)
• Operating Temperature: -10°C to 45°C

Recommendations

For optimal performance, use with a PoE switch or injector compliant with IEEE 802.3af. Ensure the device is mounted in a dry, indoor location within the specified temperature range. Pair with AKUVOX door stations for a complete intercom solution.
