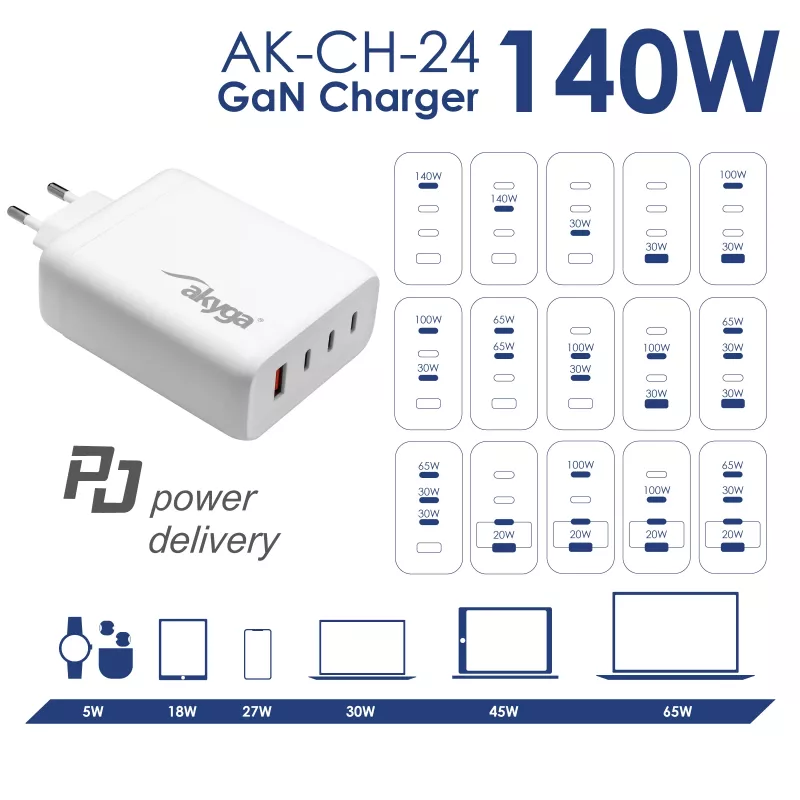

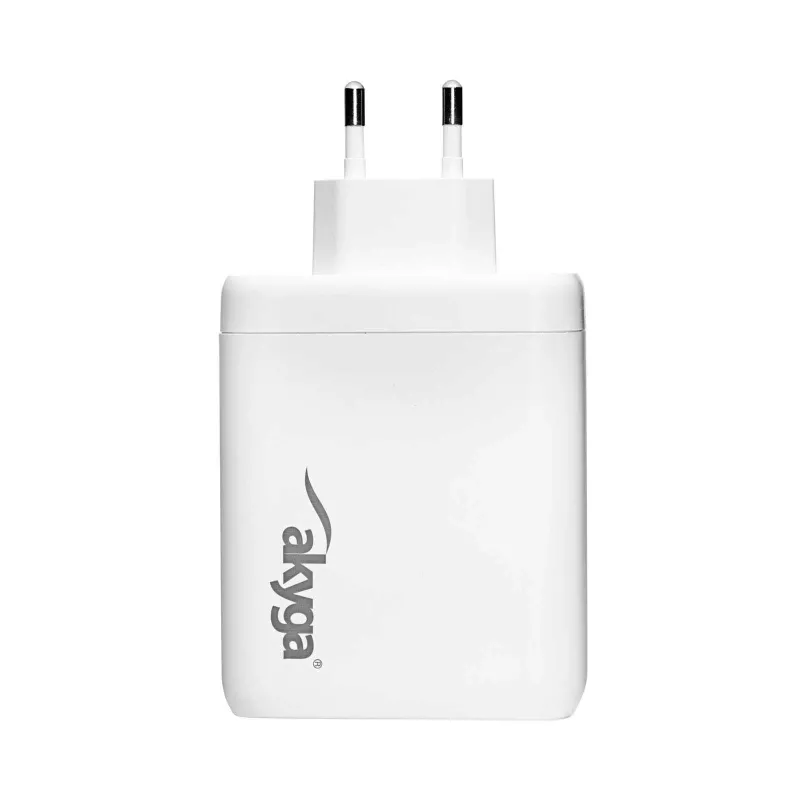

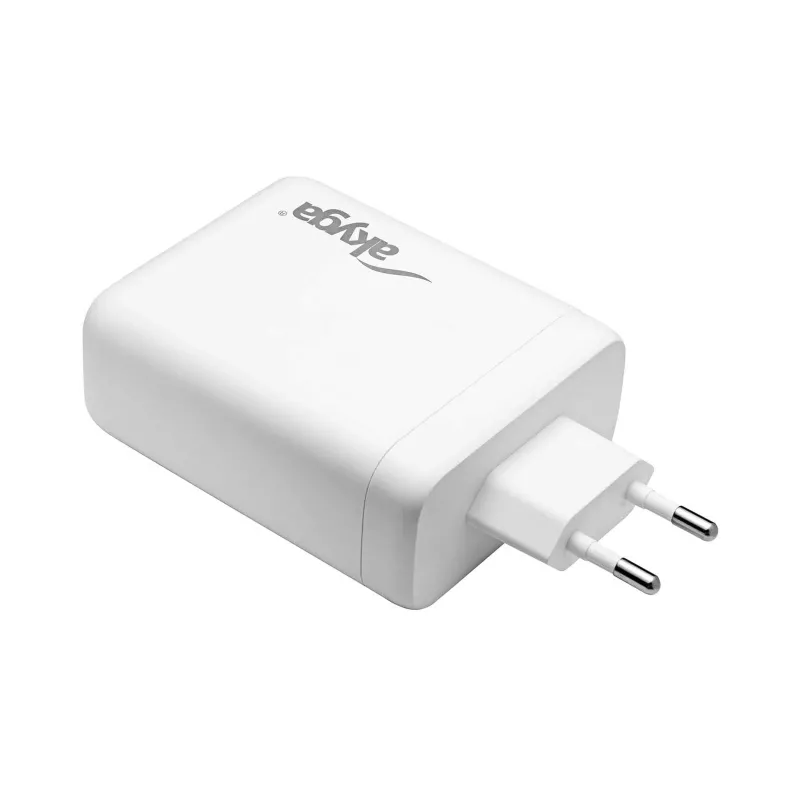

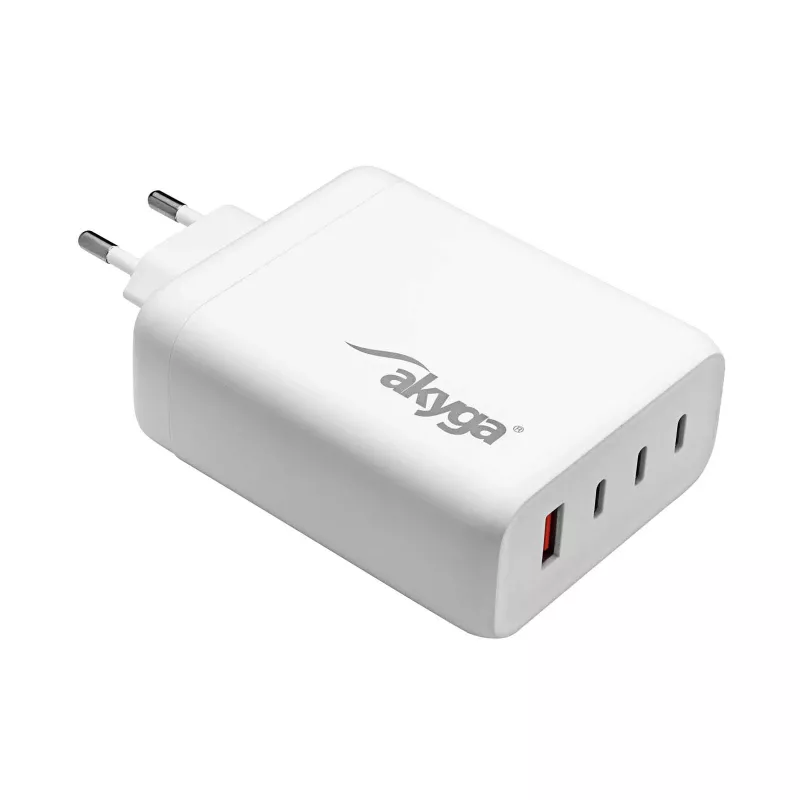

Akyga AK-CH-24 GaN USB nabíjačka 140 W, 3 x USB-C PD + USB-A, biela

The Akyga AK-CH-24 is a GaN USB charger delivering up to 140 W of power. It features three USB-C ports and one USB-A port, allowing multiple devices to be charged simultaneously. The charger supports Power Delivery and Quick Charge technologies for automatic power adjustment.

Key features

• GaN technology for efficient and compact design

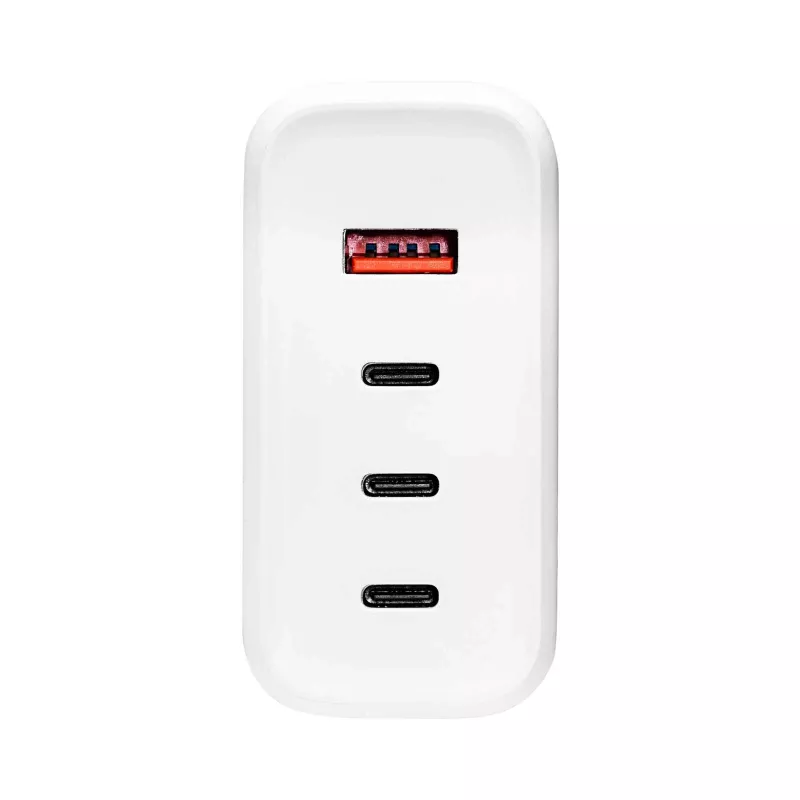

• Three USB-C ports and one USB-A port
• Supports Power Delivery and Quick Charge
• Wide voltage range: 5–28 V, current: 1.5–5 A
• Universal brand compatibility

Specifications

• Product colour: White
• Brand compatibility: Universal
• AC input voltage: AC 100-240V
• AC input frequency: 50/60 Hz
• USB Power Delivery up to: 140W
• USB Power Delivery (USB PD): Yes
• Output current: 1.5-5 A
• Output voltage: 5-28 V
• Output power: 140 W
• Brand: Akyga
• MPN: AK-CH-24
• Product type: AC/DC adapter
• Series: Universal
• Supply voltage: 110-240 V / 50/60 Hz
• Power consumption: < 0.5 A
• Maximum power: 140 W
• Standard: Quick Charge 3.0, Power Delivery 3.0, GaN
• Mechanical switch: None
• Ground wire: None (II protection class)
• OVP: Yes
• OCP: Yes
• OTP: Yes
• SCP: Yes
• Power supply connector: CEE 7/16 (Europlug)
• USB-A output voltage: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A (Max. 30 W)
• USB-C output voltage: PD1/PD2: 5.2 V / 3 A, 9 V / 3 A, 15 V / 3 A, 20.5 V / 5 A, 28 V / 5 A (Max. 140 W), PD3: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 15 V / 2 A, 20 V / 1.5 A (Max. 30 W)
• Compliance with DCP (Dedicated Charging Port): Yes
• Material: ABS
• Display: None
• MTBF: 100000 h
• Temperature: 5 - 50 °C
• Package: EcoBox
• Product size (L x W x H): 121 x 70 x 35 mm
• Net weight: 266 g
• CE compatibility: Yes
• FCC compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
