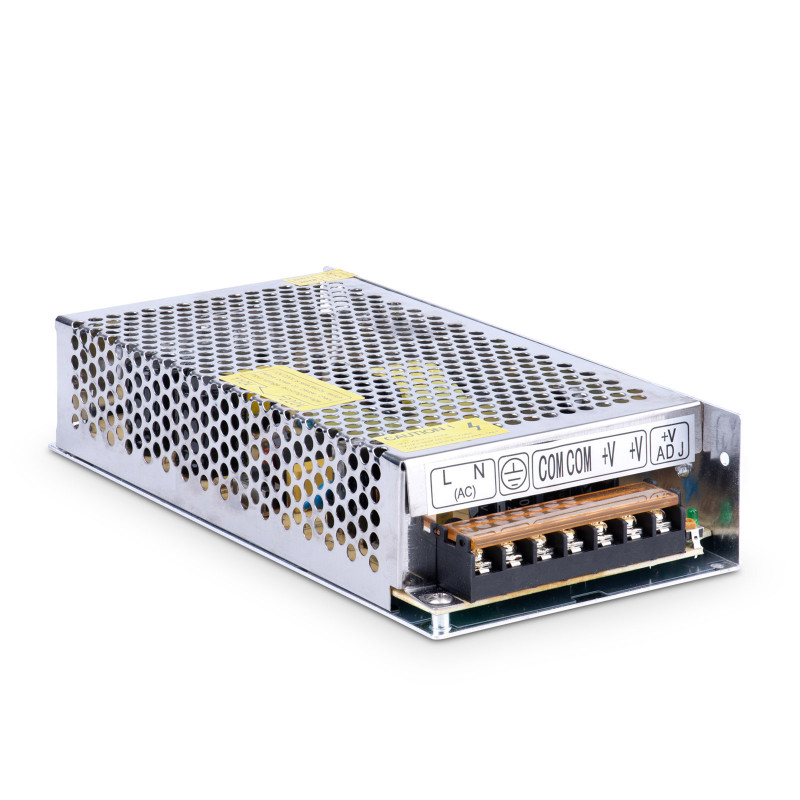

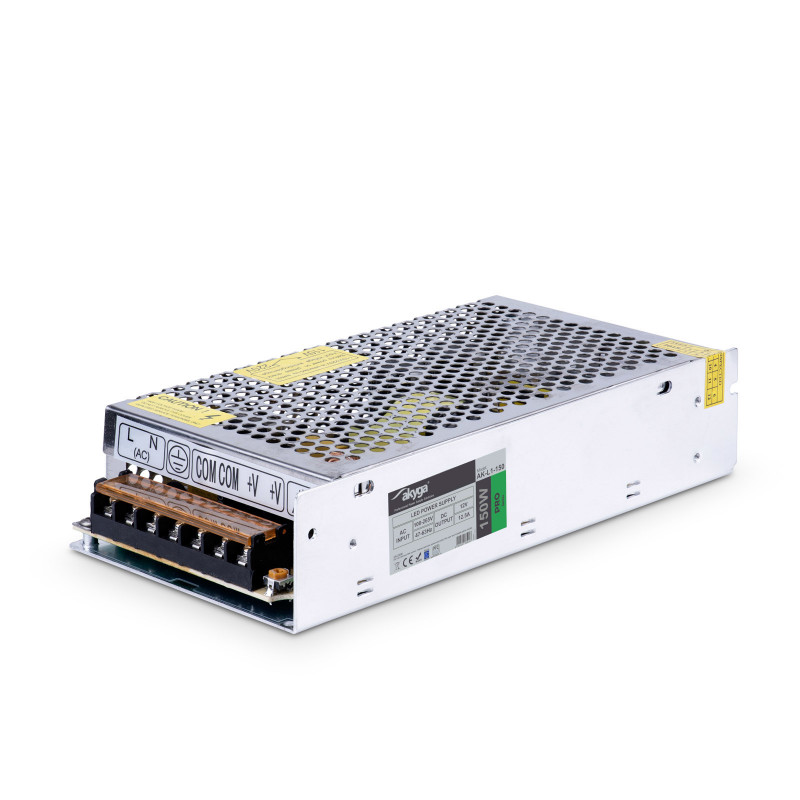

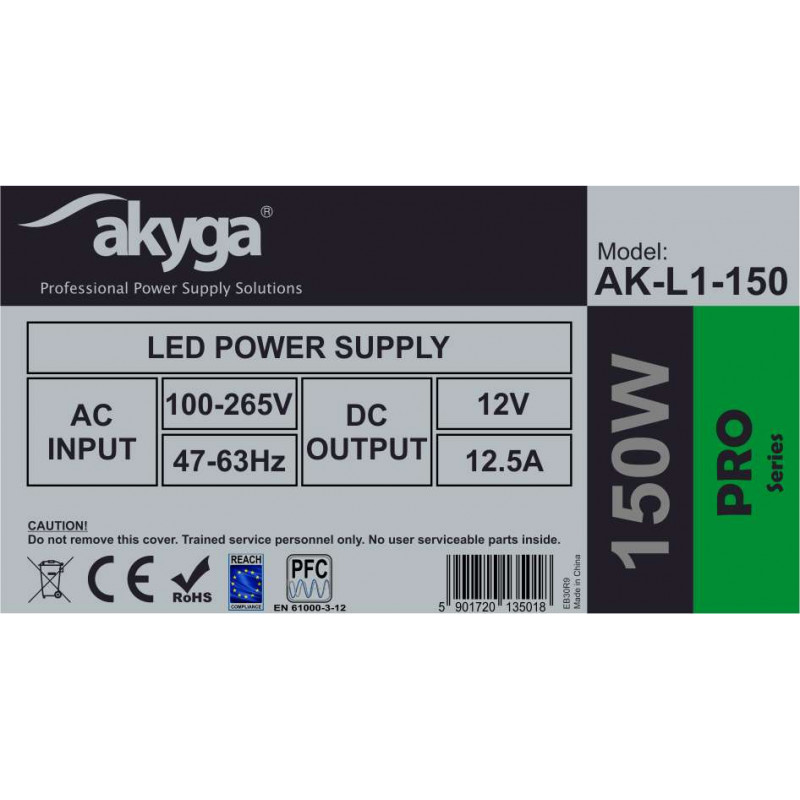

Akyga AK-L1-150 LED spínaný napájací zdroj 12 V, 12,5 A, 150 W, IP20

The Akyga AK-L1-150 is a 150W LED power supply designed for industrial automation systems, machine control, and LED lighting. It delivers 12V DC at 12.5A and features a potentiometer for voltage regulation between 11 and 15V DC.

Key features

• Power supply for LED strips, LED bulbs, LED panels, RGB LED drivers, and other electronic equipment
• Voltage regulated by potentiometer (11–15V DC)
• Current capacity 12.5A
• Can power two different circuits simultaneously
• Protections: OVP, OCP, OPP, OTP, SCP
• Screw power supply connector
• IP20 rating

Specifications

• Brand: Akyga
• MPN: AK-L1-150
• Product type: LED power supply
• Series: Pro
• Supply voltage: 100–265 V
• Mechanical switch: None
• IP rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• OTP: Yes
• SCP: Yes
• Power supply connector: Screw
• Temperature: 5–50 °C
• Product size (L x W x H): 199 x 97 x 42 mm
• Net weight: 439 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720135018
