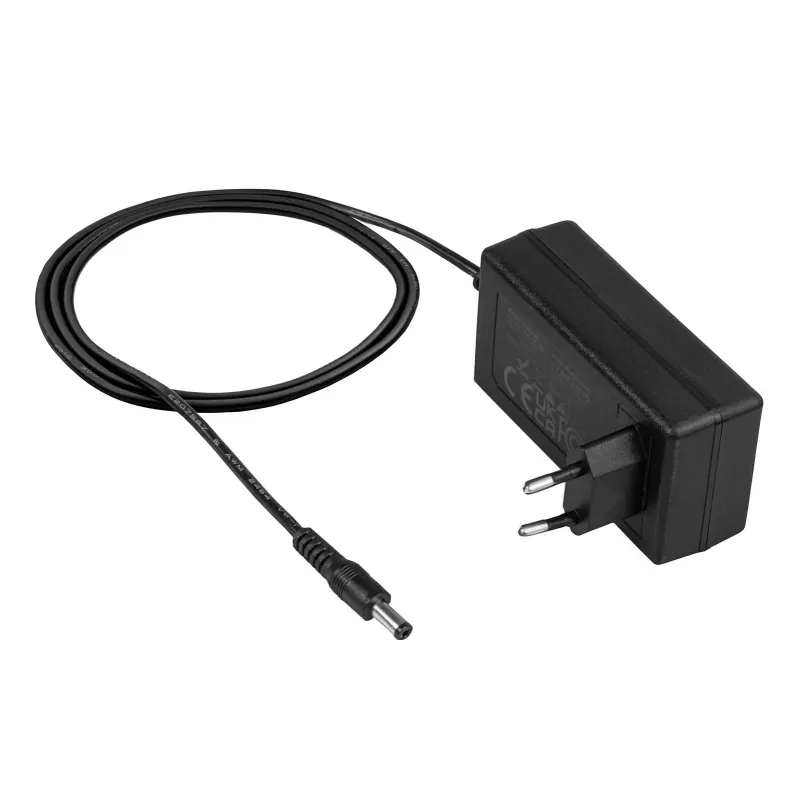

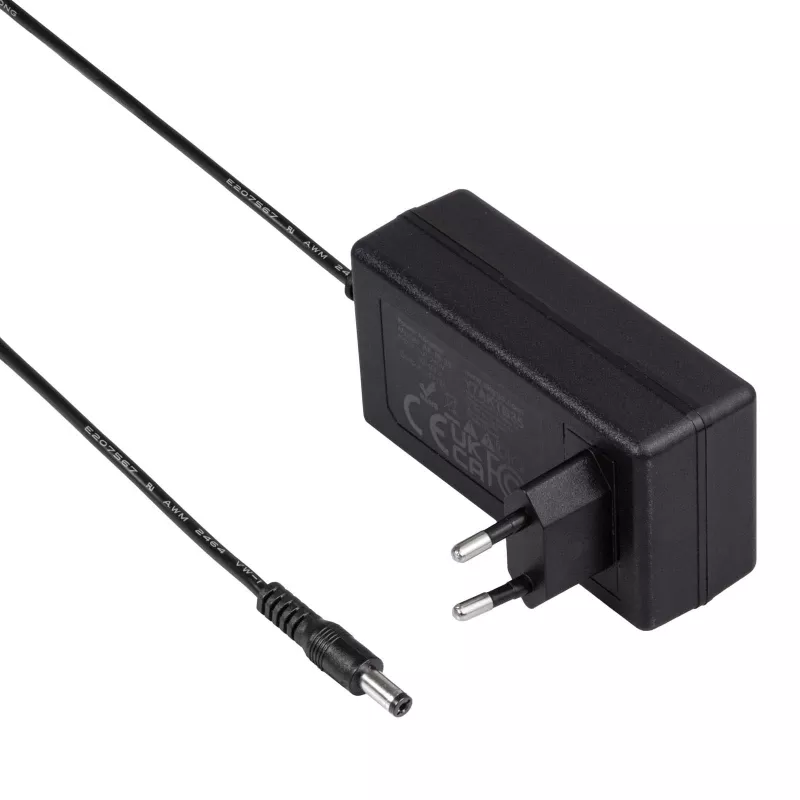

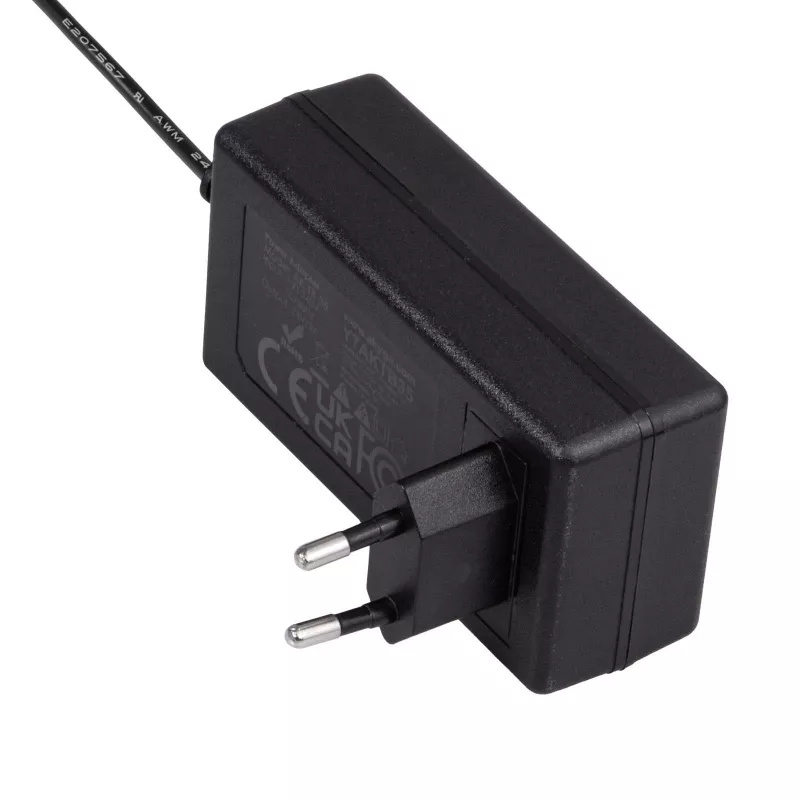

Akyga AK-TB-12 univerzálny napájací zdroj, 12 V, 3 A, 36 W, 5,5 x 2,1 mm, 1,4 m

The Akyga AK-TB-12 is a universal AC/DC power adapter delivering 12 V and 3 A for a maximum output power of 36 W. It features a 5.5 x 2.1 mm power plug and a 1.4 m cable equipped with a ferrite core to protect devices from mode currents and high frequency noise. The adapter includes over voltage, over current, over power, overheating and short circuit protection.

Key features

• Universal AC/DC adapter
• 12 V output voltage, 3 A output current, 36 W maximum power

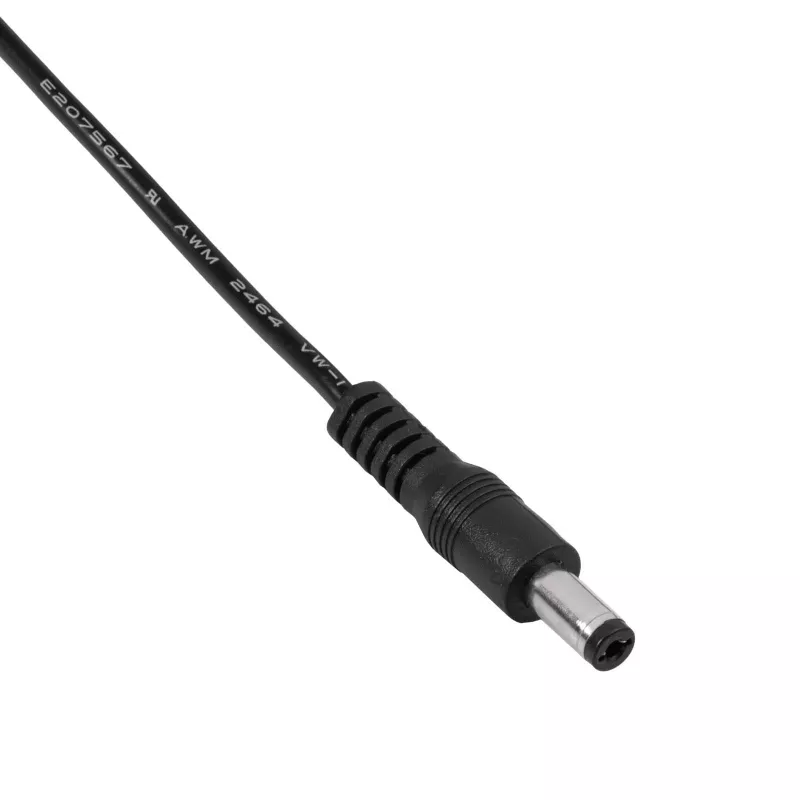

• 5.5 x 2.1 mm power plug
• 1.4 m cable with ferrite core
• Protection features: OVP, OCP, OPP, OTP, SCP
• Black ABS housing

Specifications

• Brand: Akyga
• MPN: AK-TB-12
• Product type: AC/DC adapter
• Series: Universal
• Input voltage: 110 - 240 V
• Output voltage: 12 V
• Output current: 3 A
• Output power: 36 W

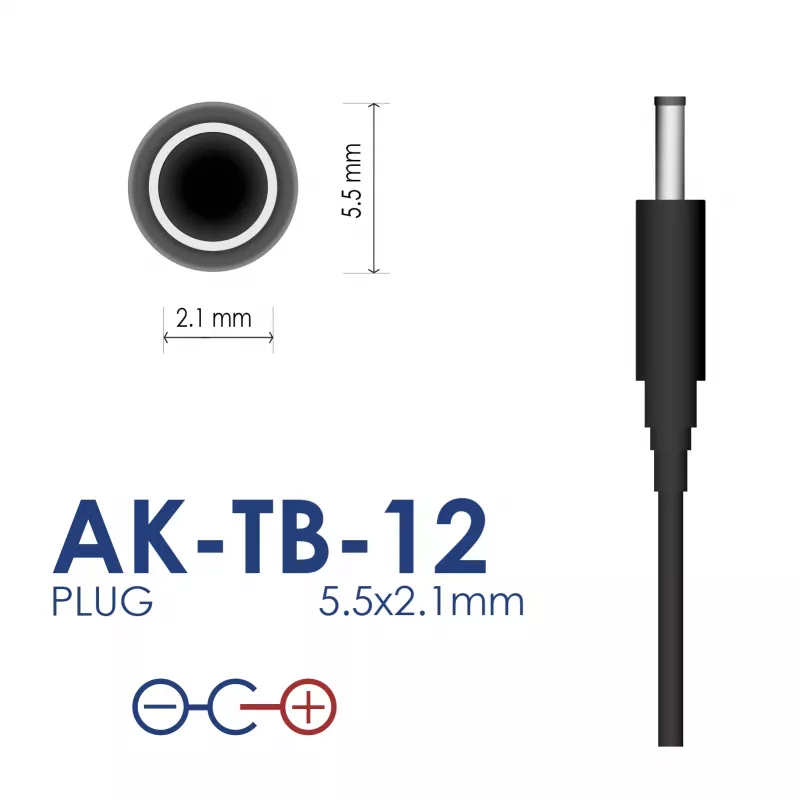

• Power plug: 5.5 x 2.1 mm
• Pin length: 10 mm
• Cable length: 1.4 m
• Power protection features: Over voltage, Over current, Over power, Overheating, Short circuit
• Housing material: ABS
• Product colour: Black
• MTBF: 100000 h
• Temperature: 5 - 50 °C
• Product size (L x W x H): 90 x 70 x 46 mm
• Weight: 108 g
• Compliance certificates: CE, RoHS
