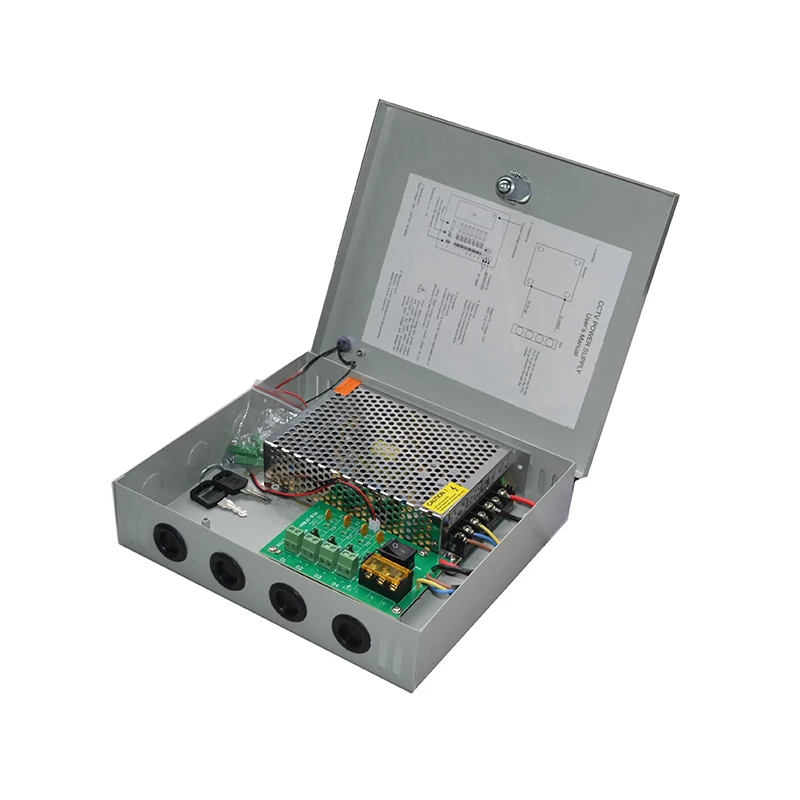

PD Power PCS-120-5M 5-kanálový 12V 10A PTC napájací zdroj pre CCTV a LED

Central power supply unit delivering 12V DC with 10A total current across five PTC-protected channels, each rated up to 2A. Ideal for powering multiple CCTV cameras, security systems, or LED lighting from a single reliable source.

Advantages

Five independent outputs with resettable PTC fuses eliminate the need for separate power adapters, simplifying installation and reducing cable clutter. Passive cooling ensures silent, maintenance-free operation, while the metal enclosure provides robust protection in demanding environments.

Suitable for

• CCTV and IP camera installations
• Security and access control systems
• LED lighting arrays
• Industrial control panels
• DIY electronics projects requiring multiple 12V feeds

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 12V DC, total 10A
• 5 channels, max 2A per channel
• PTC resettable fuse per channel
• Protection: overload, short circuit, over voltage
• Efficiency: >80%
• Metal enclosure, fanless design
• LED power indicator
• Operating temperature: -10°C to 50°C
• Certifications: CE, RoHS

Recommendations

For maximum reliability, ensure total load does not exceed 10A and each channel stays within 2A. Mount in a ventilated area and use appropriate wire gauges for the distance. This PSU is an excellent choice for professional security installers and advanced hobbyists.
