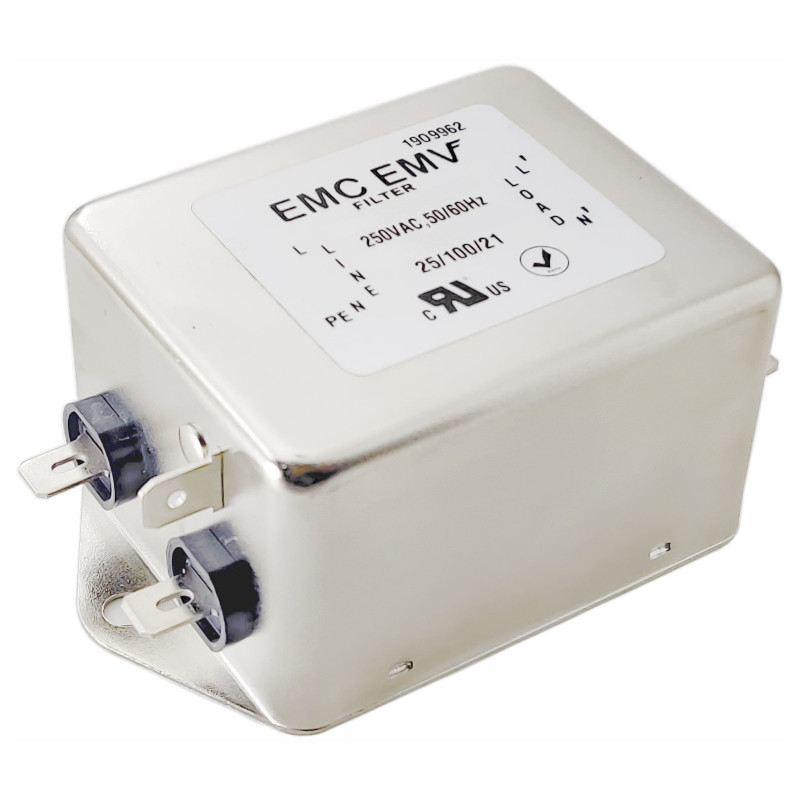

Akyga EN2070-12-F jednofázový EMV sieťový filter 12 A, 120–250 V AC, 50/60 Hz, konektory 6,3 mm

The Akyga EN2070-12-F is a single phase EMI filter designed for reliable protection against electromagnetic interference at medium and higher loads. It is suitable for automation systems, power supplies, and industrial equipment where clean power supply and operational reliability are important.

Key features

• Rated for up to 12 A
• 6.3 mm connectors for quick and easy installation
• Compact metal housing for durability and effective interference shielding
• Anti-interference filter type

Specifications

• Brand: Akyga
• MPN: EN2070-12-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 153 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138828
