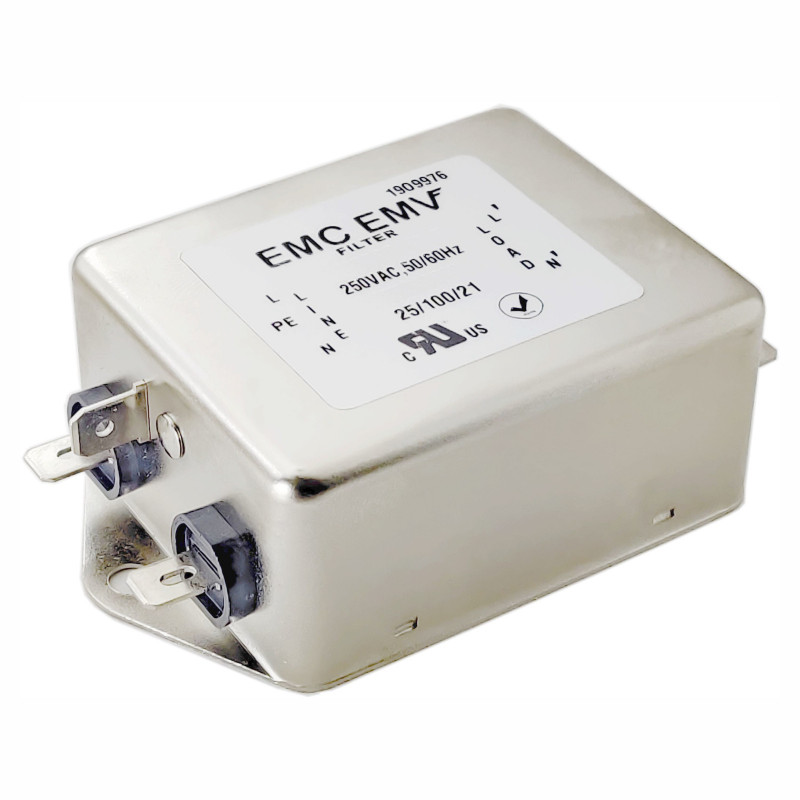

Akyga EN2080-3-F jednofázový EMV sieťový filter 3 A, 120–250 V AC, 50/60 Hz, konektory 6,3 mm

The Akyga EN2080-3-F is a single-phase EMI filter designed to protect precision electronic equipment from electromagnetic interference. With a maximum working current of 3 A, it is suitable for automation, laboratory equipment, and measurement systems. The filter features a metal housing and 6.3 mm connectors for installation.

Key features

• Anti-interference EMI filter
• Maximum working current: 3 A
• Leads: 6.3 mm connectors
• Number of poles: 2
• Metal housing
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Operating temperature: -25°C to +100°C

Specifications

• Brand: Akyga
• MPN: EN2080-3-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 3 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 86 x 52 x 38 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138880
