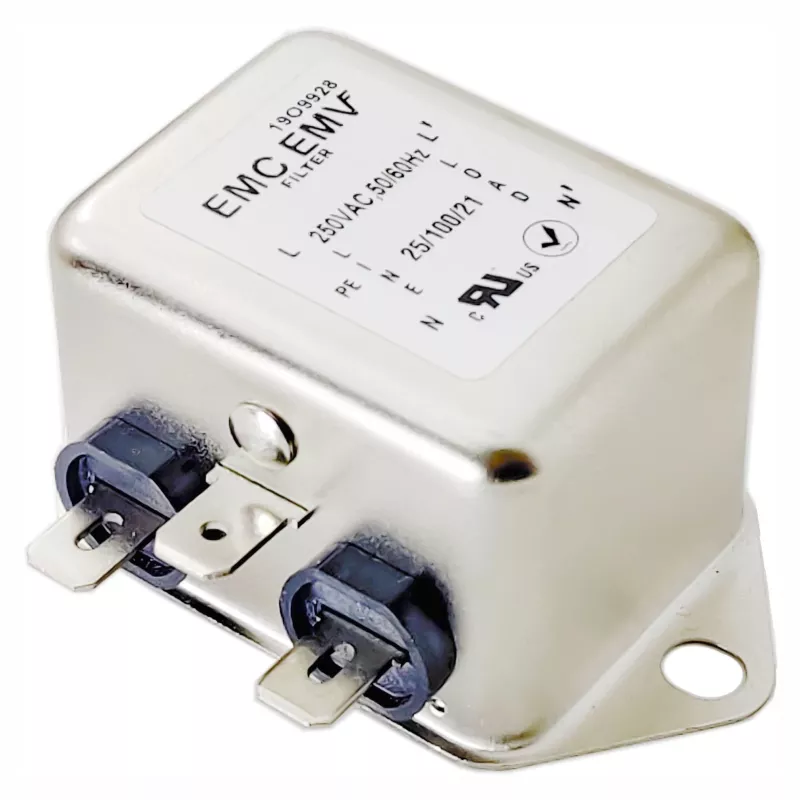

Akyga EN2090-3-F jednofázový EMI filter, 3 A, 120–250 V AC, 50/60 Hz, 6,3 mm konektory

The Akyga EN2090-3-F is a single-phase EMI filter designed to protect sensitive electronic equipment from electromagnetic interference. It is suitable for measurement systems, automation, medical equipment and office equipment where power supply stability and reliability are crucial.

Key features

• Single-phase EMI filter
• Metal housing
• 6.3 mm connectors for quick installation
• Low leakage current

Specifications

• Rated current: 3 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: 6.3 mm connectors
• Leakage current: 0.29 mA @120 VAC 60 Hz, 0.50 mA @250 VAC 50 Hz
• Operating temperature: -25 - 100 °C
• Material: Metal
• Dimensions (L x W x H): 86 x 52 x 29 mm
• Compliance certificates: CE, RoHS, REACH
