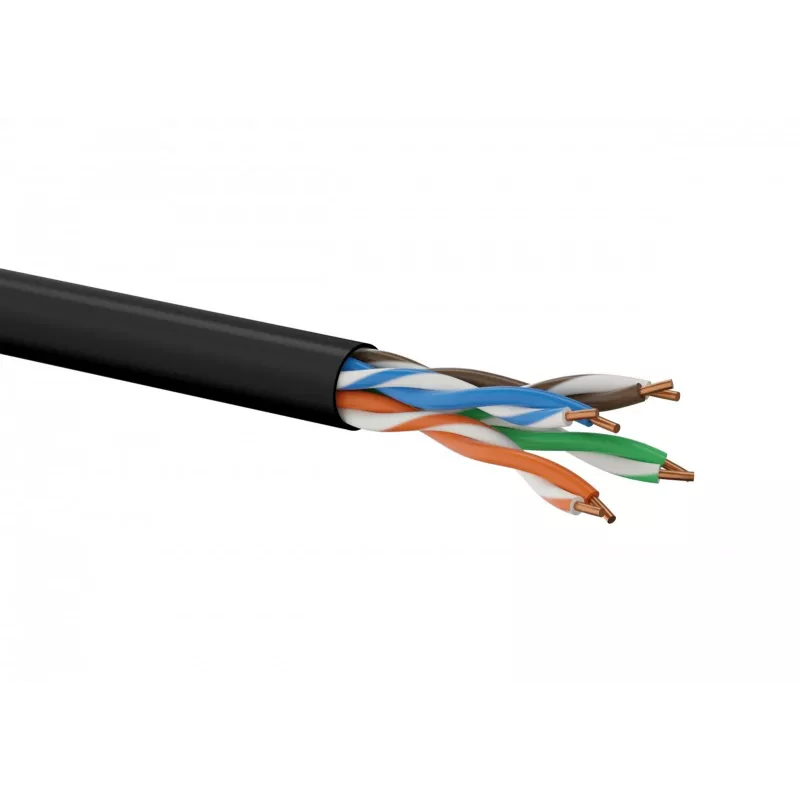

Sieťový kábel A-LAN KIU5OUTZ305 U/UTP Cat5e 305 m sivý

The A-LAN KIU5OUTZ305 U/UTP Cat5e networking cable is a 305-metre unshielded twisted pair cable designed for structured cabling systems. Manufactured to meet ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2 standards, each cable is tested and verified by INTERTEK. The cable contains eight colour-coded polyethylene-insulated conductors twisted into four pairs with varying lay lengths and is jacketed with a heat-resistant PVC sheath. The outer sheath is printed with the part number, specification details and a unique 305 m marking on the box to simplify measurement of installed length and remaining cable.

Advantages

The A-LAN KIU5OUTZ305 delivers Cat5e performance for Ethernet and data applications with consistent electrical parameters verified by INTERTEK. Its U/UTP construction minimises crosstalk and supports reliable data transmission while the heat-resistant PVC sheath and nylon rip cord improve durability and ease of installation. The printed sheath and 305 m box marking allow for quick on-site length checks.

Suitable for

• Ethernet networks (10/100/1000 Mbps) in homes and offices
• Patch panels and horizontal cabling in structured cabling systems
• Connecting network devices such as switches, routers and PCs (requires separate connectors or pre-terminated ends)

Key specifications

• Standard: ISO/IEC 11801 2nd Edition, EN 50173:2007, ANSI/TIA/EIA-568-B.2
• Verification: INTERTEK tested

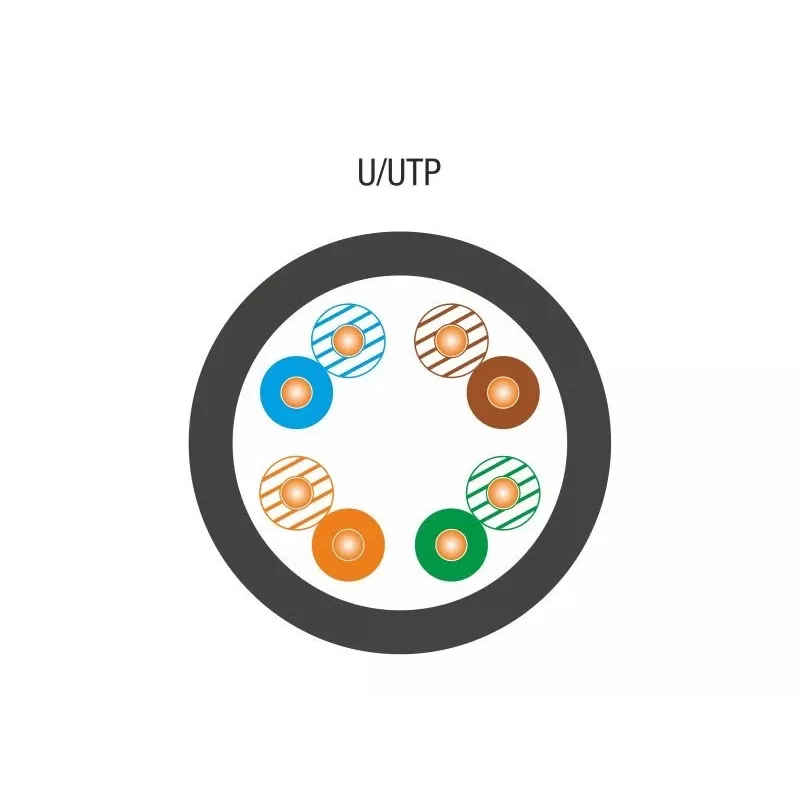

• Cable type: U/UTP (unshielded twisted pair) Category 5e
• Conductors: 8 colour-coded polyethylene insulated conductors, 4 twisted pairs
• Jacket: Heat-resistant PVC with printed part number and markings
• Length: 305 m
• Colour: Grey

How to use

Measure and cut the required length from the 305 m spool, use the nylon rip cord to remove the outer sheath, then separate and prepare the colour-coded conductors for termination. Terminate the pairs to connectors, keystone jacks or patch panels following the appropriate wiring standard (T568A or T568B). Ensure proper cable management and maintain bend radius recommendations during installation to preserve signal performance.

Recommendations

The cable is intended for indoor structured cabling; avoid exposure to prolonged sunlight, excessive moisture or mechanical damage. Use compatible RJ45 connectors or panel jacks and follow local installation codes and best practices for cable routing, support, and testing after installation.
