All-in-One PC ProDVX APPC-10SF — 10,1" IPS HD dotykový displej, Rockchip 2 GHz, 4 GB RAM, 16 GB eMMC, Android 13

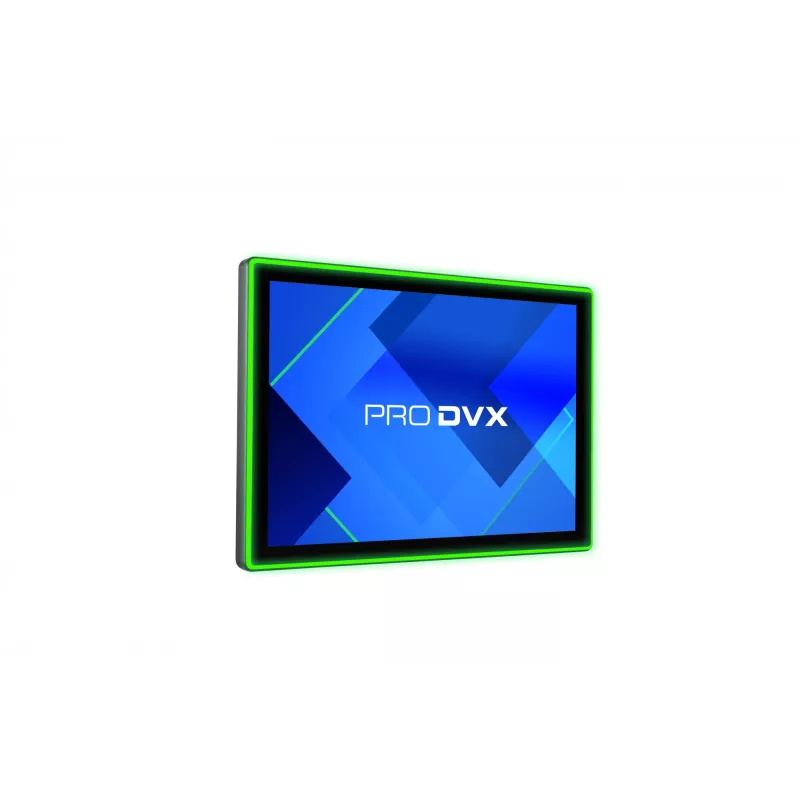

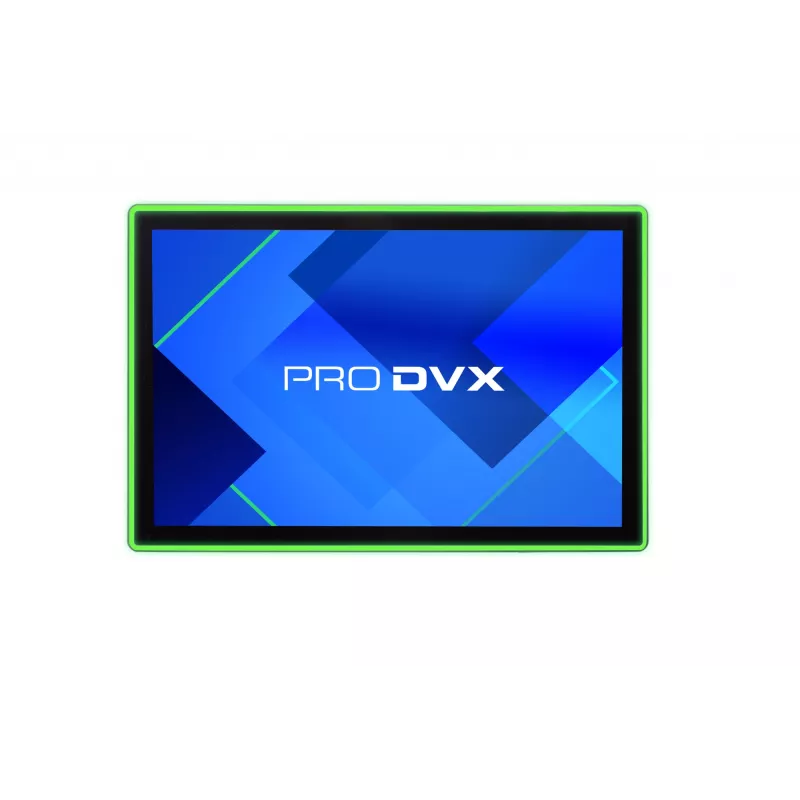

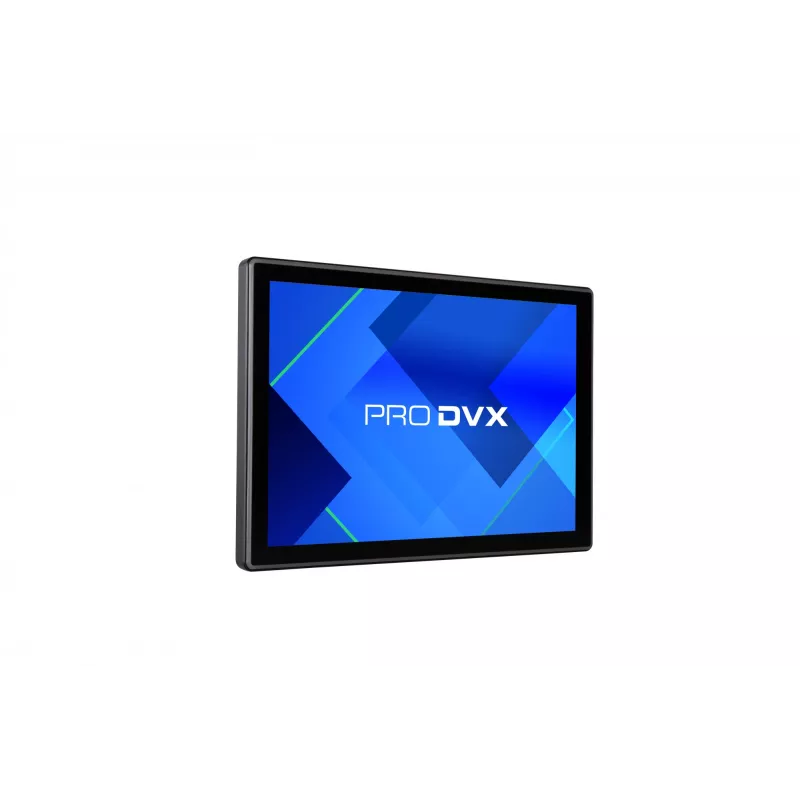

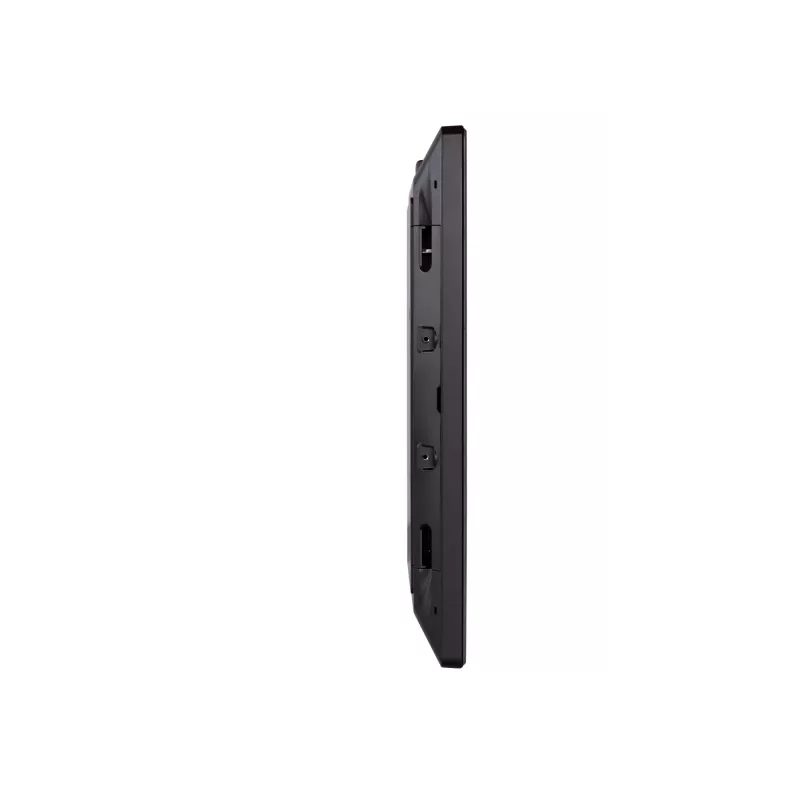

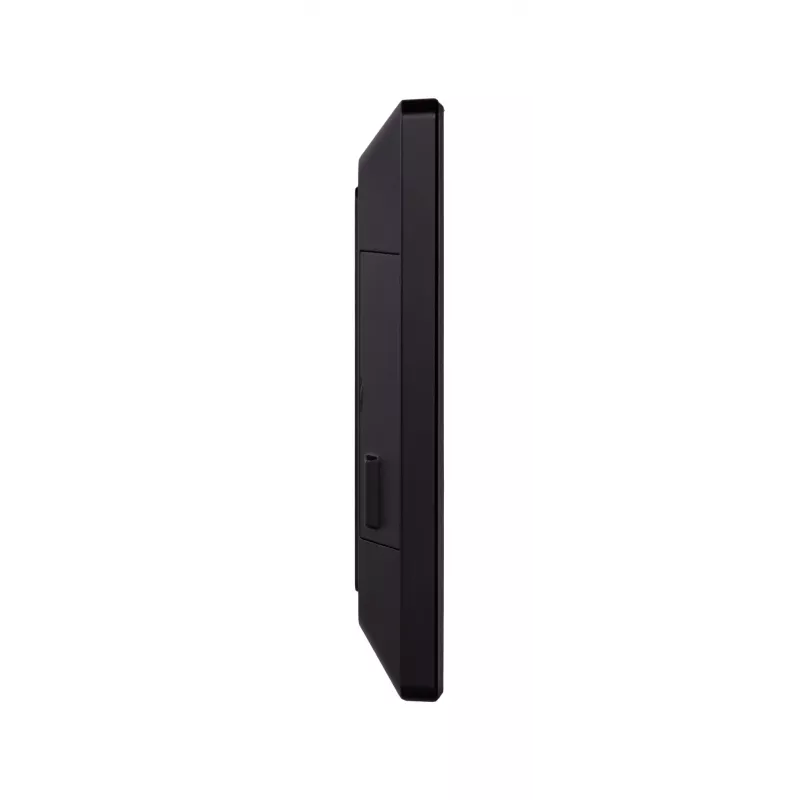

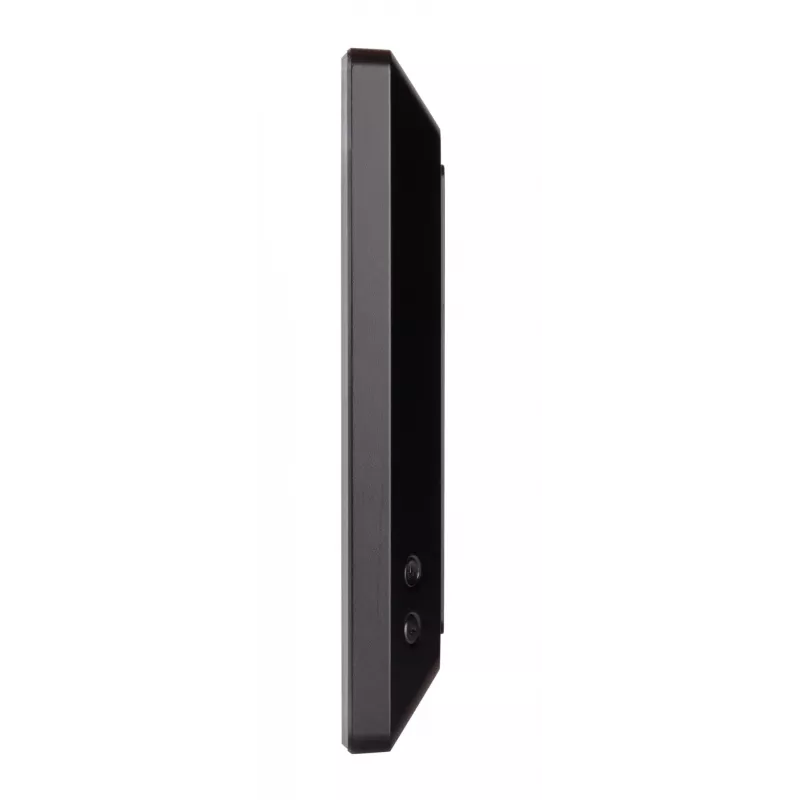

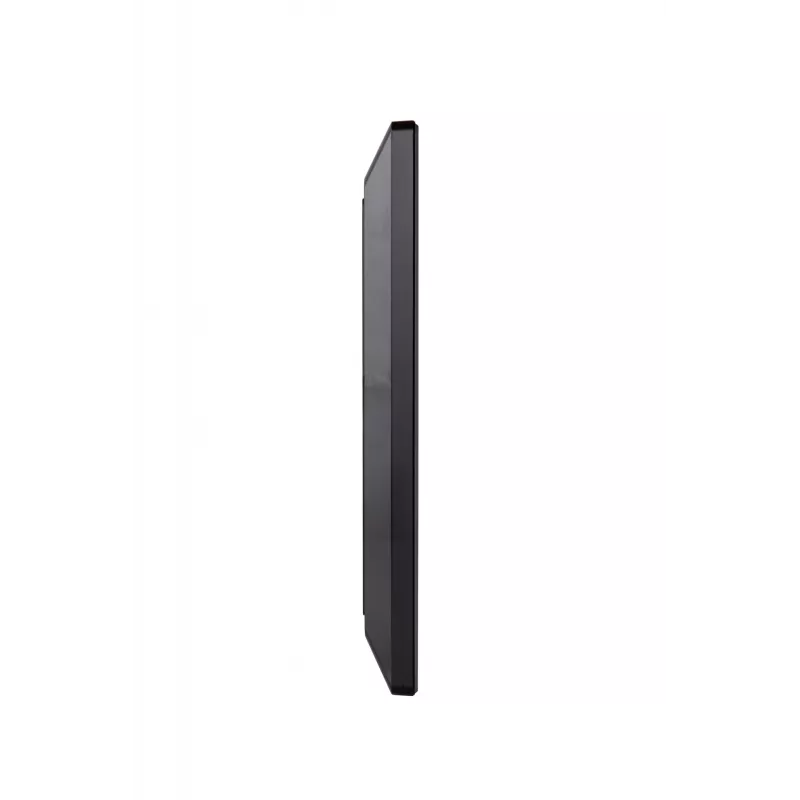

The ProDVX APPC-10SF is a compact All‑in‑One PC with a 10.1" (25.6 cm) IPS HD touchscreen (1280×800) running Android 13. Designed for continuous operation, it is powered by a Rockchip RK3568 quad‑core processor up to 2.0 GHz, paired with 4 GB LPDDR4 RAM and 16 GB eMMC storage. The matte IPS display with 1000:1 contrast ratio and anti‑glare finish supports responsive touch interaction for kiosks, digital signage and interactive point‑of‑sale solutions. The unit integrates Mali‑G52 graphics, built‑in speakers, mini‑HDMI output and VESA mounting for flexible installation. A Full Surround customizable RGB LED bar provides visual status indication or branding opportunities while fanless cooling and robust housing support reliable 24/7 use.

Advantages

The APPC-10SF combines a small footprint with industry‑grade features: a high‑quality IPS touchscreen for wide viewing angles, a quad‑core Rockchip processor tuned for smooth Android performance, and Mali‑G52 graphics for UI rendering. Built‑in speakers, multiple connectivity options including Ethernet and PoE+, and VESA compatibility simplify integration into retail, hospitality and information kiosks. The integrated Full Surround LED bar offers customizable lighting for status alerts or brand accenting without external accessories. Fanless design and durable materials contribute to low maintenance and extended operational life.

Suitable for

• Interactive kiosks and information stands
• Retail point‑of‑sale and self‑checkout terminals
• Digital signage and wayfinding displays
• Hospitality check‑in / ordering interfaces
• Healthcare patient check‑in or bedside information panels
• Industrial HMI and control panels requiring compact touch displays

Key specifications

• Display: 10.1" (25.6 cm) IPS touchscreen, 1280 × 800 (HD), matte anti‑glare finish
• Processor: Rockchip RK3568 quad‑core, up to 2.0 GHz
• Memory & Storage: 4 GB LPDDR4 RAM, 16 GB eMMC internal storage
• Graphics: Arm Mali‑G52 GPU
• Contrast ratio: 1000:1 (typical)
• Audio: integrated speakers
• Connectivity: Gigabit Ethernet, Wi‑Fi (with 802.1X support), PoE+ capable, USB ports, mini‑HDMI output, optional NFC via PoGo connector
• Operating system: Android 13

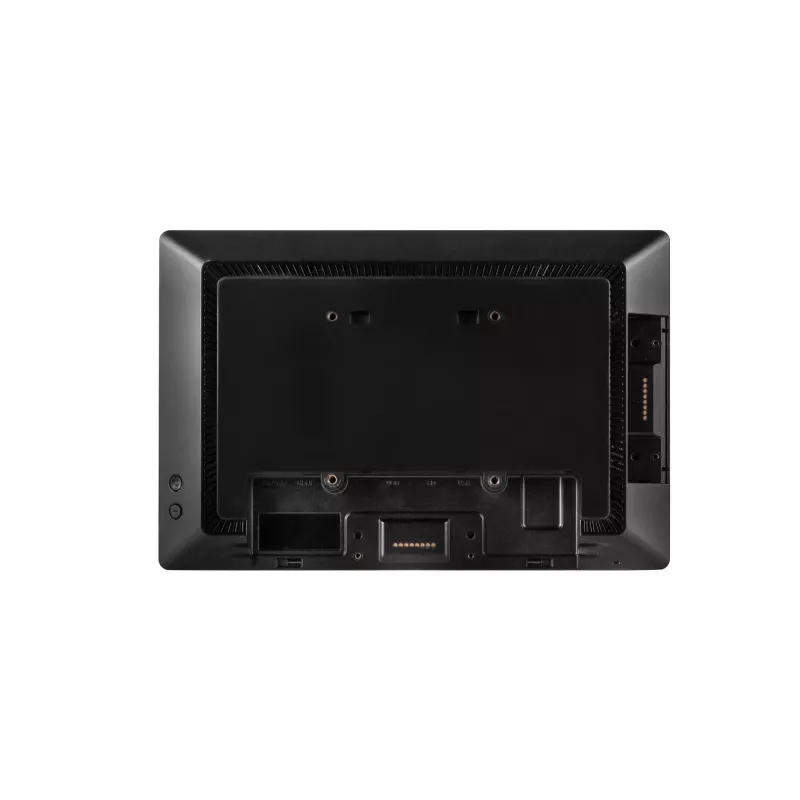

• Mechanical: VESA mounting compatible, fanless cooling, product colour black, weight approx. 0.6 kg
• Reliability: designed for 24/7 operation with demonstrated MTBF around 50,000 hours
• Lighting: Full Surround RGB LED bar with individually controllable LEDs

How to use

Mount the APPC-10SF using a compatible VESA bracket or place it on a stable surface. Connect power and required network or peripheral cables (Ethernet, USB, mini‑HDMI) and configure PoE+ if used. Power on the unit and complete the initial Android 13 setup, including network configuration and security settings. Install or sideload industry applications as needed and configure the Full Surround LED bar via the supplied control interface to reflect status or branding. Use built‑in speakers and display settings in Android to adjust audio levels and screen brightness for the installation environment.

Recommendations

For continuous 24/7 operation, install the unit in a ventilated environment free from direct heat sources, avoid exposure to moisture and clean the screen with a soft, lint‑free cloth. When deploying multiple devices, centralize software updates and LED profiles to ensure consistent behavior across all units. For secure network use enable 802.1X authentication and keep Android and application software up to date.
