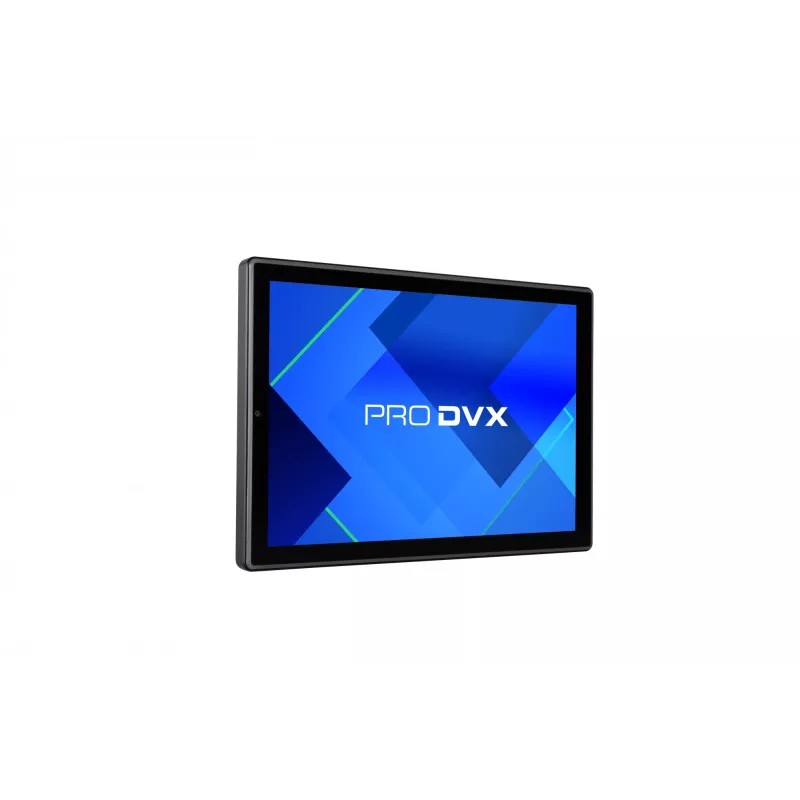

All-in-One PC ProDVX APPC-10SFA — 10,1" IPS HD dotykový displej, Rockchip 2 GHz, 4 GB RAM, 16 GB eMMC, Android 13, čierny

ProDVX APPC-10SFA is an all-in-one Android panel PC with a 10.1" (25.6 cm) IPS HD touchscreen (1280 × 800) designed for digital signage, kiosks and compact workspaces. The device is powered by a Rockchip RK3568 quad-core processor at 2 GHz, runs Android 13, and includes 4 GB LPDDR4 memory with 16 GB eMMC storage. Built-in components such as a front-facing 5 MP camera, speakers, an integrated NFC reader, a radar motion sensor and a Full Surround RGB LED bar expand interaction options. The unit supports VESA mounting, offers fanless cooling and PoE+ capability, and is engineered for continuous 24/7 operation with a long mean time between failures.

Advantages

The APPC-10SFA combines a compact, direct-bonded IPS touchscreen with a responsive 1280×800 resolution and a 1000:1 contrast ratio for clear visuals in confined installations. Its Rockchip RK3568 processor with 4 GB RAM provides consistent performance for Android 13 applications while the 16 GB eMMC and SD card expansion allow local content storage. The integrated NFC reader and front camera enable contactless interactions and visual capture without extra peripherals. A Full Surround LED bar and radar motion sensor add configurable status indication and automated proximity detection. Fanless cooling and rugged housing reduce maintenance needs in continuous-use environments.

Suitable for

• Interactive kiosks and self-service terminals
• Retail point-of-sale and customer information displays
• Reception desks, hospitality check-in and wayfinding
• Healthcare check-in and teleconsultation stations
• Industrial HMI and compact operator consoles

Key specifications

• Display: 10.1" (25.6 cm) IPS touchscreen, 1280 × 800 (HD), direct-bonded
• Processor: Rockchip RK3568 quad-core, up to 2 GHz
• Memory and storage: 4 GB LPDDR4 RAM, 16 GB eMMC internal storage, expandable via microSD
• Graphics: Arm Mali-G52 GPU
• Camera: Front-facing 5 MP camera
• Connectivity: Ethernet LAN (10/100/1000), USB ports, mini-HDMI output, PoE+ support
• Sensors and I/O: Integrated NFC reader (NXP PN7160), radar motion sensor
• Audio: Built-in speakers
• Mechanical: VESA mounting support (75×75 mm), product colour: black, weight ≈ 0.6 kg
• Operating system: Android 13

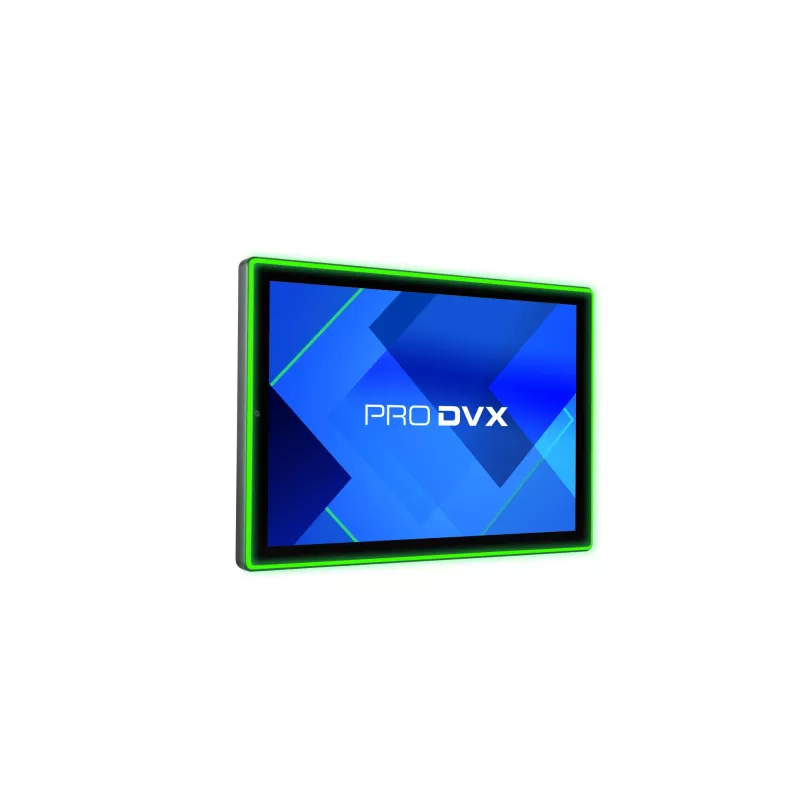

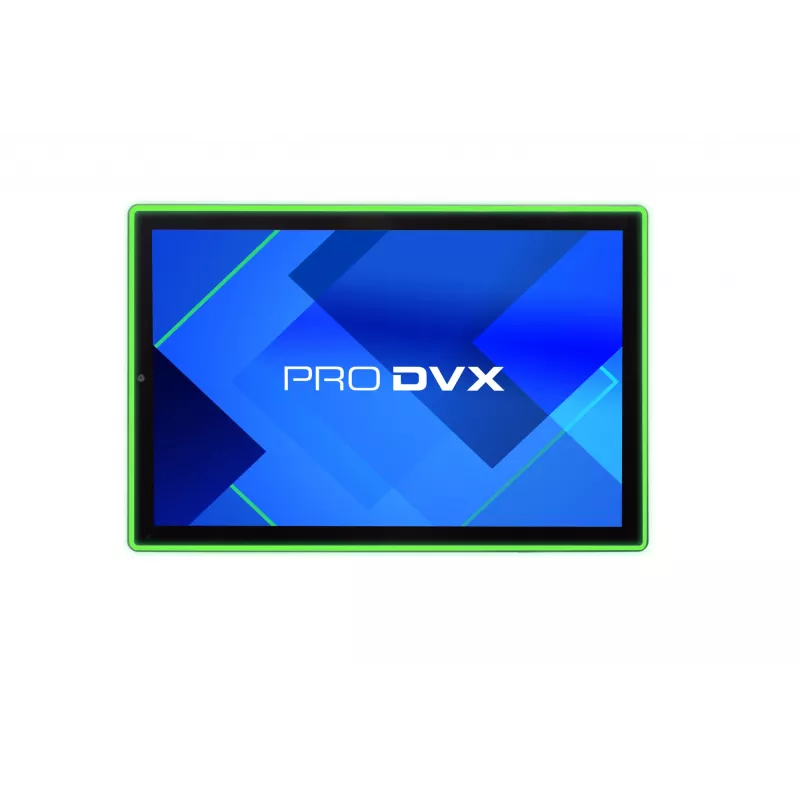

• Design: Fanless cooling, Full Surround RGB LED bar, hardened cover glass
• Reliability: Designed for 24/7 operation with high MTBF

How to use

Mount the APPC-10SFA using the VESA interface or place it on a counter for kiosk installations. Connect power (or PoE+ where supported) and network via Ethernet or configure Wi‑Fi within Android settings. Use the touchscreen and Android interface to install and run signage, kiosk or bespoke Android applications. Configure the NFC reader and camera in the relevant applications to enable contactless transactions or user identification workflows. Adjust the Full Surround LED bar and sensor sensitivity through system settings or provided configuration apps to match branding and interaction requirements.

Recommendations

For continuous operation, place the device in a ventilated area free from direct heat sources and dust. Use PoE+ where available to simplify cabling and enable remote power management. Keep firmware and Android applications updated to ensure security and compatibility. For installations requiring extended local storage, use a high-quality microSD card and verify application compatibility with the device’s 4 GB RAM and 16 GB eMMC capacity.
