ALLNET BrickRknowledge ALL-BRICK-0656 logická stavebnica

ALLNET BrickRknowledge ALL-BRICK-0656 logic set educational kit is a modular learning kit for constructing and testing digital logic circuits and basic electronic experiments. The kit groups compatible components and modules into a single educational package intended for classroom demonstrations, laboratory practice, and individual study. It supports hands-on exploration of logic gates, signal propagation, input/output behaviour and simple troubleshooting techniques relevant to introductory electronics and digital design.

Advantages

The set offers a structured collection of components and modules that simplify assembly and testing of common logic functions without requiring advanced soldering or permanent connections. Components are designed for repeated use in different configurations, enabling step-by-step experiments that illustrate theory with practical results. The kit’s organization promotes clear circuit layout, easy replacement of elements during fault-finding, and fast transition between experiments.

Suitable for

• Classroom demonstrations of digital logic and combinational circuits
• Student laboratory exercises and project prototyping
• Self-study for beginners in electronics and logic theory
• Teacher-prepared lesson plans and hands-on assessments

Key specifications

• Modular components designed for plug-and-play assembly suitable for repeated experiments

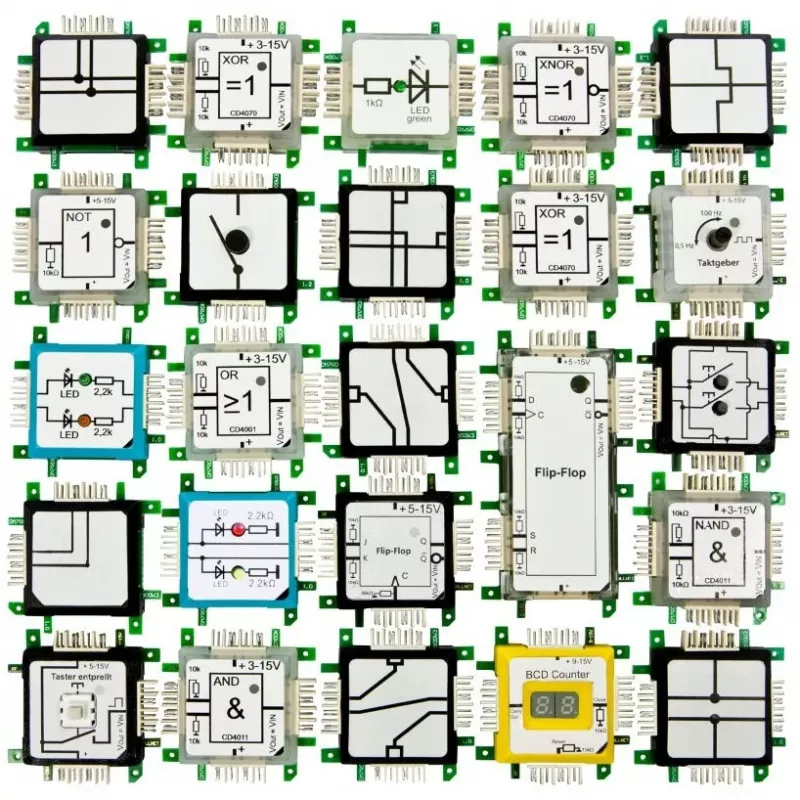

• Includes logic gate modules covering basic functions such as AND, OR, NOT, NAND and NOR (functional types; module details depend on kit contents)
• Input switches and output indicators to demonstrate signal flow and logic state changes
• Breadboard-style connectors or compatible sockets for flexible circuit layout
• Low-voltage operation suitable for safe educational use with standard laboratory power supplies

How to use

Begin by consulting any included experiment sheet or instructor guide to identify the required modules for a given exercise. Place modules into the provided connectors or arrange components on the supplied layout platform, then connect inputs and outputs according to the schematic for the chosen experiment. Apply the recommended low-voltage supply and operate input switches to observe output indicators; record results to compare with expected logic behaviour. For troubleshooting, isolate individual gate modules and verify input signals and power continuity before replacing parts.

Recommendations

Use this logic set in a supervised educational environment and follow standard safety practices for low-voltage electronics. Store components in their compartments to prevent loss, and power down the kit before rearranging circuits. Combine stepwise experiments with theoretical summaries to reinforce understanding of logic functions and circuit behaviour.
