ALOGIC MagForce DUO 2-in-1 adaptér HDCP 1.4/2.2 4096x2160 60Hz

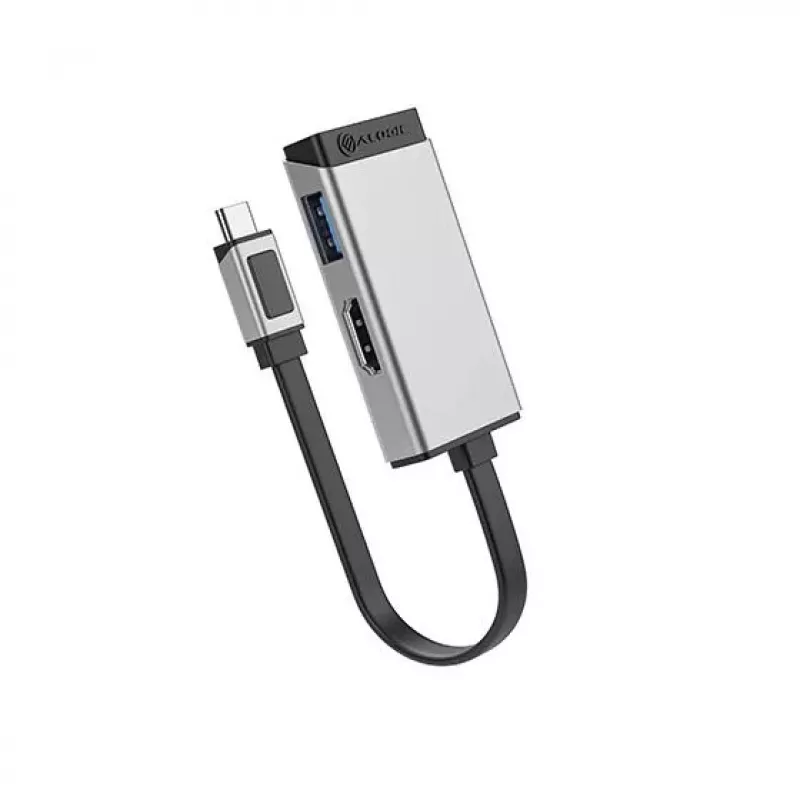

The ALOGIC MagForce DUO 2-in-1 Adapter magnetically secures its built-in cable when idle using patented MagForce technology, reducing the adapter's footprint. This ultra-light, slimline adapter combines a USB-A port and an HDMI port in a compact metal alloy body and supports HDCP 1.4/2.2 and a maximum resolution of 4096 x 2160 at 60 Hz when used with a DP 1.4–capable host. Its flat cable design and portable form factor make it suitable for desk, pocket, or bag use.

Advantages

The MagForce DUO saves space by holding the integrated cable in place magnetically, while its metal alloy casing and silicon/TPE reinforcements provide durability for everyday use. The HDMI port supports up to 4K@60Hz (host dependent) and the USB-A (USB 3.2 Gen 1) port allows data transfer up to 5 Gbps. Compatibility with HDCP 1.4 and 2.2 ensures protected content playback where required.

Suitable for

• Connecting a laptop or USB-C device to an external display (up to 4096 x 2160 @ 60 Hz with DP 1.4 host)
• Attaching USB-A peripherals such as flash drives, keyboards or mice
• Portable workflows for office, travel, or remote work

Key specifications

• Brand: ALOGIC
• Model: MagForce DUO (MPN: ULCHDA-SGR, EAN: 9350784024190)
• Ports: HDMI (4K up to 4096 x 2160 @ 60 Hz, host dependent), USB-A (USB 3.2 Gen 1, up to 5 Gbps)
• HDCP: 1.4 and 2.2 supported
• Cable: flat built-in USB-C cable with magnetic MagForce retention
• Construction: metal alloy casing with silicon and soft-touch TPE reinforcement

How to use

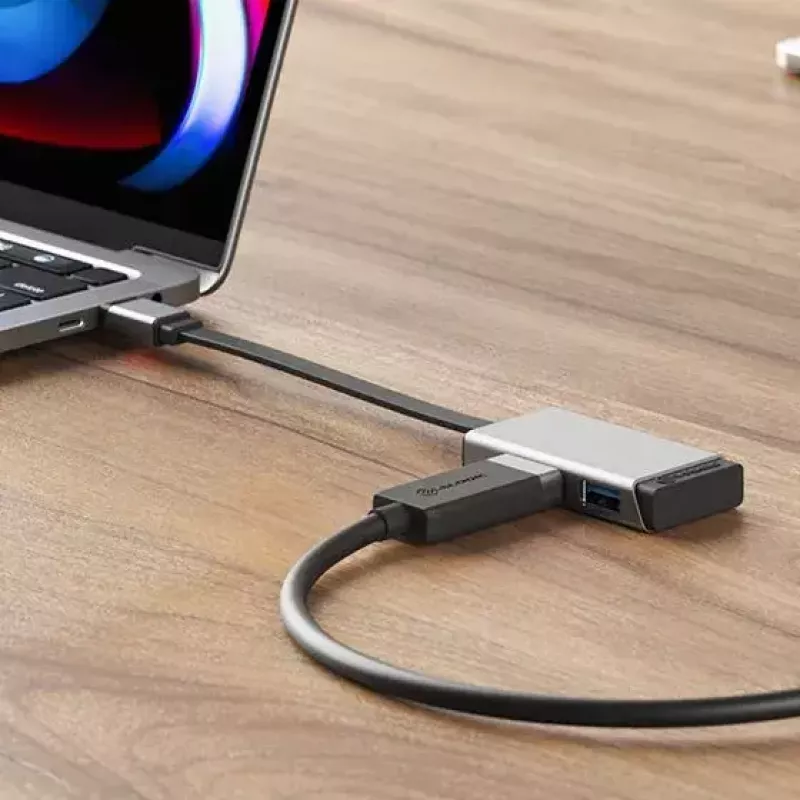

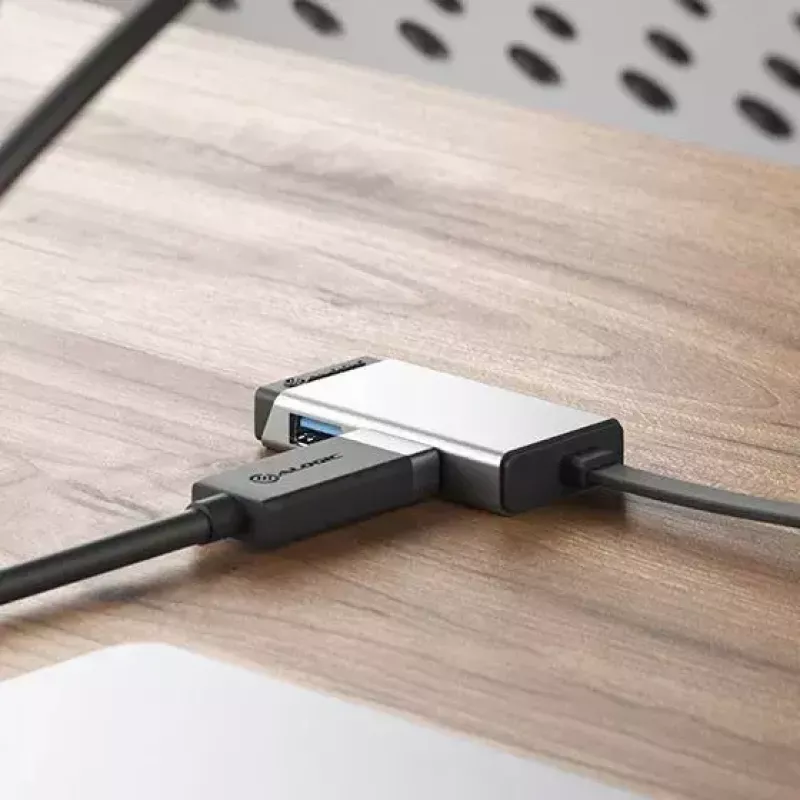

Connect the adapter's USB-C cable to a compatible USB-C port on your laptop or device. Use the HDMI port to connect an external display and the USB-A port for peripherals or storage. Ensure your host device supports DisplayPort 1.4 if you require 4K at 60 Hz; otherwise the display will negotiate a lower resolution or refresh rate. When not in use, align the built-in cable with the adapter body so the MagForce magnets hold it in place to reduce space and prevent cable movement.

Recommendations

For 4K@60Hz output, confirm your laptop/device supports DP 1.4 and that HDMI cables and the connected display also support the required bandwidth. Avoid excessive bending at the cable junction and store the adapter in a pocket or pouch to protect the metal alloy finish.
