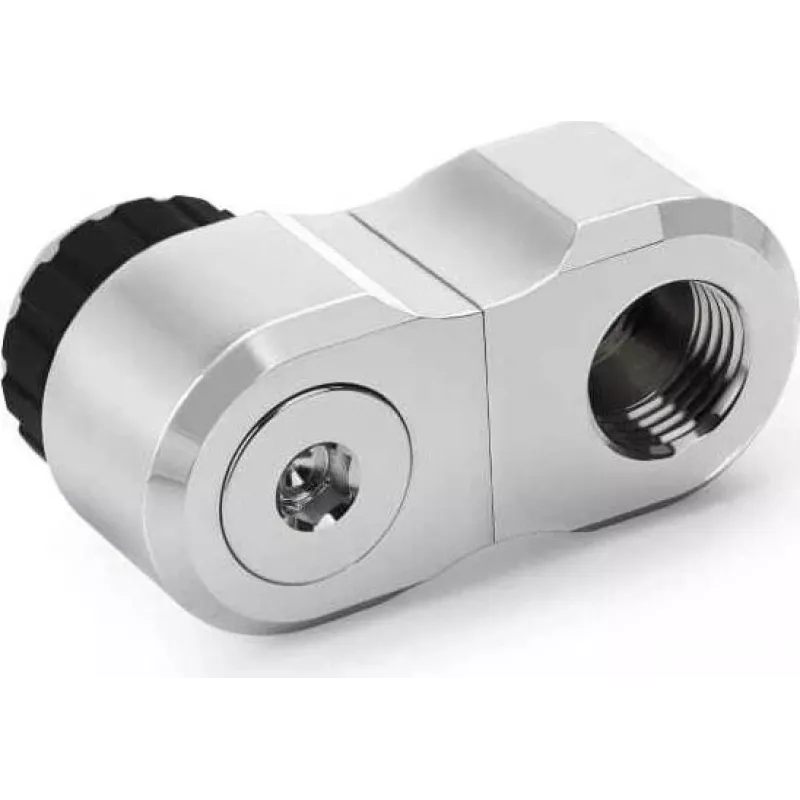

Alphacool Apex Grip offset adaptér 27mm dvojitý 90° samec na samica G1/4 otočný chróm (14894)

In compact water cooling loops, connecting two components that are slightly misaligned often forces builders into awkward tube bends or extra fittings that clutter the build. The Alphacool Apex Grip Offset Adapter solves this by shifting the connection point by exactly 27 mm while adding two independently rotatable 90° joints. This lets you bridge gaps and change direction without stressing tubing or compromising flow.

Who is it for

This adapter is aimed at PC enthusiasts and custom loop builders who need precise offset and angle correction in tight spaces. It is particularly useful in small form factor cases, GPU-to-CPU link lines, or any layout where standard straight fittings cannot align properly. If you value clean, low-profile routing and want to avoid multiple angled fittings, this single component replaces several parts.

Main features

• 27 mm offset distance between the two G1/4 threads, ideal for bridging misaligned ports.
• Two 90° rotary joints, each capable of 360° rotation for flexible positioning.
• Male (AG) to female (IG) thread configuration: screws directly into a component and accepts a standard G1/4 fitting or tube.
• Solid brass construction with a durable chrome-plated finish for corrosion resistance and a clean silver look.
• EPDM O-rings ensure a reliable, leak-free seal under typical water cooling conditions.
• Part of the Alphacool Apex Grip series, known for robust, high-quality fittings.

Specifications

• Product type: Water cooling offset adapter
• Offset distance: 27 mm
• Angle: Dual 90° (two rotary joints)
• Thread size: G1/4 inch
• Input thread: Male (AG)
• Output thread: Female (IG)
• Rotatability: Yes, 360° on both joints
• Material: Brass
• Finish: Chrome plated
• Colour: Silver
• Seal material: EPDM O-rings
• Max operating temperature: 60 °C
• Max operating pressure: 1.5 Bar
• Quantity per pack: 1 piece
• Compatibility: PC water cooling systems with G1/4 threads

Tips

When installing, tighten the male thread into the component first, then rotate the offset body to the desired orientation before connecting the female side. Use a soft cloth or fitting tool to avoid scratching the chrome finish. Always check O-ring seating before final assembly and leak-test the loop at low pressure before powering on the system.
