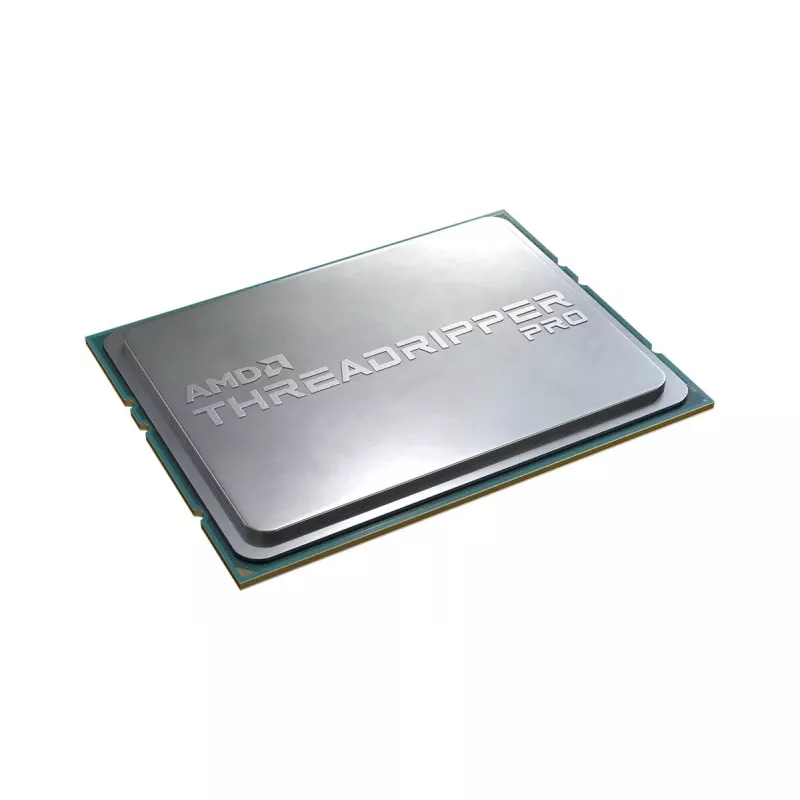

AMD Ryzen Threadripper Pro 5975WX - 4,5 GHz - socket SWRX8 - 144 MB cache - 280 W - WOF

AMD Ryzen Threadripper PRO 5975WX is a professional workstation processor built on 7 nm process technology. With a base frequency of 3.6 GHz, boost up to 4.5 GHz, and a large 128 MB L3 cache, it delivers high core density and strong single‑ and multi‑threaded performance for demanding desktop and workstation workloads. The processor fits Socket sWRX8 and supports octa‑channel DDR4 memory and extensive I/O, making it suitable for advanced workstation configurations that require high compute throughput and expandability.

Advantages

The Threadripper PRO 5975WX combines many cores and a large cache to accelerate compute‑intensive tasks, while the 7 nm architecture improves efficiency and core density. Support for up to 128 PCIe 4.0 lanes enables high‑bandwidth connections to professional GPUs and fast storage. Built‑in enterprise‑grade features include AMD PRO security technologies such as AMD Shadow Stack and AMD Memory Guard for real‑time memory encryption, along with manageability options compatible with existing IT infrastructure.

Suitable for

• 3D rendering and visual effects
• Engineering simulations and CAD
• Video editing and color grading
• Scientific computing and data analysis
• High‑end workstation tasks with multiple GPUs and fast storage

Key specifications

• Processor family: AMD Ryzen Threadripper PRO
• Model: 5975WX
• Cores: 32
• Base frequency: 3.6 GHz
• Boost frequency: up to 4.5 GHz
• Cache: 128 MB L3
• Socket: sWRX8
• Memory: octa‑channel DDR4 support
• PCIe: up to 128 PCIe 4.0 lanes
• On‑board graphics: not available

How to use

Install the processor into a compatible Socket sWRX8 motherboard following the motherboard and processor manufacturer instructions, use an appropriate high‑capacity cooling solution and ensure correct BIOS/firmware for Threadripper PRO support. Populate memory channels according to the motherboard manual to take advantage of octa‑channel DDR4 bandwidth. Connect professional GPUs and NVMe storage to available PCIe 4.0 lanes as required by your workload, and enable relevant BIOS options for performance and security features.

Recommendations

For reliable performance in professional workflows, pair the 5975WX with a workstation motherboard certified for Threadripper PRO, high‑quality multi‑socket cooling or large air cooler, ECC or high‑speed DDR4 modules as supported, and enterprise‑grade NVMe storage and GPUs. Keep BIOS and drivers up to date and enable AMD Memory Guard and Shadow Stack where supported for improved security.
