APC kábel, UPS komunikácia Smart Signalling (1,8 m - DB-9 na RJ-45)

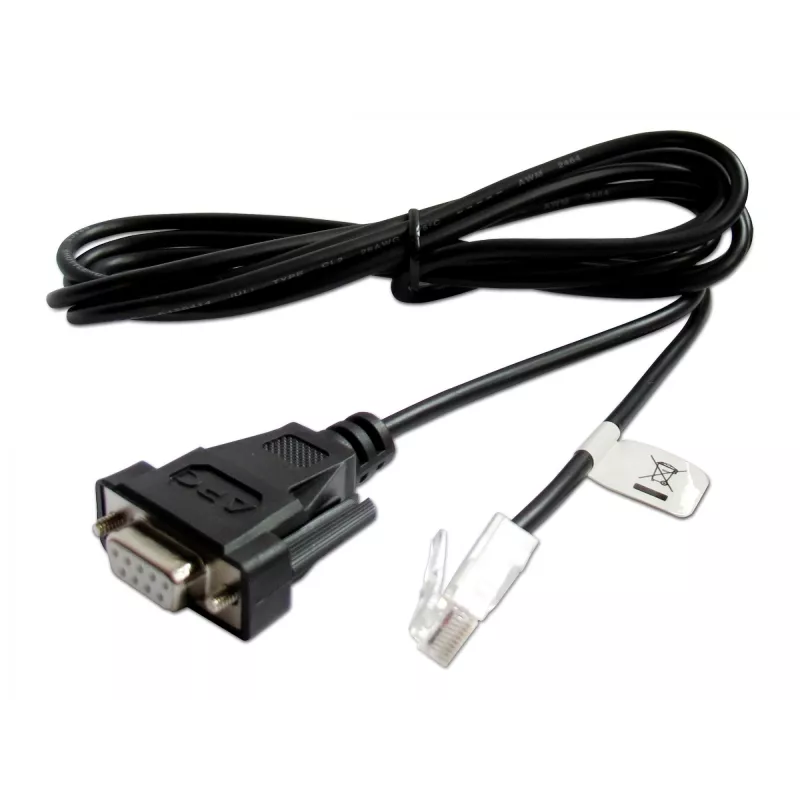

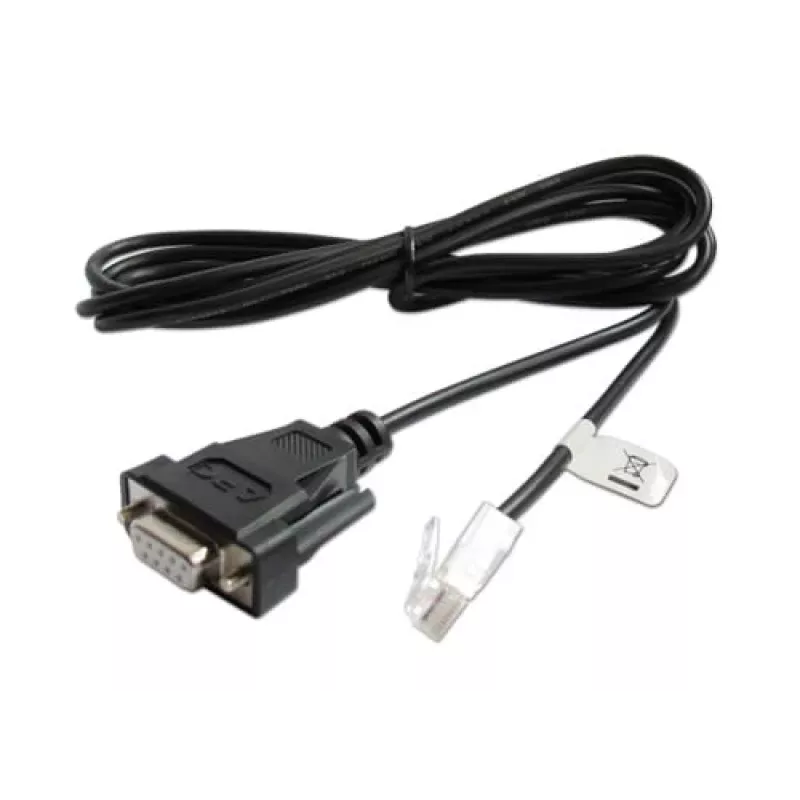

The APC AP940-0625A Cable Gender Changer provides a dedicated serial/USB communication link between a UPS and a server, enabling reliable signalling independent of the network. This 2 m black cable features a DB9 connector on one end and an RJ45 connector on the other, designed for straightforward integration into existing UPS setups and extended-distance signal transmission.

Advantages

The cable supports stable data transmission between UPS and equipment, reduces the need for network-dependent communication, and accommodates longer cable runs thanks to its 2 m length. Its DB9-to-RJ45 configuration allows compatibility with devices that use serial console or adapter-based connections while keeping installation simple.

Suitable for

• Connecting APC UPS units to servers or management consoles via serial/USB interfaces
• Extending UPS signalling distance within racks or between nearby equipment
• Replacing or adapting existing DB9-to-RJ45 connections in data centres and server rooms

Key specifications

• Manufacturer: APC
• Model: AP940-0625A
• Cable length: 2 m
• Connector 1: DB9
• Connector 2: RJ45
• Colour: Black
• Weight: 0.14 kg
• EAN: 0731304310815

How to use

Connect the DB9 end to the UPS or serial adapter port and the RJ45 end to the server or console port as required by your equipment. Ensure both devices are powered off when making the connection if recommended by the hardware manuals. After connecting, power on the devices and verify communication through your UPS management software or the server console.

Recommendations

Use this DB9-to-RJ45 cable for direct UPS-to-server signalling in locations where network-independent communication is required. Avoid running the cable alongside high-voltage power lines to minimise interference and check connector seating to maintain reliable connections.
