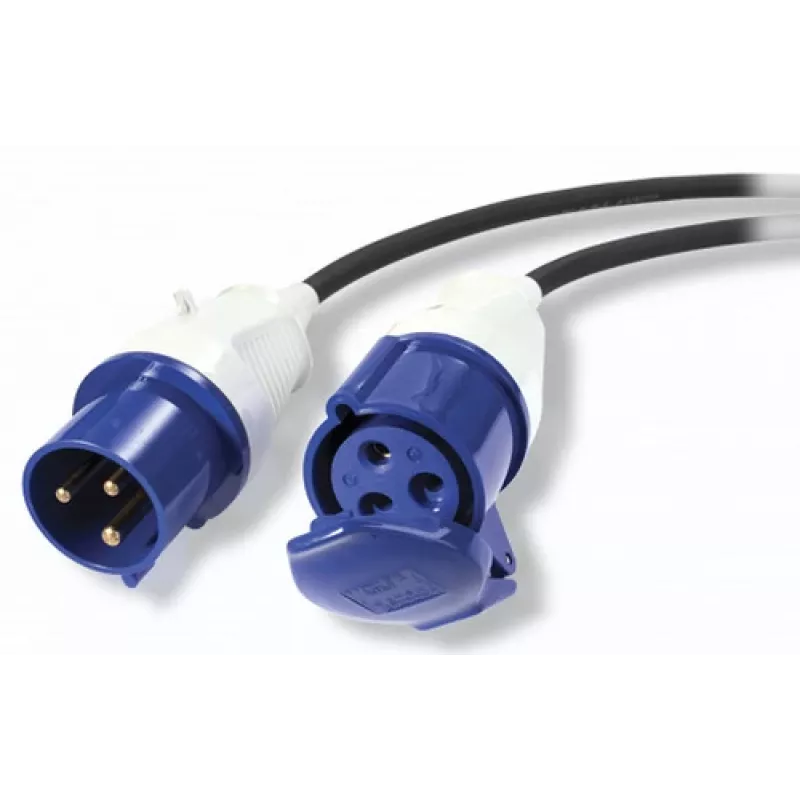

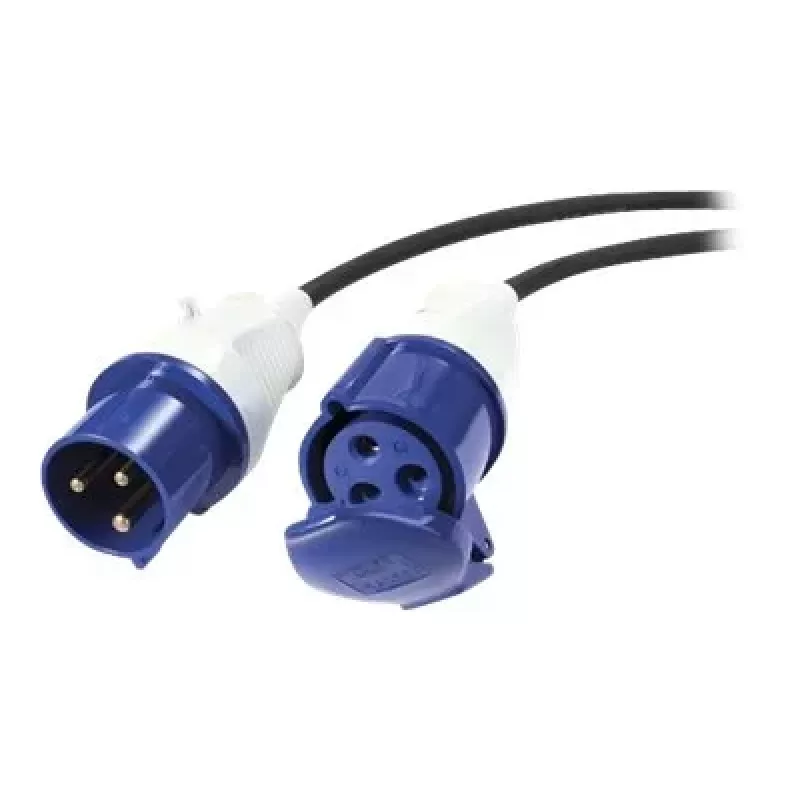

APC modulárny IT predlžovací napájací kábel, 3-žilový, IEC 60309 32A (2P+E) konektor samec na konektor samica, 230 V, 6 m (PDX332IEC-600)

In high-density data centers and industrial power setups, standard cords often fall short—literally. The APC Modular IT Power Distribution Cable Extender closes that gap with a robust IEC 60309 32A connection, delivering secure three-phase 400V power exactly where it's needed. Its 3-meter length provides practical reach for rack PDUs and equipment rows, while the black PVC jacket keeps installations looking clean and professional.

Highlights

• Heavy-duty IEC 60309 32A male to female connectors (5-pin, 3P+N+E) for reliable 400V three-phase power
• Rated for 32A continuous current, ideal for high-power IT equipment and rack PDUs
• 3-meter length (9.84 ft) offers flexibility in equipment placement without excess slack
• Durable black PVC jacket and copper conductors ensure long service life
• CE and VDE certified, RoHS and REACH compliant

In daily use

Connect this extender between a CEE-form wall outlet or upstream PDU and a downstream device. The locking connectors prevent accidental disconnection, and the cable’s flexibility simplifies routing through cable managers and raised floors. Whether extending a temporary power feed or permanently wiring a rack, it maintains full 32A capacity without voltage drop concerns over its length.

Full specifications

• Brand: APC
• Model: PDX332IEC-600
• MPN: PDX332IEC-600
• EAN: 731304258414
• Cable type: Power extension cable
• Connector 1: IEC 60309 32A male (5-pin, 3P+N+E)
• Connector 2: IEC 60309 32A female (5-pin, 3P+N+E)
• Connector gender: Male to female
• Cable length: 3 m (9.84 ft)
• Rated current: 32 A
• Rated voltage: 400 V AC (3-phase)
• Colour: Black
• Conductor material: Copper
• Jacket material: PVC
• Number of conductors: 5 (3 phase, neutral, earth)
• Connector standard: IEC 60309 (CEEform / Industrial)
• Product family: APC Rack PDU Accessories
• Environmental compliance: RoHS, REACH
• Operating temperature: -5 to 45 °C
• Storage temperature: -25 to 65 °C
• Operating humidity: 0 - 95% (non-condensing)
• Storage humidity: 0 - 95% (non-condensing)
• Certifications: CE, VDE

Final note

Engineered for demanding power distribution, this extender delivers reliable, safe, and efficient connectivity for your critical IT infrastructure.
