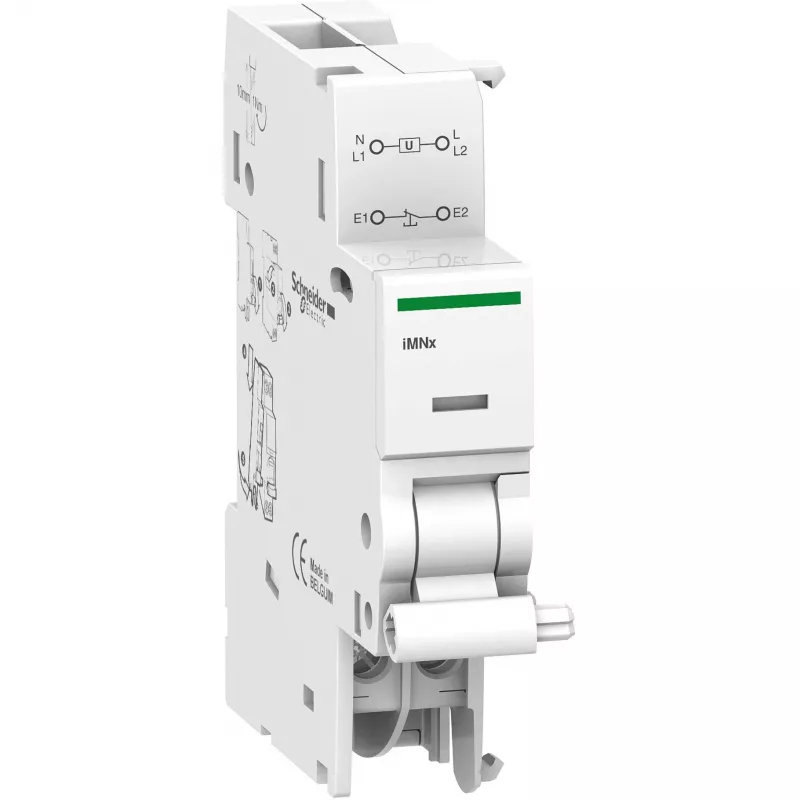

APC Schneider Electric A9A26969 pomocný spínač, 1 NO + 1 NC, 240 V AC, 24 V DC, viacfarebný

The APC Schneider Electric A9A26969 is a high-quality auxiliary contact designed for use with Schneider Electric iTL impulse relays. It provides reliable signaling and fault indication functions (OF + SD) in a compact 1-module width. Suitable for industrial and commercial applications, this auxiliary contact ensures precise monitoring of relay status.

Advantages

Easy clip-on mounting on DIN rail, compact design saves space, and robust construction ensures long electrical durability of 10,000 cycles. The combination of normally open (NO) and normally closed (NC) contacts offers flexibility for various control circuits.

Suitable for

• Schneider Electric iTL impulse relays
• Control panels and switchgear
• Industrial automation systems
• Building management systems

Key specifications

• Product Type: Auxiliary Contact
• Contact Configuration: 1 NO + 1 NC
• Signaling Function: OF (Open/Closed Indication) + SD (Fault Indication)
• Rated Operational Voltage: 240 V AC 50/60 Hz, 24 V DC
• Rated Current: 3 A (AC-15), 1.5 A (DC-13)
• Mounting: Clip-on on DIN Rail
• Width: 1 x 9 mm pitch
• Degree of Protection: IP20
• Pollution Degree: 3
• Operating Temperature: -20 to 50 °C
• Storage Temperature: -40 to 70 °C
• Standards: EN/IEC 60947-5-1
• Terminal Type: Screw terminals
• Wire Stripping Length: 9 mm
• Tightening Torque: 1 N.m
• Electrical Durability: 10,000 cycles

Recommendations

For optimal performance, ensure proper tightening torque and wire stripping length. This auxiliary contact is ideal for monitoring relay positions in critical circuits.
