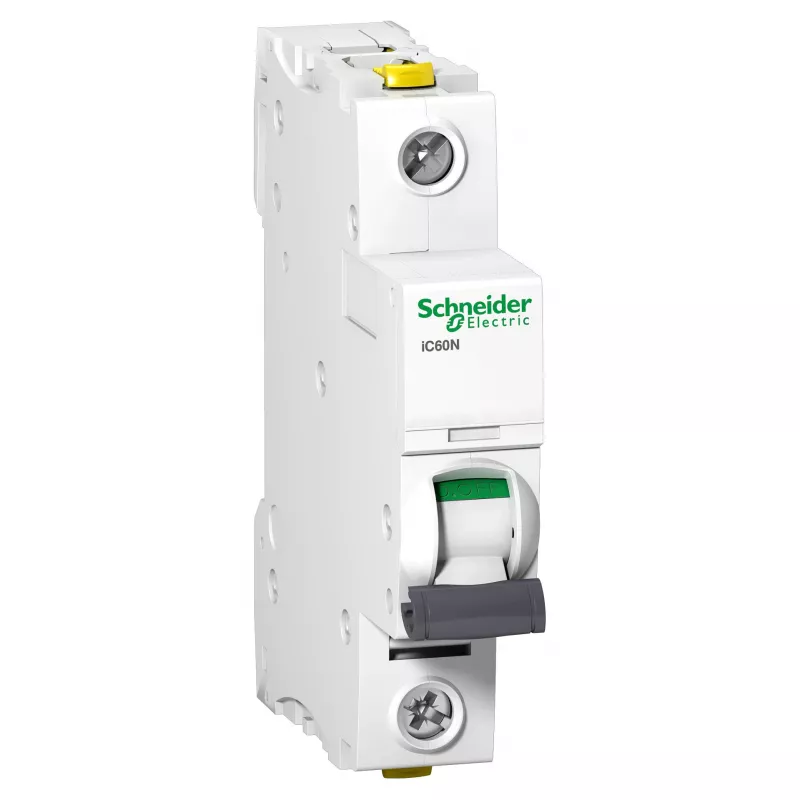

Schneider Electric A9F03116 Acti9 iC60N Istič, 1P, B 16A

The Schneider Electric A9F03116 is a miniature circuit breaker from the Acti9 iC60N series. It has a rated current of 16 A and a rated voltage of 133 V, with a breaking capacity of 10000 A. The device features 1 pole and an IP20 protection rating.

Key features

• Miniature circuit breaker type
• Breaking capacity: 10000 A
• Number of poles: 1
• IP code: IP20
• Pollution degree: 3
• Product colour: White
• Certifications: EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
• Operating temperature: -35 to 70 °C
• Storage temperature range: -40 to 85 °C
• RoHS compliant

Specifications

• Rated current: 16 A
• Rated voltage: 133 V
• Width: 18 mm
• Depth: 78.5 mm
• Height: 91 mm
• Weight: 125 g
