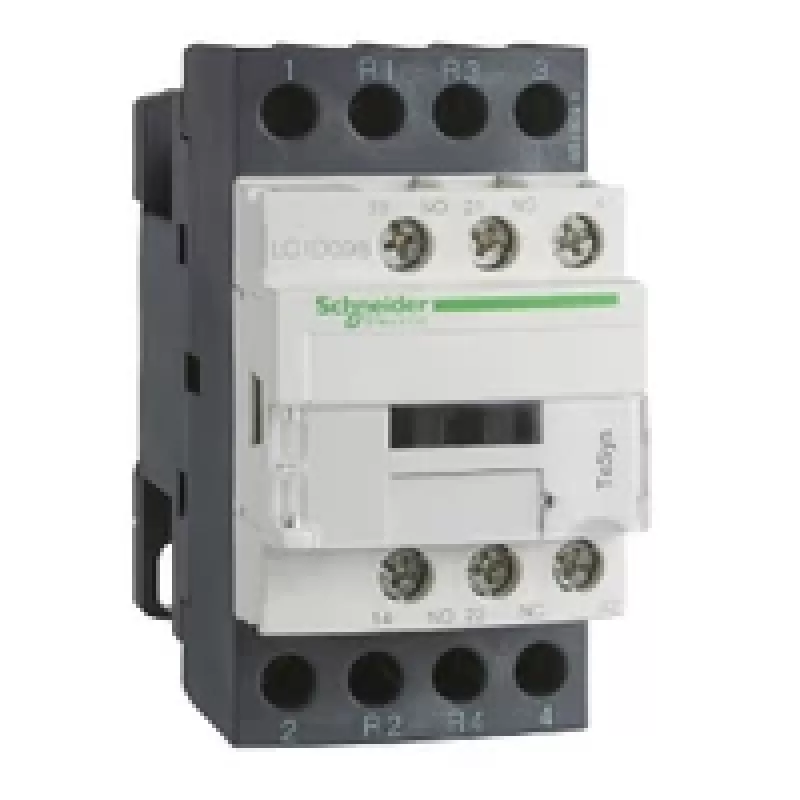

APC Schneider Electric LC1D128P7 TeSys D stýkač, 3-pólový, 12 A, 230 V AC, 1 NO + 1 NC pomocný kontakt

The APC Schneider Electric LC1D128P7 is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a compact design and robust construction, it ensures long-lasting performance in industrial environments.

Advantages

This contactor offers excellent electrical and mechanical durability, with up to 2 million electrical cycles and 15 million mechanical cycles. Its screw clamp terminals provide secure and easy wiring, while the IP20 protection rating safeguards against dust and accidental contact.

Suitable for

• Motor control in AC-3 applications up to 12 A
• General switching in AC-1 applications up to 25 A
• Industrial automation and control panels
• Rail or plate mounting installations

Key specifications

• Product Type: Contactor
• Series: TeSys D
• Number of Poles: 3P
• Power Pole Contact Configuration: 3 NO
• Rated Operational Current (AC-3): 12 A at ≤ 440 V AC
• Rated Operational Current (AC-1): 25 A at ≤ 440 V AC
• Control Circuit Voltage: 230 V AC 50/60 Hz
• Control Circuit Type: AC
• Auxiliary Contact Configuration: 1 NO + 1 NC
• Rated Operational Voltage (Power Circuit): 690 V AC, 300 V DC max
• Motor Power (AC-3, 220-230V): 3 kW
• Mounting Type: Rail, Plate
• IP Protection Rating: IP20
• Operating Temperature Range: -5 to 60 °C
• Electrical Durability: 2 Mcycles (AC-3)
• Mechanical Durability: 15 Mcycles
• Connection Type: Screw Clamp Terminals
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1

Recommendations

For optimal performance, ensure the control voltage matches your system (230 V AC). This contactor is ideal for controlling three-phase motors up to 3 kW at 230 V AC. Always follow local electrical codes and manufacturer guidelines for installation.
