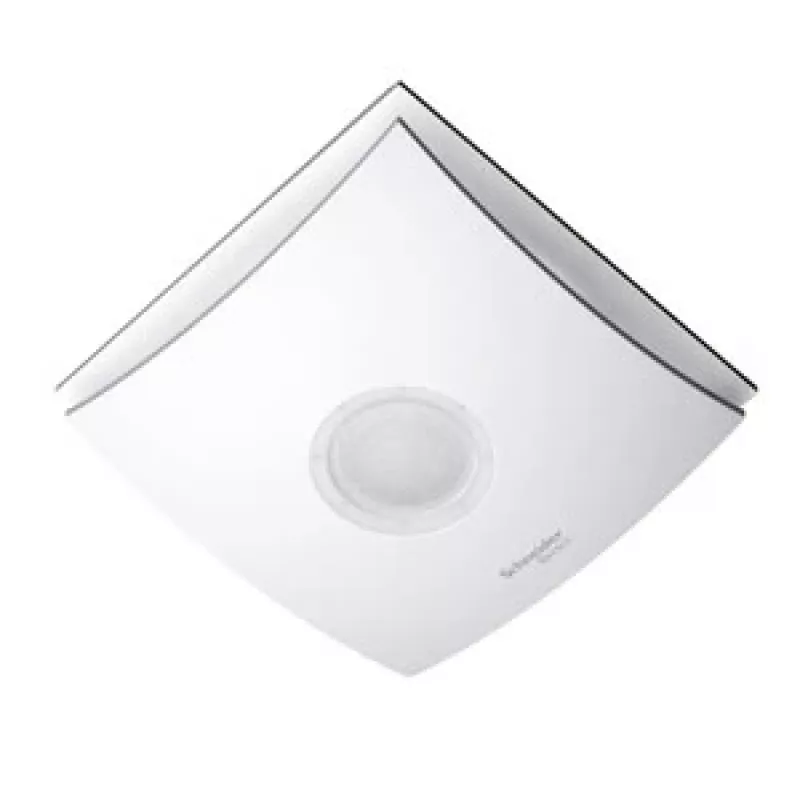

Stropný pohybový senzor Schneider Electric CCT56P002 Standard 360° biely

Schneider ARGUS CCT56P002 is a ceiling-mounted wired motion sensor with a 360° detection angle, designed for indoor use. The device is made of white ABS plastic, operates at 230 V AC and carries an IP20 rating. With a maximum indoor detection range of 7.4 m, this Schneider Electric sensor is suitable for automating lighting and integrating with building systems to switch lights or trigger alarms based on presence.

Advantages

The ceiling motion sensor offers full 360° coverage from a single mounting point and a compact white ABS housing that blends with standard indoor ceilings. Wired connectivity ensures a reliable power supply and stable signal for continuous operation. Its 7.4 m maximum range and standard form factor make it compatible with residential and light commercial installations.

Suitable for

Key specifications

How to use

Mount the sensor on a suitable ceiling location to provide unobstructed 360° coverage of the area to be monitored. Connect the unit using the building’s fixed wiring in accordance with local electrical regulations and the installer’s instructions. Adjust the wiring and any system-level settings in the connected lighting or automation controller to respond to the sensor’s presence signals.

Recommendations

Install at a central ceiling position at recommended height for optimal 360° detection and avoid installing near large obstacles, heat sources or reflective surfaces that could reduce detection performance. Ensure wiring and installation are carried out by a qualified electrician and follow applicable local codes.
