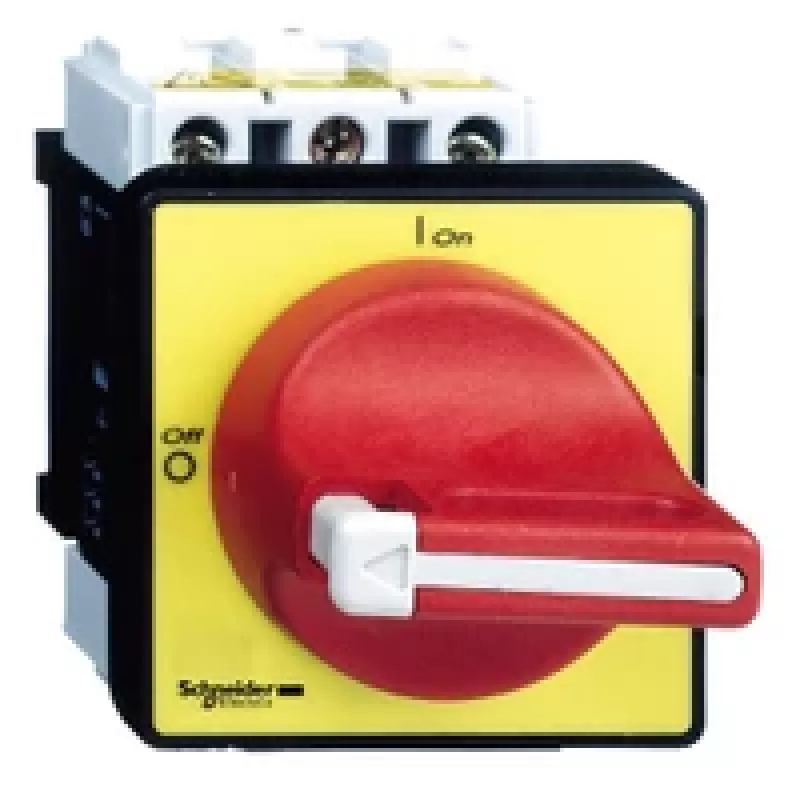

APC VCF0 odpojovač záťaže 3P červený žltý 60 mm 74 mm

The APC VCF0 is a robust switch disconnector designed for safe and reliable isolation of electrical circuits. With a 3-pole configuration and a rated operational current of 20 A at 690 V AC, it is suitable for a wide range of industrial applications. The red handle and yellow front plate provide high visibility, enhancing safety during operation.

Advantages

High durability with 100,000 mechanical and electrical cycles ensures long service life. IP65 protection on the front face allows use in harsh environments, while IP20 on terminals ensures safe connection. The direct rotary handle provides clear ON/OFF positioning.

Suitable for

• Industrial machinery isolation
• Motor control centers
• Distribution boards
• Commercial and light industrial electrical systems

Key specifications

• Product Type: Switch Disconnector
• Number of Poles: 3P
• Rated Operational Current (Ie): 20 A (at 690 V AC-21A)
• Rated Operational Voltage (Ue): 690 V AC
• Handle Color: Red
• Front Plate Color: Yellow
• Mounting Type: Front Panel Mounting
• Number of Positions: 2 (ON/OFF)
• IP Protection Rating (Front Face): IP65
• IP Protection Rating (Terminals): IP20
• Standards: IEC 60947-3
• Connection Type: Screw Clamp Terminals
• Operating Temperature: -20 to 50 °C
• Mechanical Durability: 100,000 cycles
• Electrical Durability: 100,000 cycles (AC-21A)
• Rated Power (3-Phase, 220-240V): 4 kW
• Rated Power (3-Phase, 380-690V): 7.5 kW
• Panel Cutout Dimensions: 45 x 45 mm
• Actuator Type: Direct Rotary Handle

Recommendations

For optimal performance, ensure proper panel cutout of 45x45 mm and use appropriate screw clamp terminals. Suitable for applications requiring reliable disconnection under load.
