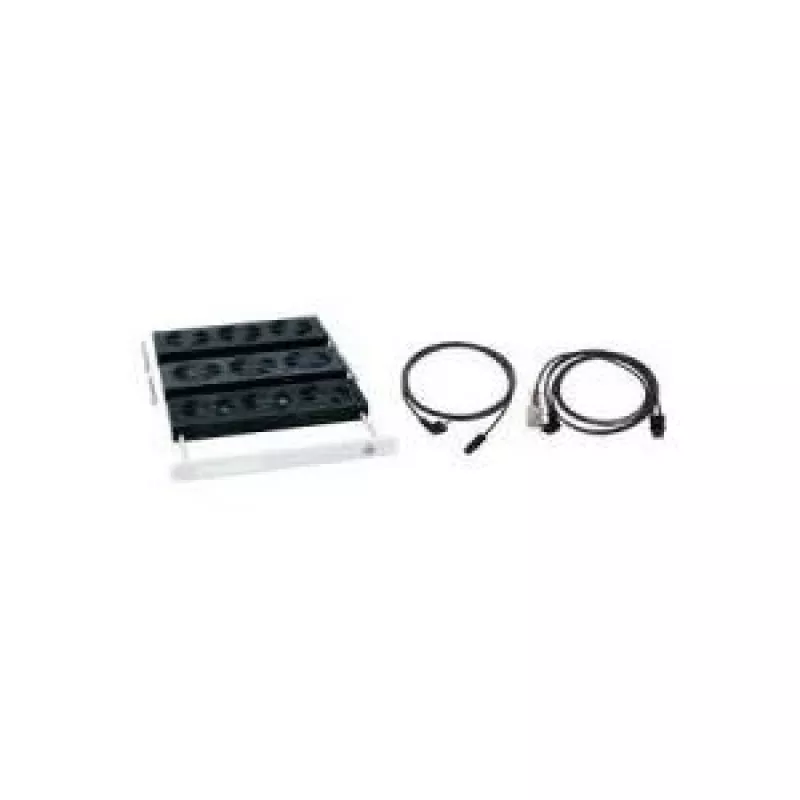

apraNET 1U racková chladiaca jednotka s 3 ventilátormi, 230V, 360 m³/h, čierna

In a busy server room, heat is the silent enemy. The apraNET 1U Rack Fan Unit mounts directly into a standard 19-inch rack, pulling hot air away from critical equipment. Three 120 mm fans work together to move up to 360 m³/h of air, keeping switches, routers, and servers within safe operating temperatures. The front panel includes a power switch for quick control, and the 2 m power cable with IEC C14 connector plugs into standard rack PDUs.

Key specifications

• Form factor: 1U, 19-inch rack mount
• Number of fans: 3
• Fan size: 120 x 120 x 38 mm each
• Total airflow: 360 m³/h
• Noise level: 47 dB(A)
• Input voltage: 230V AC, 50/60 Hz
• Power consumption: 48 W
• Power connector: IEC C14, cable length 2 m
• Material: Sheet steel, black (RAL 9005)
• Operating temperature: 0°C to +50°C
• Bearing type: Sleeve bearing
• On/off switch: Yes, front panel
• Protection class: IP20

Why choose it

Designed for continuous operation, this fan unit provides reliable airflow without taking up valuable rack space. The steel housing is built to last, and the front-mounted switch allows for easy power management. With a noise level of 47 dB(A), it balances cooling performance with acceptable acoustic output for most equipment rooms.

Ideal use cases

• Cooling network switches and patch panels in 19-inch racks
• Supplementing airflow in enclosed server cabinets
• Ventilating AV racks or industrial control enclosures
• Maintaining temperature in small server rooms or IT closets

Good to know

Installation is straightforward: slide the unit into a free 1U slot and secure it with the included mounting hardware (if provided). The IEC C14 inlet is compatible with standard power cords. Ensure the rack has adequate ventilation and that the fan direction is oriented to exhaust hot air from the cabinet. Regular cleaning of the fan blades is recommended to maintain airflow.
