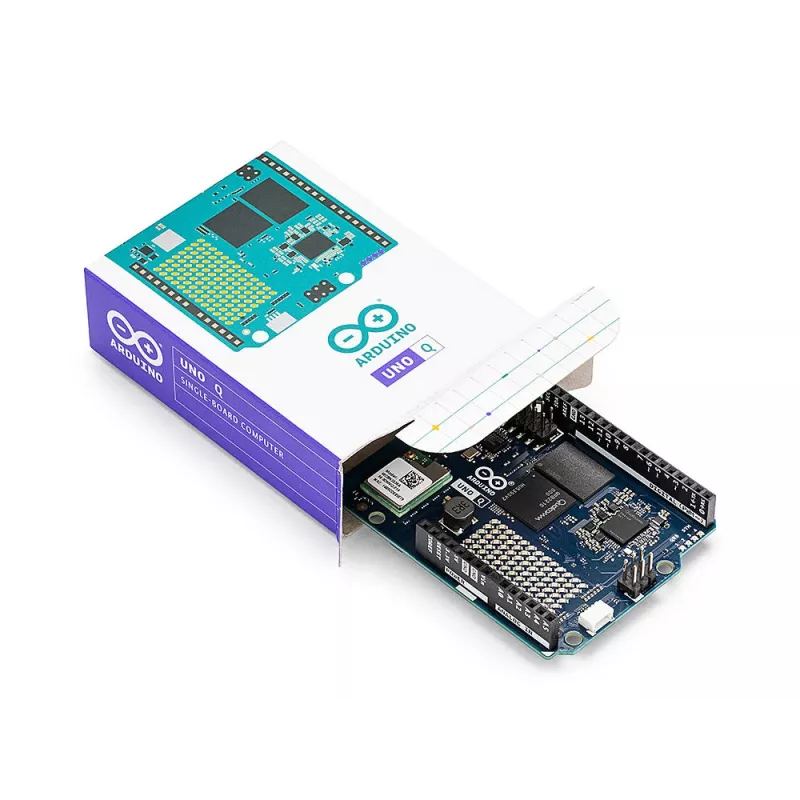

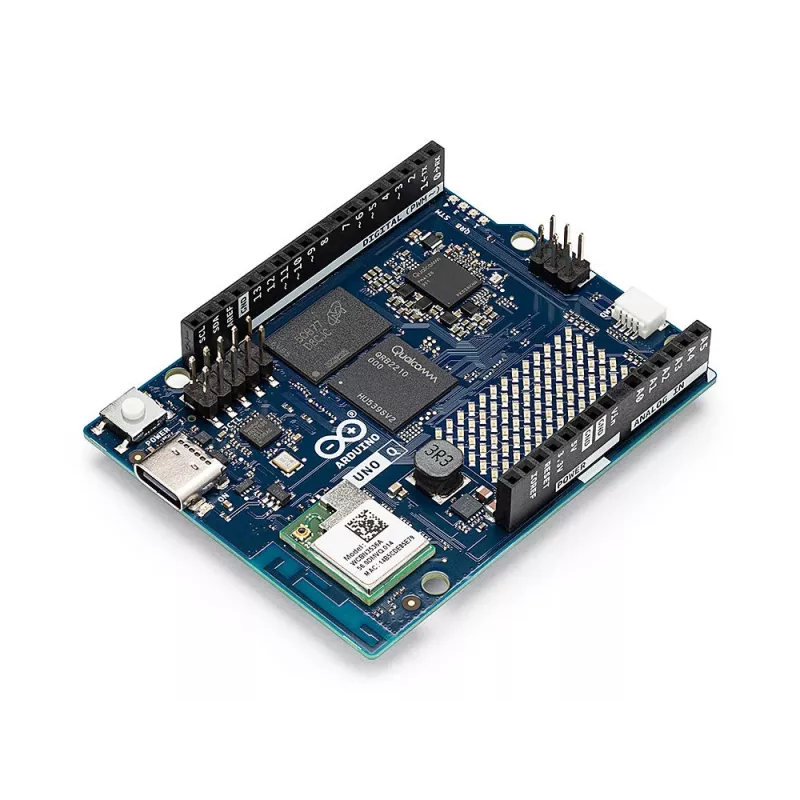

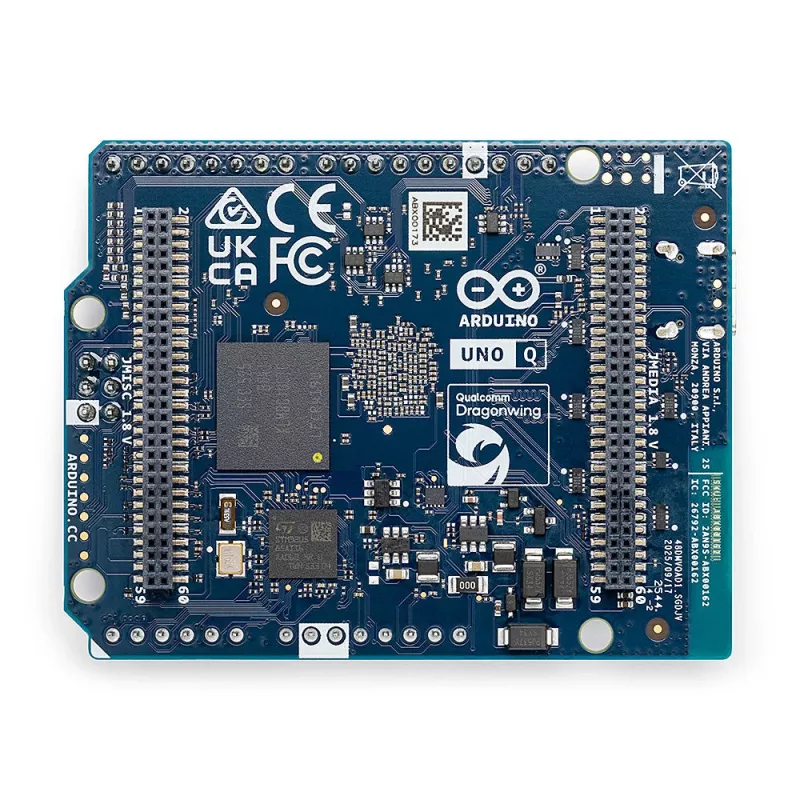

Arduino Uno Q 4GB vývojová doska (ABX00173)

Embedded developers and educators use the Arduino Uno Q 4GB to prototype connected projects with a familiar Uno layout and modern ARM Cortex-M4 performance. The board runs at 5V with a 48 MHz Renesas RA4M1 microcontroller, delivering 256 KB flash and 32 KB SRAM for reliable program execution. Its 14 digital I/O pins, 6 PWM outputs, and 6 analog inputs support sensors, actuators, and communication modules. The USB-C connector provides overcurrent-protected power and programming, while an external DC jack accepts 6-24V for standalone operation. On-board UART, I2C, SPI, and CAN interfaces enable integration with industrial and automotive systems. The SWD header allows low-level debugging for advanced firmware development.

Key specifications

• Microcontroller: Renesas RA4M1 (ARM Cortex-M4)
• Operating voltage: 5V
• Input voltage (VIN): 6-24V
• Digital I/O pins: 14
• PWM digital I/O pins: 6
• Analog input pins: 6
• Flash memory: 256 KB
• SRAM: 32 KB
• EEPROM: 8 KB
• Clock speed: 48 MHz
• USB connector: USB-C
• Communication: UART, I2C, SPI, CAN
• Debugging: SWD header
• Form factor: Arduino Uno Rev3

Why choose it

The Uno Q 4GB keeps the classic Uno footprint while upgrading to a 32-bit processor with more memory and faster clock speed. USB-C and CAN support make it suitable for modern and industrial applications. Overcurrent protection on the USB port safeguards the board during development.

Ideal use cases

• Prototyping IoT devices with UART, I2C, or SPI sensors
• Educational projects teaching microcontroller programming
• Industrial control with CAN bus connectivity
• Robotics and motor control using PWM outputs

Good to know

The board is compatible with the Arduino Uno Rev3 form factor, allowing use with many existing shields and accessories. The SWD header provides a direct debugging interface for firmware development.
