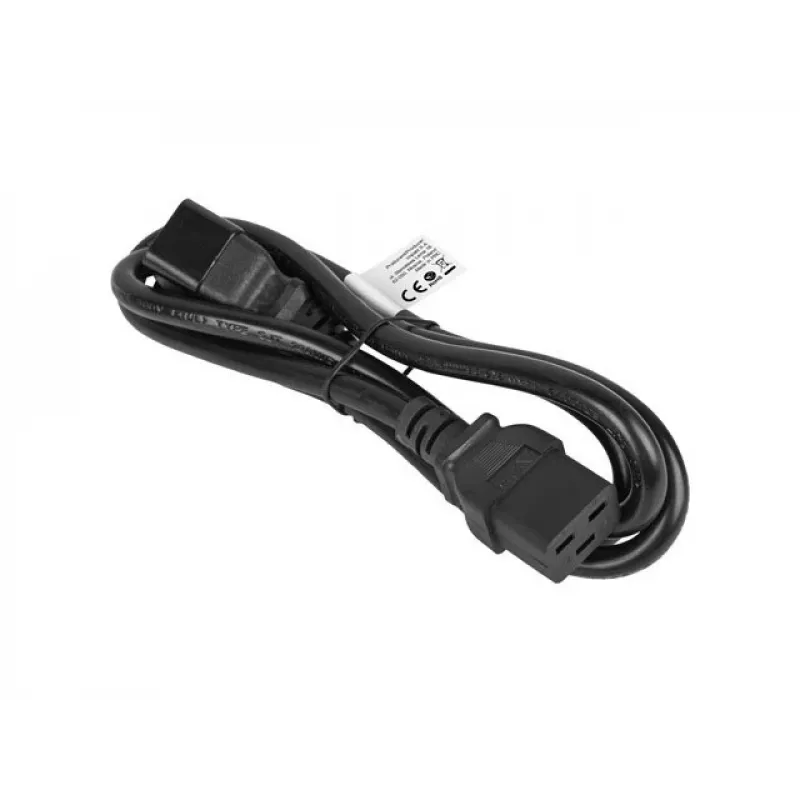

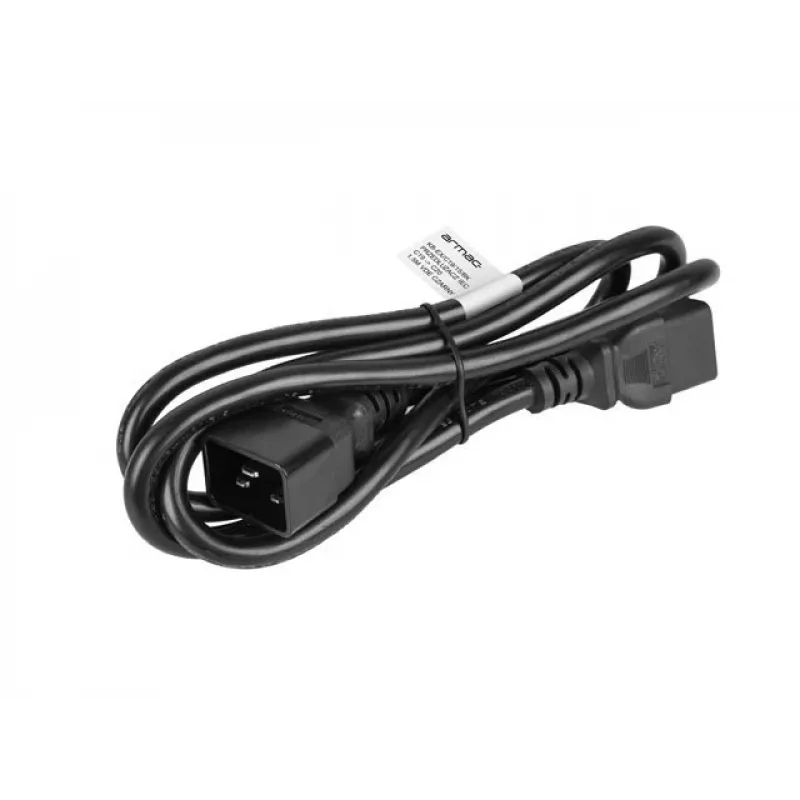

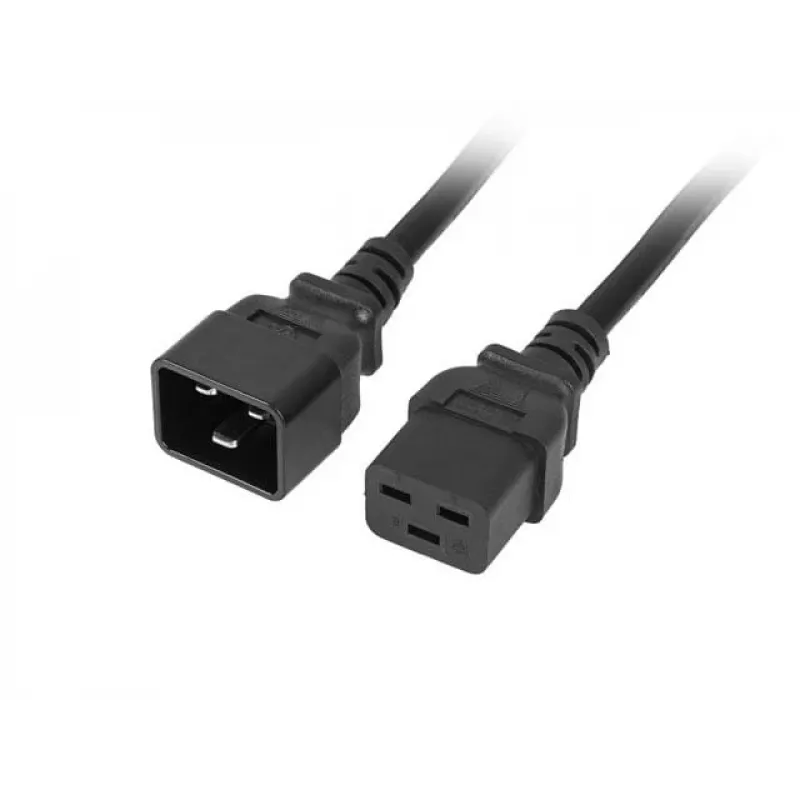

ARMAC KB-EX/C19/15/BK IEC C19 na C20 napájací kábel 1,5 m VDE čierny

Unlike generic power cords that often compromise on conductor thickness or certification, the ARMAC KB-EX/C19/15/BK delivers a robust 3 x 1.5 mm² cross-section and full VDE approval, ensuring safe, high-current operation for demanding IT equipment. This 1.5-meter cable connects devices with an IEC C20 inlet to a power source with an IEC C19 outlet, commonly found in data centers, server rooms, and network racks. Its black PVC jacket is both durable and flexible, while the straight connectors allow for easy routing in tight spaces. With a 16 A / 250 V rating and a maximum power handling of 4000 W, it is built to support high-density power distribution units, uninterruptible power supplies, and blade server chassis. The cable meets CE and RoHS directives, making it suitable for professional and commercial environments where reliability and compliance are non-negotiable.

Highlights

• Heavy-duty 3 x 1.5 mm² conductors for stable power delivery
• IEC C20 male to IEC C19 female configuration
• VDE, CE, and RoHS certified for safety and environmental compliance
• Rated for 16 A / 250 V AC, up to 4000 W
• Flexible PVC jacket in black for durability and easy installation
• Straight connectors ideal for rack-mount and PDU applications

In daily use

This cable excels in high-availability setups where power integrity is critical. The 1.5 m length provides enough reach to connect PDUs to servers or network switches without excess slack. The H05VV-F cable standard ensures flexibility even in cooler server room temperatures, and the PVC insulation resists abrasion and common chemicals. The connectors are molded for strain relief, reducing the risk of damage from repeated plugging and unplugging. Whether you are upgrading a rack or replacing a worn cord, the ARMAC KB-EX/C19/15/BK offers a dependable, standards-compliant solution.

Full specifications

• Connector 1: IEC C20 male
• Connector 2: IEC C19 female
• Cable length: 1.5 m
• Conductor cross-section: 3 x 1.5 mm²
• Rated current: 16 A
• Rated voltage: 250 V AC
• Max power rating: 4000 W
• Cable standard: H05VV-F
• Number of conductors: 3
• Cable colour: Black
• Jacket material: PVC
• Insulation material: PVC
• Certifications: VDE, CE, RoHS
• Application: UPS, PDU, server, network equipment
• Operating temperature: -10°C to 70°C

Final note

For professionals who refuse to compromise on power safety and performance, the ARMAC KB-EX/C19/15/BK is the clear choice. Its VDE certification and robust build ensure long-term reliability in the most demanding environments.
