ASRock DeskSlim X600 Barebone Mini-PC, AMD AM5 socket, DDR5 SO-DIMM, PCIe Gen5 M.2, 2,5GbE, bez RAM/úložiska/OS, čierna

The ASRock DeskSlim X600 barebone redefines compact computing by pairing the AMD AM5 platform with a remarkably slim chassis. Unlike typical mini PCs that compromise on expansion, this unit supports Ryzen 7000 and 8000 series processors up to 65W TDP, while offering PCIe Gen5 storage and dual M.2 slots. It arrives without RAM, storage, or an operating system, giving integrators and enthusiasts full control over the final configuration.

Highlights

• AMD X600 chipset with AM5 socket for Ryzen 7000/8000 series (up to 65W)
• Dual DDR5 SO-DIMM slots, up to 96GB total memory
• One PCIe Gen5 x4 M.2 slot and one PCIe Gen4 x4 M.2 slot
• Two 2.5" SATA bays for additional storage
• Triple display outputs: HDMI 2.1, DisplayPort 1.4, and D-Sub (VGA)
• Gigabit LAN plus M.2 Key E slot for optional Wi-Fi module
• 120W/19V DC power adapter included

In daily use

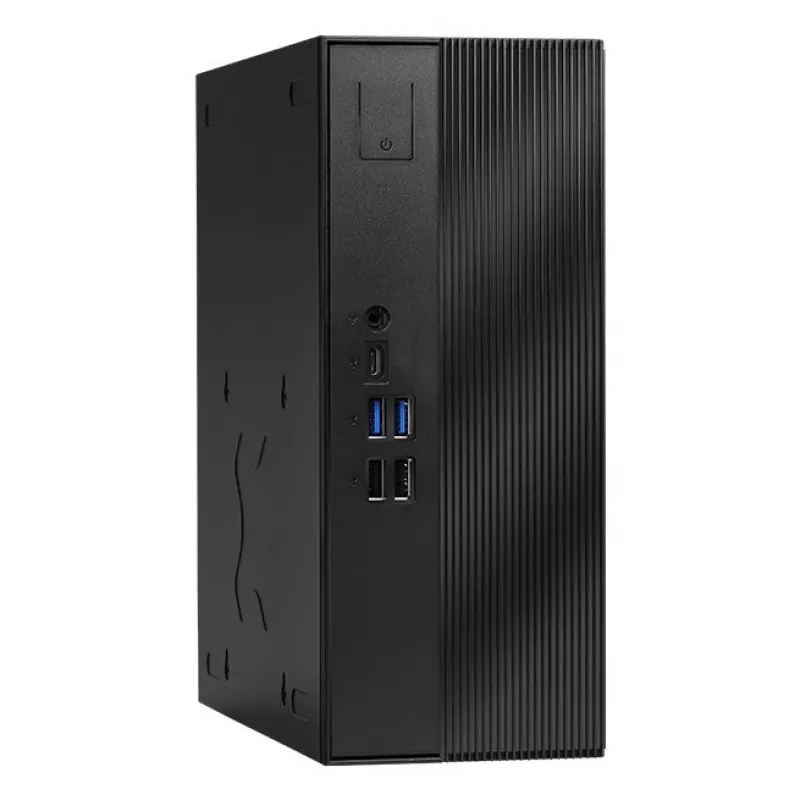

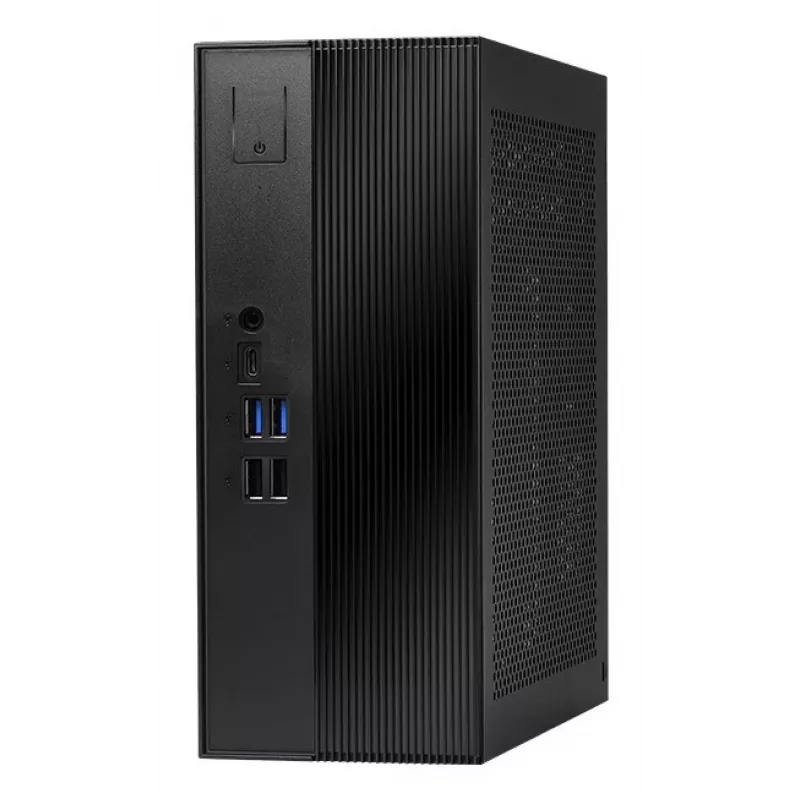

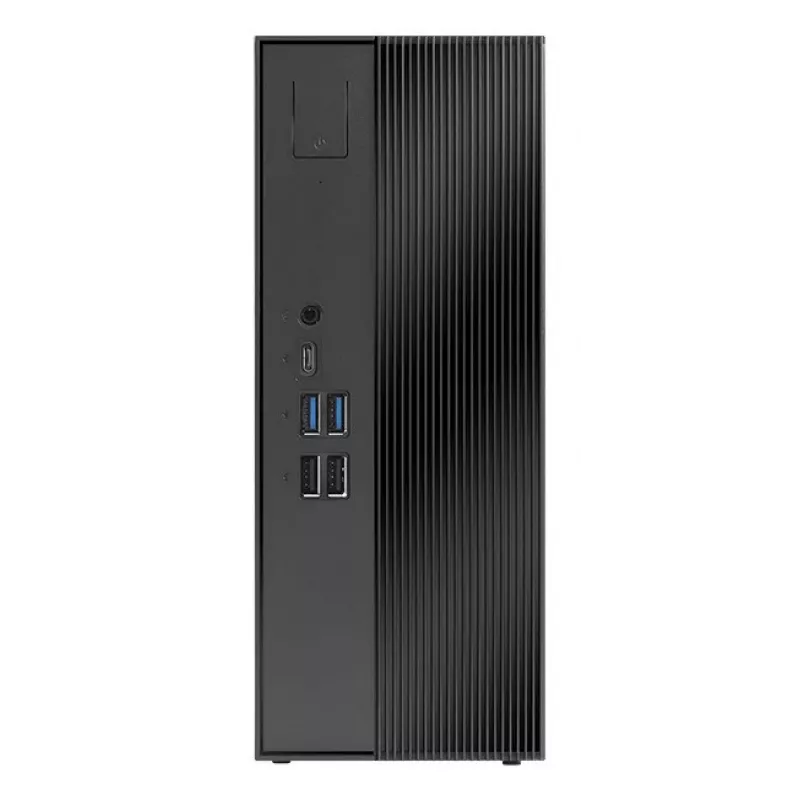

Measuring just 47mm in height, the DeskSlim X600 fits discreetly behind a monitor or under a desk. Its front panel offers USB Type-C and Type-A ports for quick peripheral connections, while the rear provides additional USB ports and display outputs. The Realtek ALC256 audio codec ensures clear sound through the front headphone/mic jack. With VESA mount support (optional kit), it can be attached to the back of a display for an all-in-one feel.

Full specifications

• Form factor: Mini PC / Small Form Factor (SFF)
• CPU socket: AMD AM5 (LGA 1718)
• Chipset: AMD X600
• Memory: 2x DDR5 SO-DIMM slots, max 96GB
• Storage: 1x M.2 2280 PCIe Gen5 x4, 1x M.2 2280 PCIe Gen4 x4, 2x 2.5" SATA
• Graphics: HDMI 2.1, DisplayPort 1.4, D-Sub (VGA)
• LAN: Realtek RTL8111H Gigabit Ethernet
• USB: 1x USB 3.2 Gen1 Type-C (front), 1x USB 3.2 Gen1 Type-A (front), 2x USB 3.2 Gen1 Type-A (rear), 2x USB 2.0 Type-A (rear)
• Audio: Realtek ALC256 codec, front headphone/mic jack
• Power: 120W/19V DC adapter (included)
• VESA mount: Yes (optional kit required)
• OS support: Windows 10/11 64-bit

Final note

A flexible barebone for custom builds, offering modern connectivity and PCIe Gen5 storage in a space-saving design.
