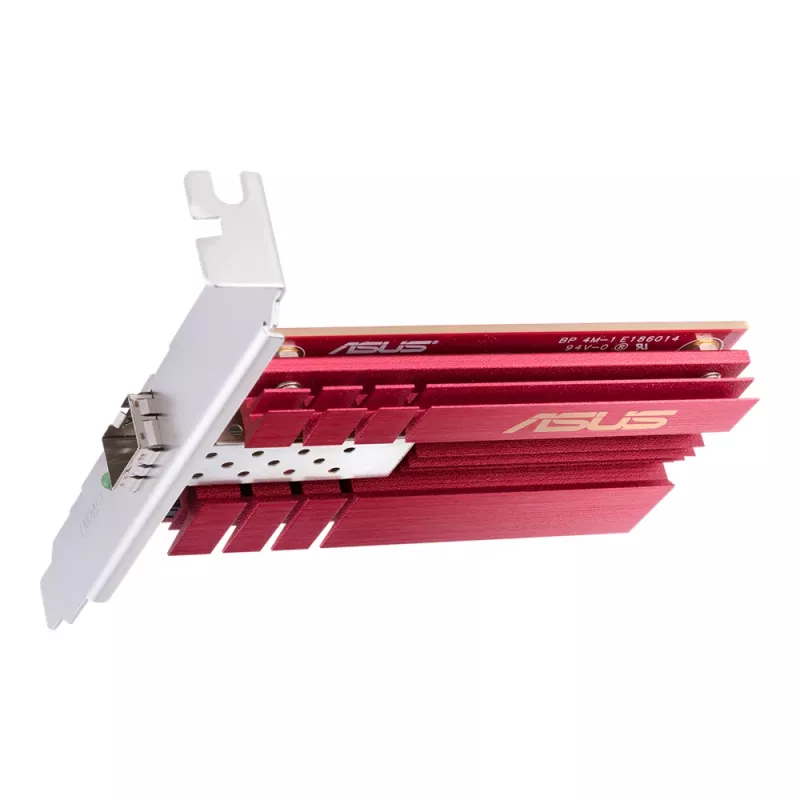

ASUS XG-C100F interná optika 10000 Mbit/s

The ASUS XG-C100F is an internal fiber network card that provides hyper-fast 10Gbps networking through SFP+ ports. It installs in a PCI Express x4 slot and supports fiber-optic or DAC cable connections for high-bandwidth data transfers, 4K streaming and low-latency online applications. The card includes an aluminum heatsink and conforms to networking standards such as IEEE 802.1Q, IEEE 802.1p and IEEE 802.3ae.

Advantages

Offers up to 10 000 Mbit/s throughput over SFP+ fiber or DAC connections, enabling transfers up to ten times faster than gigabit Ethernet. Compatibility with modern fiber-optic infrastructure allows long-distance, high-bandwidth links suited to demanding environments. The integrated aluminum heatsink helps maintain thermal stability during sustained high loads, while built-in Quality of Service (QoS) prioritizes critical traffic automatically.

Suitable for

• Large file transfers in workstations and servers
• 4K video streaming and media production workflows
• Low-latency online gaming and latency-sensitive applications
• Small enterprise networks and data center uplinks

Key specifications

• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Interface: SFP+ fiber / DAC (fiber-optic)
• Host interface: PCI Express x4 (PCIe 2.0/3.0 compatible)
• Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ae
• Product colour: Red
• Weight: 0.11 kg
• Manufacturer part number (MPN): 90IG0490-MO0R00
• EAN: 4712900741230

How to use

Power down the PC or server and unplug it. Insert the XG-C100F into an available PCI Express x4 (or larger) slot, secure the card to the chassis, and reconnect power. Install the appropriate drivers supplied by the system or ASUS, then connect SFP+ fiber or DAC cables to the card's SFP+ ports. Configure network settings in the operating system or network management tools and, if needed, enable or adjust QoS settings to prioritize specific traffic.

Recommendations

Use compatible SFP+ fiber modules or DAC cables and ensure fiber transceivers meet your link-distance and wavelength requirements. Install the card in a slot that provides sufficient airflow and verify driver updates from ASUS for optimal performance and stability.
