ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW

The ATEN CS1942DP desktop KVM switch consolidates control of two computers into a single workstation using one USB keyboard, one USB mouse and two DisplayPort monitors. Designed for multimedia workstations and office environments, it supports 4K Ultra HD resolution and provides a compact metal-housed solution to reduce desktop clutter while maintaining high-quality video output.

Advantages

The KVMP switch supports dual DisplayPort outputs with 4K (4096 x 2160) resolution at 60 Hz, enabling clear high-resolution visuals. USB 3.0 ports ensure fast peripheral connectivity and seamless switching. Its robust metal housing and compact footprint offer durability and save desk space. Energy-efficient operation with a 12V DC adapter keeps power consumption low.

Suitable for

• Multimedia workstations requiring dual-monitor output
• Office environments where two computers are managed from one console
• Graphic design and video editing tasks that need 4K display support
• IT management and control rooms with limited desk space

Key specifications

• Model: ATEN CS1942DP-AT-G
• Controlled computers: 2
• Video interface: DisplayPort (dual display)
• Maximum resolution: 4096 x 2160 at 60 Hz
• Keyboard / Mouse ports: USB
• USB: USB 3.0 support for peripherals
• Power: 12V DC adapter (included)
• Weight: 2.74 kg
• Colour: Black

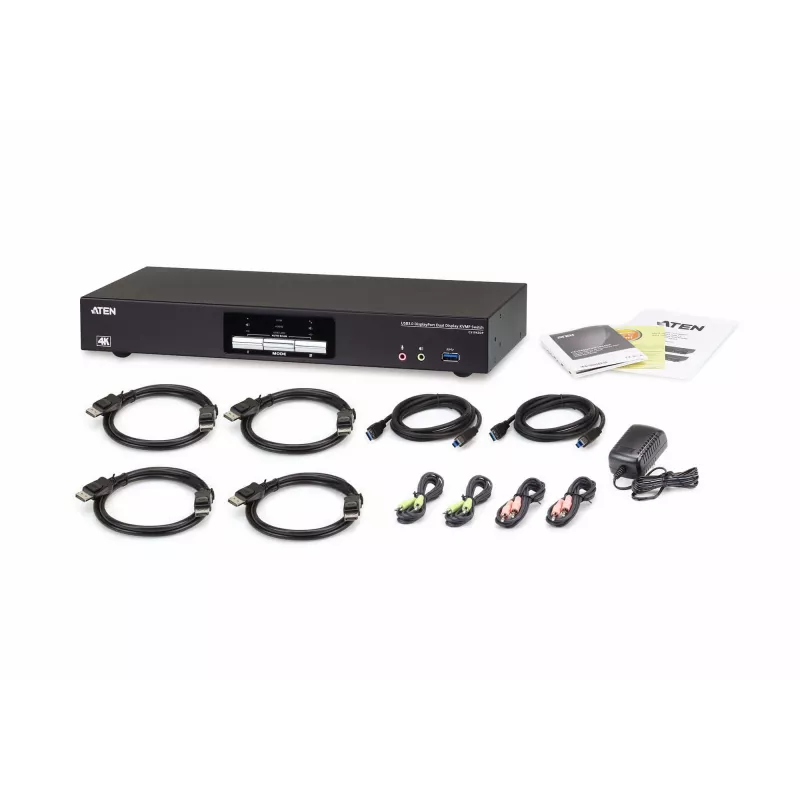

• Included cables and accessories: 4× DisplayPort 1.2 cables, 2× USB 3.0 cables, 4× audio cables, power adapter, user instructions

How to use

Connect each computer to the CS1942DP using the supplied DisplayPort and USB 3.0 cables for video and peripheral signals. Attach your dual DisplayPort monitors to the switch’s display outputs, and connect a USB keyboard and mouse to the front console ports. Plug in the 12V DC power adapter and follow the user instructions to switch control between the two connected computers using the hardware buttons or keyboard hotkeys.

Recommendations

For optimal 4K performance, use the provided DisplayPort 1.2 cables and ensure source graphics cards support 4K@60Hz. Place the unit on a stable surface with adequate ventilation and keep firmware and drivers on connected computers up to date for best compatibility.
